ACT 1 meter Singlemode 9/125 OS2 Polarity Twist Uniboot Duplex optický patch kábel s CS - LC konektormi

The ACT 1 meter Singlemode 9/125 OS2 Polarity Twist uniboot duplex fiber patch cable with CS - LC connectors is a slim duplex fiber cable designed for high-speed data transmission in data centers and telecommunications environments. It uses a 9/125 µm singlemode OS2 fiber core and features a CS connector on one end and an LC Polarity Twist™ uniboot connector on the other, allowing rapid polarity changes and compatibility with QSFP and OSFP optics.

Advantages

The Polarity Twist™ connector allows the cable polarity to be reversed in seconds without reterminating, saving installation time. The uniboot duplex design and 60% reduced diameter compared to standard patch cables enable higher port density and easier cable management in crowded patch panels. The CS to LC configuration supports high-speed modules and minimizes signal loss thanks to the 9/125 OS2 singlemode fiber.

Suitable for

• Data center patch panels and high-density racks
• Connections to QSFP and OSFP high-speed optics
• Telecommunications equipment and backbone links

Key specifications

• Length: 1 meter
• Fiber type: Singlemode 9/125 µm OS2
• Configuration: Uniboot duplex

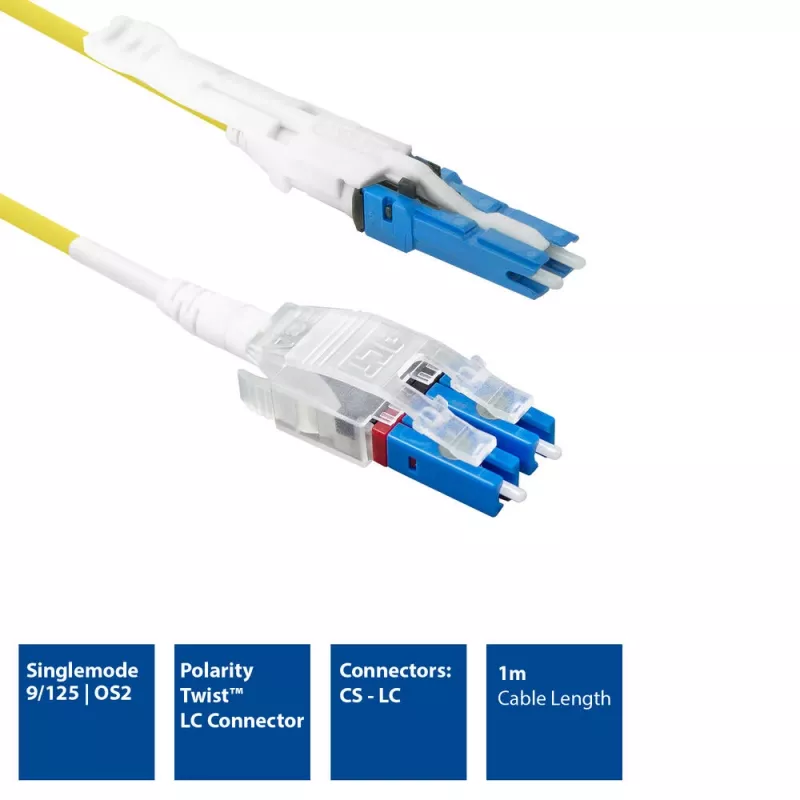

• Connectors: CS to LC Polarity Twist™
• Brand / MPN: ACT / RL1101
• EAN: 8716065529708

How to use

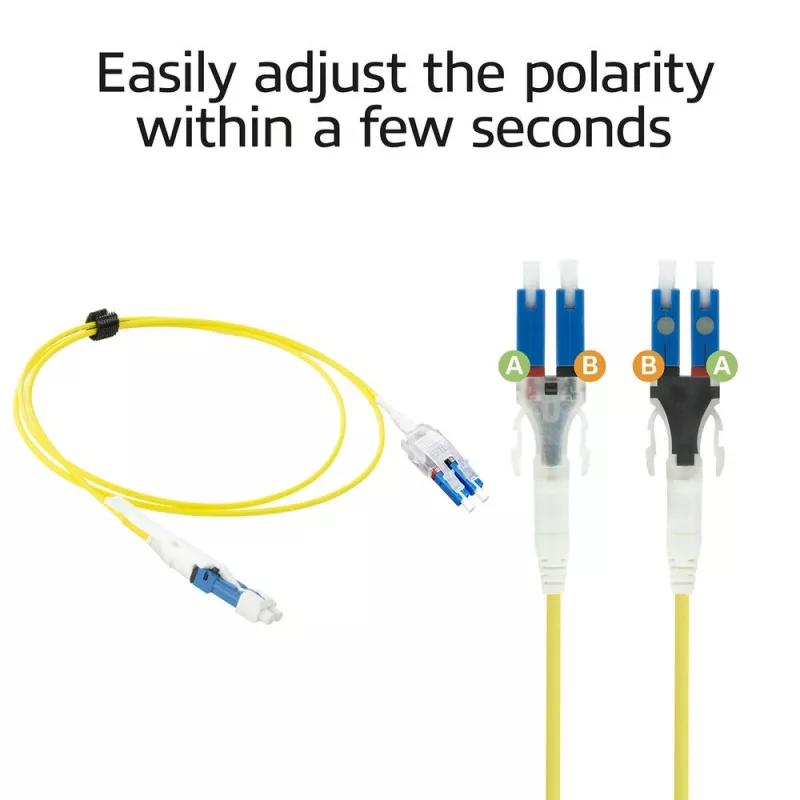

Route the uniboot duplex cable to the required ports, insert the CS connector into the QSFP/OSFP module or adapter, and plug the LC Polarity Twist™ connector into the target LC adapter or transceiver. To change polarity, rotate the LC Polarity Twist™ connector according to the manufacturer instructions until the desired polarity is achieved; no cutting or retermination is required.

Recommendations

For best performance, handle the singlemode 9/125 fiber carefully to avoid tight bends and excessive pulling. Use proper strain relief and follow data center cabling standards for bend radius and routing. Verify polarity and test the link after installation with appropriate optical test equipment.
