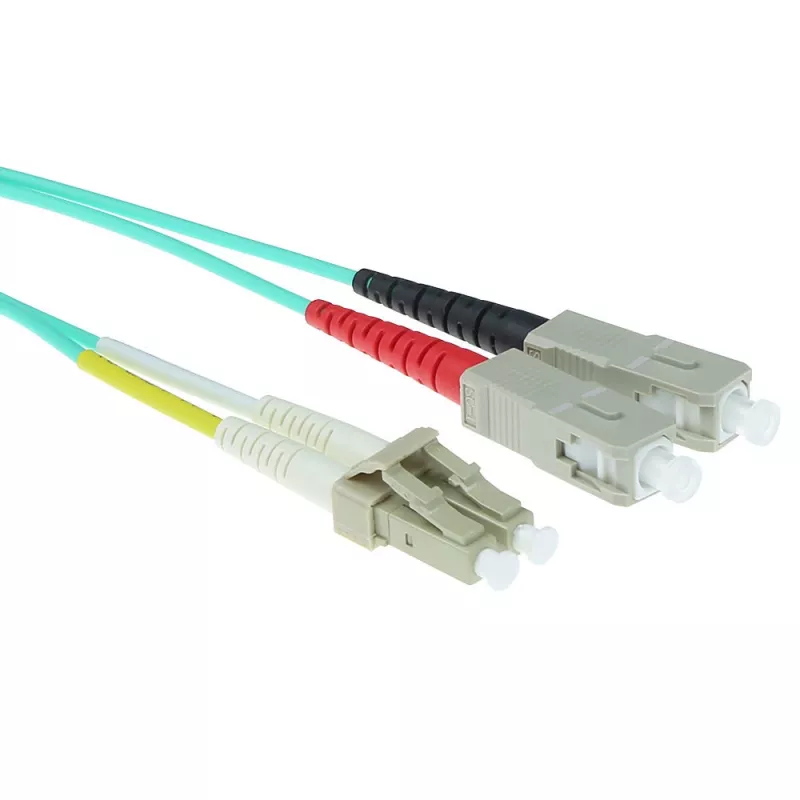

ACT 10 metrov LSZH Multimode 50/125 OM3 optický patch kábel Duplex s LC a SC konektormi

The ACT 10 meter LSZH Multimode 50/125 OM3 fiber patch cable duplex with LC and SC connectors is a duplex multimode fiber link designed for indoor network environments. With OM3 graded 50/125 µm fiber and a 10 m jacket length, this patch cable supports high-speed short‑reach connections between switches, servers, patch panels and transceivers. The LSZH outer jacket reduces toxic fumes and corrosive gases in the event of a fire, making it suitable for data centers, offices and other enclosed spaces where safety requirements are important.

Advantages

The cable combines LC and SC terminations to provide flexible connectivity between equipment with different port types, enabling straightforward integration without adapters in many cases. OM3 multimode fiber supports high bandwidth and is optimized for 10 Gigabit Ethernet and short‑reach 40/100 Gigabit links when used with appropriate transceivers. The duplex format simplifies transmit/receive pairing, and the LSZH jacket enhances fire safety while maintaining durability and bend tolerance for typical installation conditions.

Suitable for

• Interconnecting switches and patch panels in data centers and server rooms
• Connecting network devices in office LAN environments
• Short‑reach multimode links for 10 Gigabit Ethernet
• Fiber patching between LC and SC ports without additional adapters

Key specifications

• Fiber type: Multimode OM3, 50/125 µm
• Length: 10 meters
• Connector configuration: Duplex (two fibers)
• Connectors: LC on one end, SC on the other
• Jacket material: Low Smoke Zero Halogen (LSZH)
• Application: Short‑reach high‑speed data transmission (10 Gbps and compatible multimode links)

How to use

Inspect both connector ferrules for cleanliness before installation and clean if necessary using appropriate fiber cleaning tools. Route the duplex cable along intended pathways avoiding tight bends and mechanical stress; adhere to minimum bend radius guidelines for multimode fiber. Plug the LC connector into the LC port and the SC connector into the SC port until each connector clicks or seats securely. Verify link integrity using network diagnostics or fiber test equipment and label both ends if required for identification in patching infrastructure.
