ACT 100 metrov multimódový 50/125 OM4 vnútorný/vonkajší kábel 4 vlákna s LC konektormi

What are pre-terminated fiber optic cables?
ACT pre-terminated cables are ready-to-use fiber optic installation cables with attached connectors. Pre-terminated fiber optic cables are used to connect different rooms, floors or buildings.
The advantage of using pre-terminated cables is that no investment is needed in tools or test equipment, since the connectors are pre-set and each pre-terminated cable is individually tested after production and provided with a test report.

What are pre-terminated cables used for?
With ACT pre-terminated cables you can easily install a fiber optic cable without the use of tools. Ideal for the system integrator, installer or network administrator who wants to build a high quality and reliable network.

What makes ACT pre-terminated cables so universal?
ACT pre-terminated cables can be used both indoors and outdoors and are suitable for horizontal and vertical use. This means that ACT pre-terminated cables are suitable for several applications:
- Connecting two buildings on a site.
- Installing a cable between different floors.
- Connecting different rooms in a building.
ACT pre-terminated cables comply with the Dca Euroclass of the European Construction Products Regulation (CPR).

Why choose ACT pre-terminated fiber optic cables?
ACT pre-terminated cables are high quality cables. If you choose ACT pre-terminated cables you never have to worry about the quality of your cabling.
ACT pre-terminated cables have excellent optical features. With an average attenuation of 0,1dB and a maximum attenuation of 0,15dB they belong to the top of the market. This means extra leeway in optical budgets and this makes the cables future-proof.

The high-quality construction of ACT pre-terminated cables ensures maximum protection and ease of use. During installation, the vulnerable connectors and fanout cables are optimally protected by a transparent tube on both sides. Due to the robust construction and drawbar eye, the whole can handle up to 350N pulling force. In addition, the protective hose is only 18mm in diameter, making the cable easy to install and it fits through tubes.

Correct installation and correct use of the ACT pre-terminated cables is of great importance. Information about installation and use can easily be found by scanning the QR code on the cable.

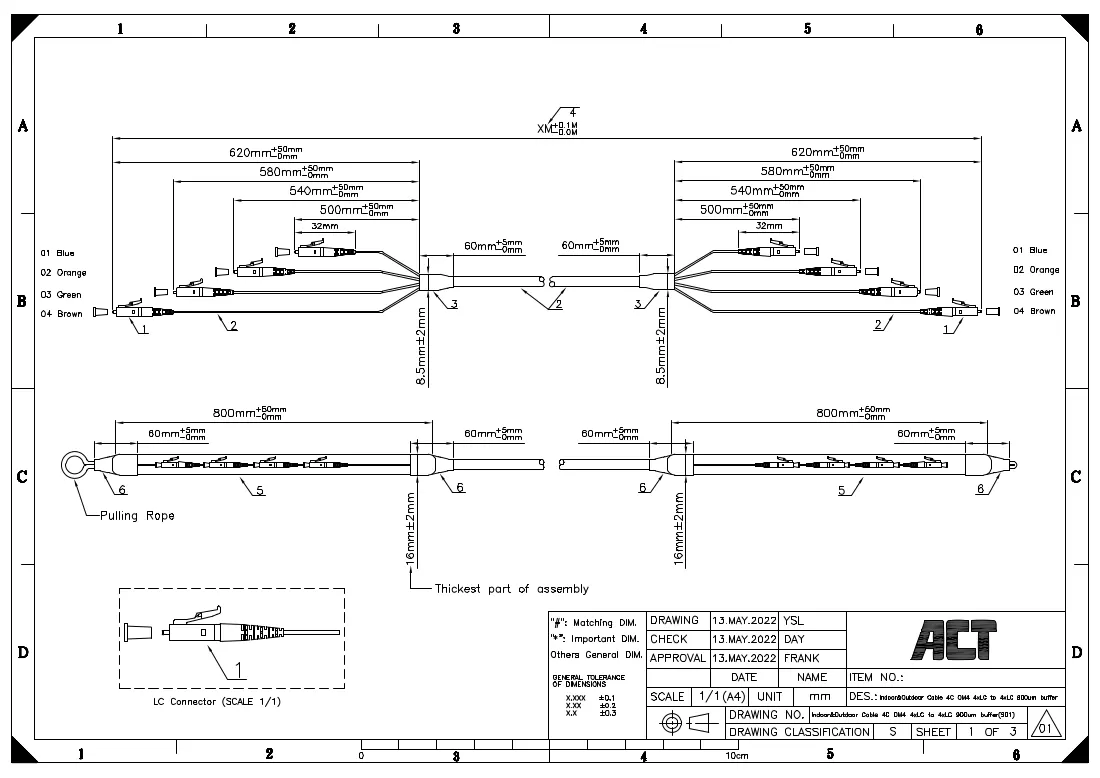

ACT 100 meter Multimode 50/125 OM4 indoor/outdoor cable 4 fibers with LC connectors. Cable length: 100 m, Fibre optic type: OM4, Connector 1: 4x LC, Connector 2: 4x LC, Core diameter: 50 µm

How to use

Install the ACT pre-terminated cable by routing the protective hose through the desired path and pulling the cable until the connectors reach their connection points. Remove the transparent protective tube only when making the final connection. Connect LC connectors to the matching LC ports and verify links using your network equipment. Scan the QR code on the cable to access installation instructions and the factory test report for the specific unit.

Recommendations

Handle the pre-terminated connectors and fanout with care during installation; keep the transparent protector in place until final connection, avoid exceeding the 350 N pulling limit, and ensure compatibility with LC multimode ports and OM4 optical budgets when planning links.
