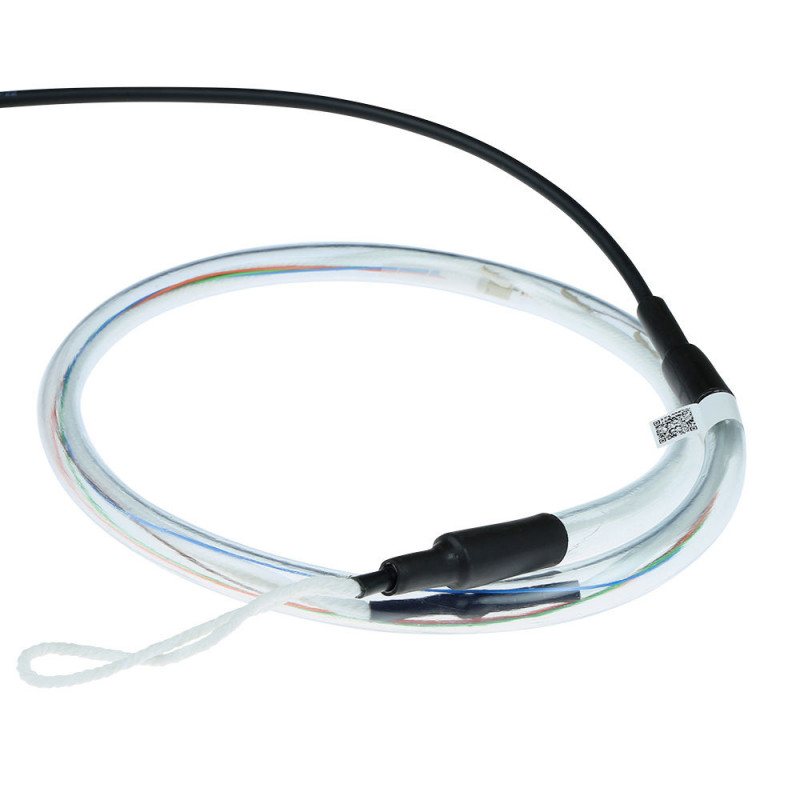

ACT 120 m multimód 50/125 OM4 vnútorný/vonkajší kábel 12 vlákien s LC konektormi (RL4712)

For data centre technicians and enterprise network engineers who need a reliable, high-bandwidth link between buildings or across large facilities, this pre-terminated fiber optic cable delivers 12 multimode OM4 fibers in a rugged indoor/outdoor rated jacket. At 120 meters, it is ideal for backbone connections, campus networks, and long-haul runs within a facility.

Key specifications

• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Fiber count: 12
• Length: 120 meters
• Connectors: LC duplex on both ends
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Aqua
• Application: Indoor/Outdoor
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Attenuation: ≤ 2.5 dB/km @ 850 nm, ≤ 0.8 dB/km @ 1300 nm
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to +70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Why choose it

OM4 fiber supports 10G, 40G, and 100G Ethernet, making it future-proof for high-speed networks. The LSZH jacket ensures low smoke and toxicity in case of fire, suitable for indoor use, while the outdoor rating allows direct burial or aerial installation. Pre-terminated LC connectors save installation time and reduce the risk of field termination errors.

Ideal use cases

• Data centre backbone cabling
• Campus network links between buildings
• High-speed storage area networks (SAN)
• Long-distance runs in industrial environments

Good to know

The cable is supplied as a single continuous length with connectors already attached, ready for immediate deployment. The aqua jacket is standard for OM4 multimode fiber, aiding identification in cable trays.
