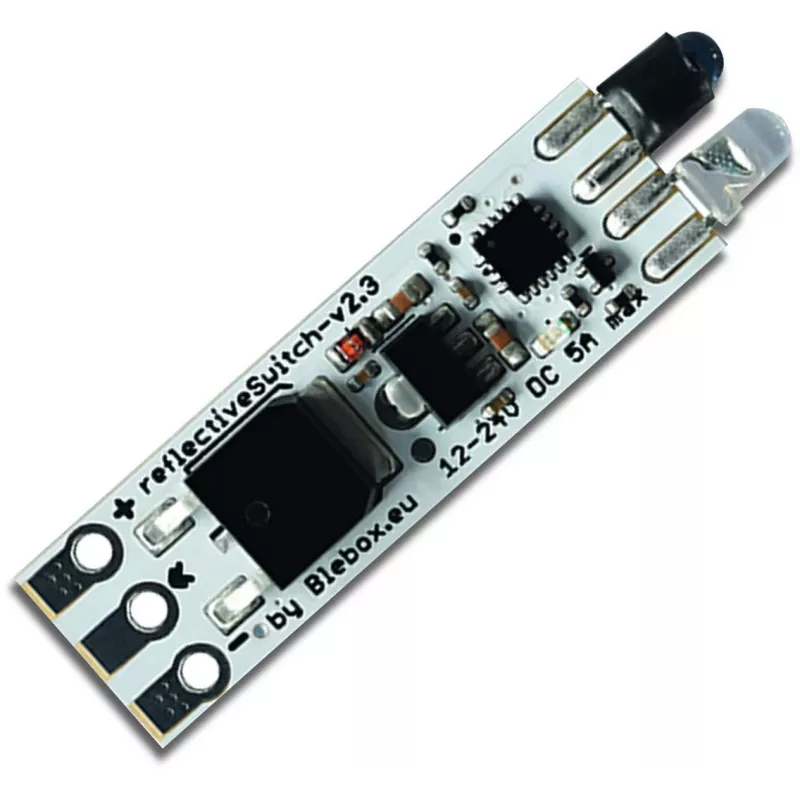

BLEBOX reflectiveswitch Wi-Fi reflexný IR približovací senzor

The BLEBOX reflectiveswitch is a smart Wi-Fi reflective infrared proximity sensor designed for reliable object detection in automation systems. It features adjustable detection range from 1 to 10 cm and a potential-free relay output, making it ideal for presence detection, counting, and triggering actions in smart home and industrial applications.

Advantages

Easy to install and configure via the wBox app, with support for schedules, scenes, and event logging. The sensor offers adjustable sensitivity and OTA firmware updates for future-proof operation. Its compact surface-mount design fits seamlessly into any environment.

Suitable for

• Presence detection in smart home automation
• Object counting on conveyor belts or production lines
• Triggering lights, alarms, or notifications
• Integration with Home Assistant, MQTT, and open API systems

Key specifications

• Connectivity: Wi-Fi 2.4 GHz (802.11 b/g/n)
• Sensor type: Reflective Infrared (IR) Proximity
• Detection range: 1-10 cm (adjustable)
• Power supply: 12-24V DC
• Output: 1x potential-free relay (NO/NC), max 1A / 24V DC
• Operating temperature: -20°C to 50°C
• Protection rating: IP20
• Housing material: ABS plastic
• Mounting type: Surface mount
• Power consumption: <1W (standby)
• Security: WPA2-PSK, TLS
• Processor: ESP32-based

Recommendations

For optimal performance, ensure the sensor is mounted on a stable surface and the detection area is free from obstructions. Use a regulated 12-24V DC power supply. Compatible with the wBox app for iOS and Android, as well as web interface and API.
