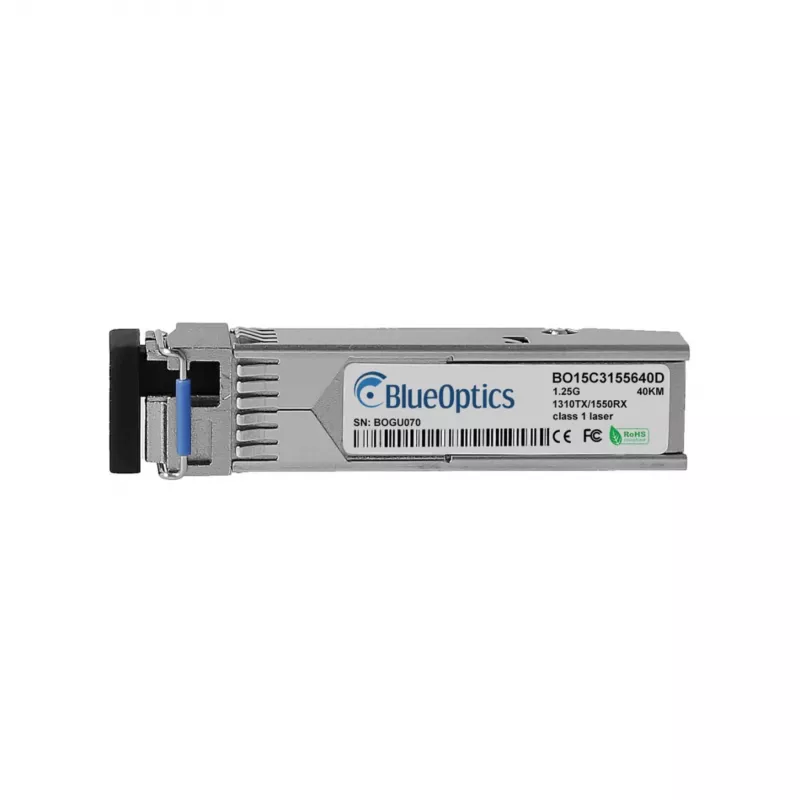

BlueOptics BO15C3155640D Kompatibilný TP-Link SFP-BXU35-40KM SFP transceiver, LC Simplex, 1000BASE-BX-U, 40 km

The BlueOptics BO15C3155640D is a high-performance SFP transceiver designed for compatibility with TP-Link SFP-BXU35-40KM equipment. It operates at 1.25 Gbps over single-mode fiber, supporting 1000BASE-BX-U standard with a transmit wavelength of 1310 nm and receive wavelength of 1550 nm. This BiDi (Bi-Directional) transceiver uses a single-strand fiber via LC simplex connector, enabling cost-effective and efficient network deployments up to 40 km.

Advantages

This transceiver offers reliable connectivity for long-haul applications, featuring Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Its hot-pluggable design ensures easy installation and maintenance without network downtime. The DFB laser transmitter and PIN photo detector provide stable optical performance, while MSA compliance guarantees interoperability with a wide range of networking equipment.

Suitable for

• Enterprise and data center networks requiring long-distance fiber connections
• Telecommunications and ISP infrastructure for point-to-point links
• Upgrading or expanding existing 1000BASE-BX networks
• Applications needing single-strand fiber to conserve cabling

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-BX-U
• Wavelength (Tx/Rx): 1310 nm / 1550 nm
• Max Distance: 40 km
• Connector: LC Simplex
• Fiber Type: Single-mode (SMF)
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 1W
• Hot-Pluggable: Yes

Recommendations

For optimal performance, pair this transceiver with a compatible TP-Link switch or router that supports SFP modules. Ensure the fiber cable is single-mode with LC connectors. This module is ideal for point-to-point links where only one fiber strand is available.
