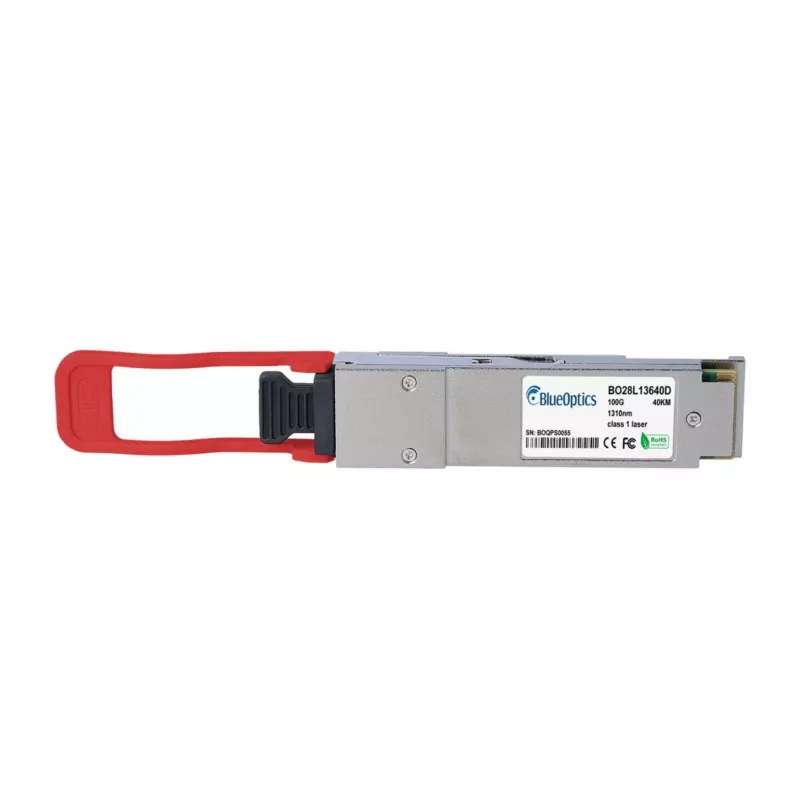

BlueOptics BO28L13640D QSFP28 transceiver 100GBASE-ER4 40km LC Duplex jednovidové vlákno

The BlueOptics BO28L13640D is a high-performance QSFP28 optical transceiver designed for 100 Gigabit Ethernet applications. It supports the 100GBASE-ER4 standard over single-mode fiber (SMF) with a reach of up to 40 km. This hot-pluggable module features an LC duplex connector and internal LAN WDM (LWDM) technology, utilizing four wavelengths for efficient data transmission. Ideal for data center interconnects and telecom networks, it offers reliable, high-speed connectivity with low power consumption.

Advantages

This transceiver delivers exceptional performance for long-reach 100G connections. Its compact QSFP28 form factor ensures high port density, while the internal WDM technology reduces fiber usage. With support for Digital Diagnostic Monitoring (DDM/DOM), network administrators can monitor real-time parameters for proactive maintenance. The module is MSA compliant and compatible with a wide range of networking equipment.

Suitable for

• 100 Gigabit Ethernet links in data centers and enterprise networks
• Telecom service provider networks requiring long-reach 40 km connections
• Interconnecting switches, routers, and servers over single-mode fiber

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-ER4
• Connector Type: LC Duplex
• Fiber Type: Single-Mode Fiber (SMF)
• Max Distance: 40 km
• Wavelengths: 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm (LAN WDM)
• Power Consumption: < 4.5W (Typical)
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DDM/DOM Support: Yes
• Compliance: MSA, IEEE 802.3ba 100GBASE-ER4

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure compatible 100GBASE-ER4 ports. This module is designed for extended reach applications and should not be used for short-range multimode links.
