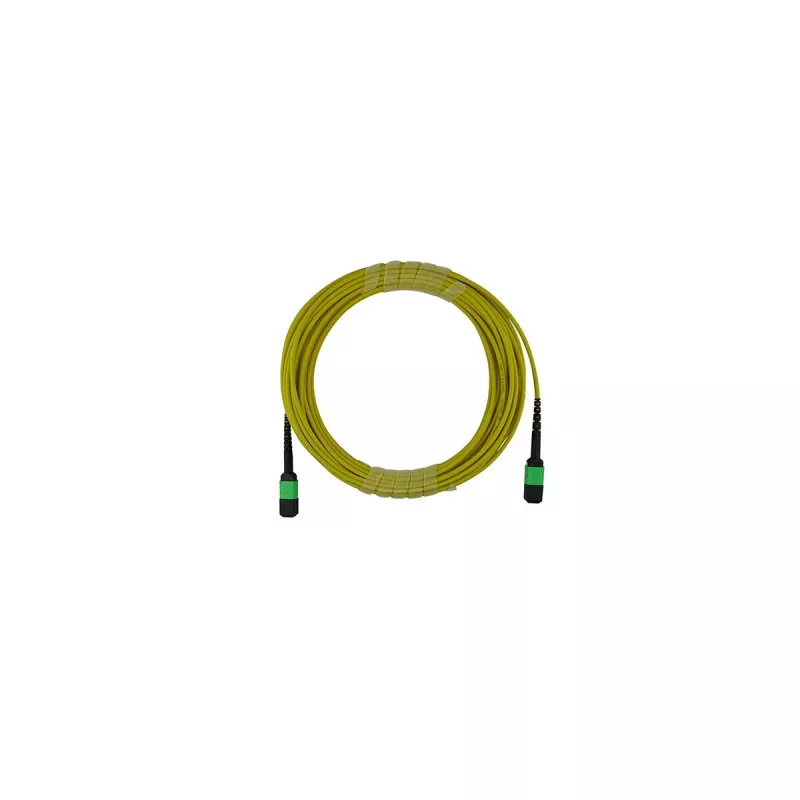

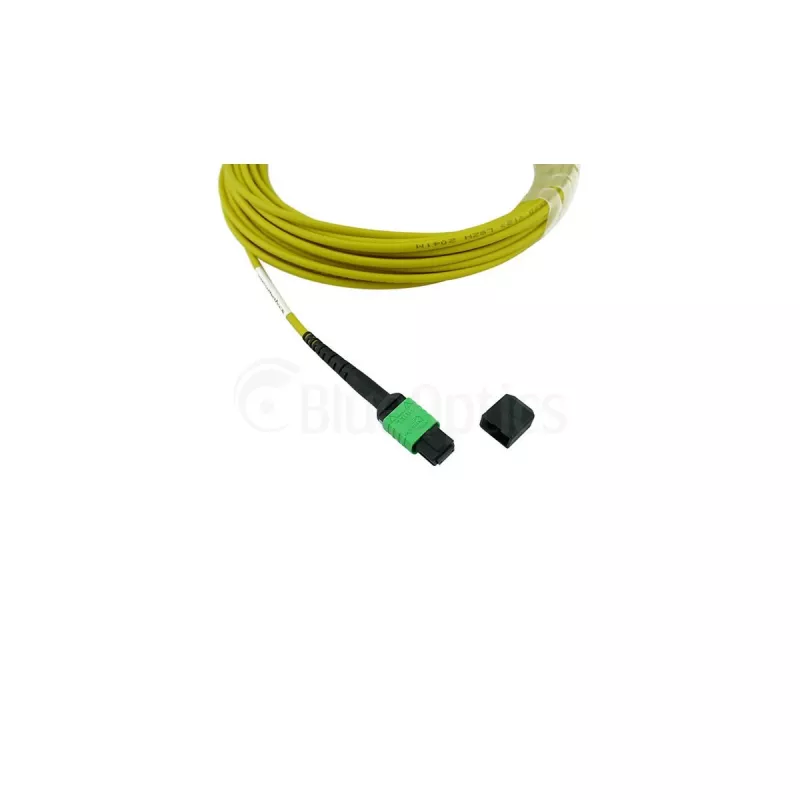

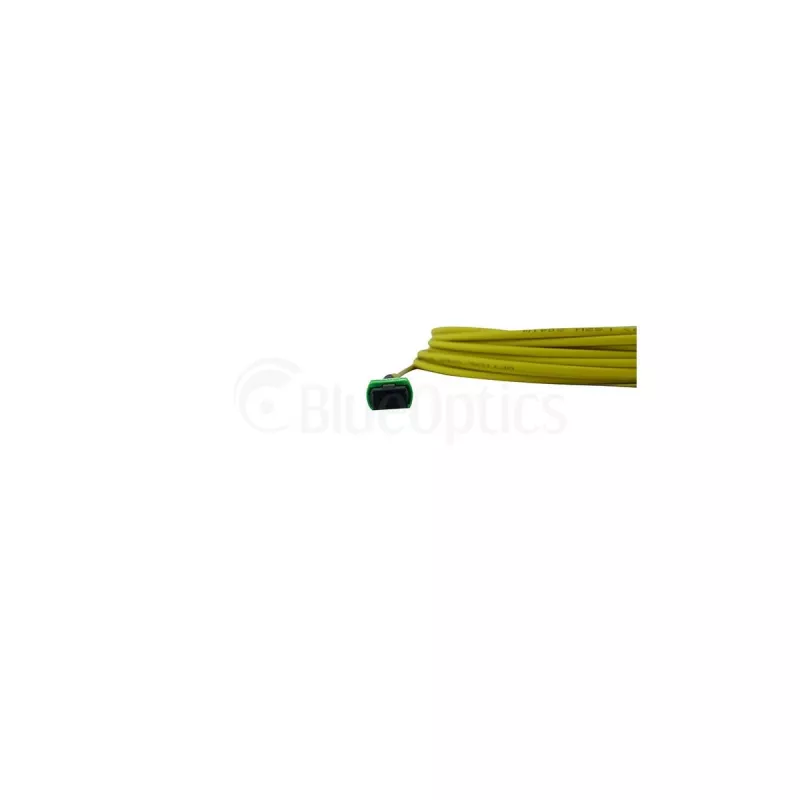

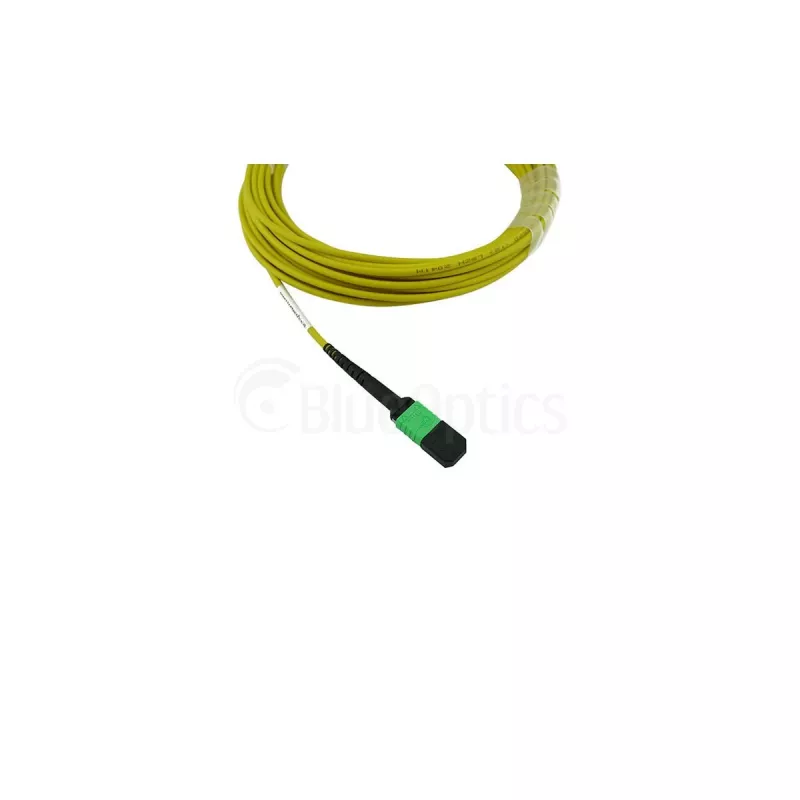

BlueOptics Cisco CB-M12-M12-SMF20M MPO na MPO Singlemode optický patch kábel, 20 m, G.657.A1, APC, 12 vlákien, žltý

The BlueOptics Cisco CB-M12-M12-SMF20M is a high-performance MPO to MPO single-mode fiber patch cable designed for demanding data center and telecommunications environments. With a length of 20 meters and 12-fiber configuration, this trunk cable ensures reliable, high-speed connectivity for your network infrastructure. Manufactured to ITU-T G.657.A1 bend-insensitive standards, it offers superior flexibility and durability, making it ideal for high-density cabling applications.

Advantages

This cable provides exceptional signal integrity with low insertion loss (≤0.35 dB) and high return loss (≥60 dB), ensuring minimal signal degradation. The APC polish reduces back reflection, enhancing performance in high-speed networks. Its bend-insensitive design allows for tighter bends without compromising signal quality, simplifying installation in confined spaces. Compatible with Cisco systems, it guarantees seamless integration into existing networks.

Suitable for

• Data center interconnects
• High-density cabling in server rooms
• Telecommunications infrastructure
• Fiber-to-the-desk (FTTD) applications
• Any environment requiring reliable, high-bandwidth single-mode fiber connections

Key specifications

• Cable Type: Fiber Optic Patch Cable, Single-Mode (SMF)
• Connector Type: MPO (Male) to MPO (Male), APC Polish
• Number of Fibers: 12
• Cable Length: 20 meters (65.6 ft)
• Fiber Core/Cladding: 9/125 µm
• Fiber Standard: ITU-T G.657.A1 (Bend-Insensitive)
• Insertion Loss: ≤ 0.35 dB (typical)
• Return Loss: ≥ 60 dB (typical)
• Jacket Color: Yellow
• Polarity: Type B
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO ports with APC polish. Avoid excessive bending beyond the minimum bend radius specified for G.657.A1 fiber. This cable is ideal for use with 40G/100G/400G transceivers and other high-speed optical equipment.
