BlueOptics Duplex LWL patch kábel LC-UPC na LC-APC Singlemode OS2 10 metrov

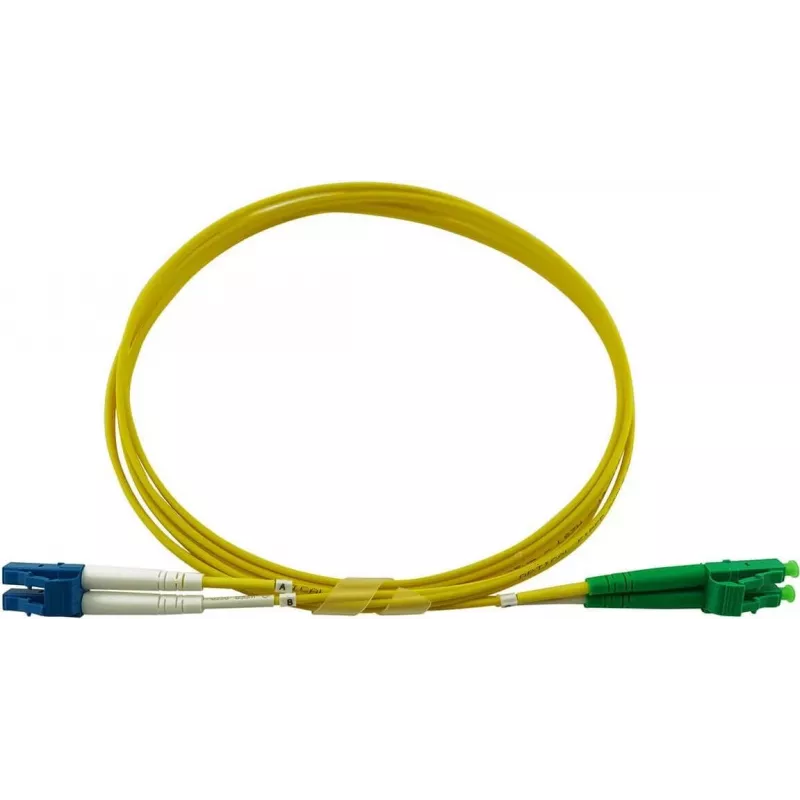

The BlueOptics SFP3131BU10MS is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections. Featuring LC-UPC to LC-APC connectors, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for demanding network environments. With a length of 10 meters and a yellow LSZH jacket, it combines performance with safety.

Advantages

This cable offers excellent signal integrity with maximum insertion loss of ≤0.3 dB and return loss of ≥50 dB (UPC) / ≥60 dB (APC). The LSZH jacket reduces toxic fumes in case of fire, enhancing safety in indoor installations. Its duplex design supports bidirectional communication, and the 9/125 µm core/cladding ensures compatibility with standard singlemode equipment.

Suitable for

• Data centers requiring high-speed, low-loss connections
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx deployments

Key specifications

• Cable Type: Duplex Fiber Optic Patch Cable
• Fiber Mode: Singlemode OS2
• Connectors: LC-UPC to LC-APC
• Length: 10 m
• Core/Cladding: 9/125 µm
• Jacket: Yellow LSZH, 3.0 mm diameter
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥50 dB (UPC), ≥60 dB (APC)
• Operating Wavelengths: 1310 nm, 1550 nm
• Standards: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC singlemode transceivers and patch panels. Ideal for backbone cabling and high-speed data transmission.
