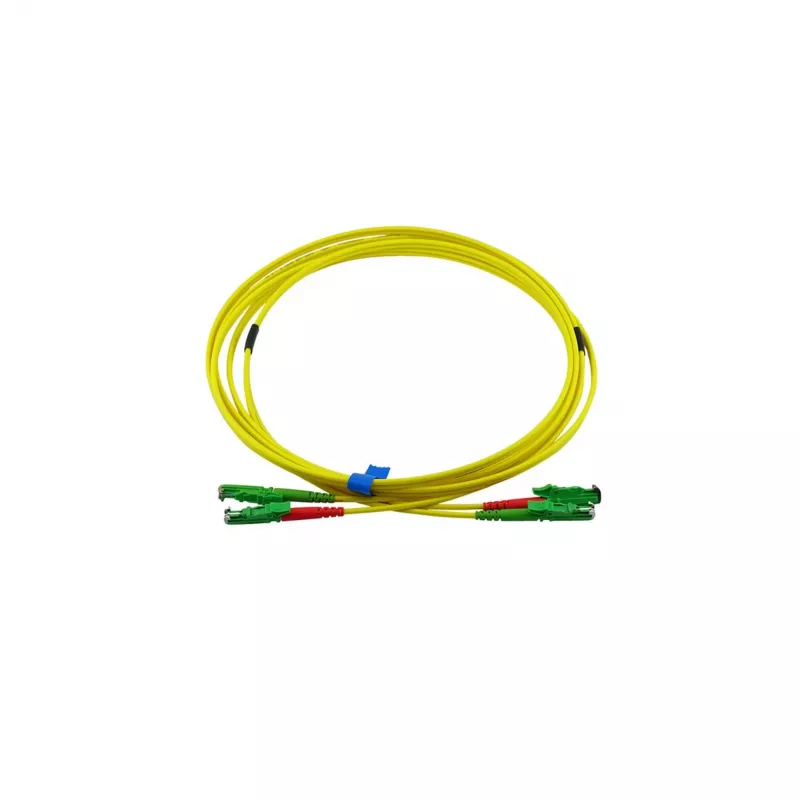

BlueOptics Duplex optický patch kábel, E2000-APC/E2000-APC, Singlemode OS2, 5m, zelený, LSZH

The BlueOptics Duplex Fibre Optic Patch Cable is a high-performance singlemode fibre optic cable designed for reliable data transmission in demanding network environments. Featuring E2000-APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for applications requiring minimal signal reflection. The 5-meter length provides flexibility in connecting devices within racks or between patch panels.

Advantages

This patch cable offers superior signal integrity with typical insertion loss of less than 0.25 dB and return loss greater than 60 dB. The APC (Angled Physical Contact) polish reduces back reflection, enhancing performance in high-speed networks. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by emitting minimal smoke and no toxic halogen gases in case of fire. The green colour aids in easy identification and cable management.

Suitable for

• Data centres requiring high-density fibre connections
• Telecommunications networks
• Local Area Networks (LAN)
• FTTx (Fibre to the x) deployments
• Any singlemode fibre optic application up to 10 Gbps and beyond

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Configuration: Duplex
• Connector Type 1: E2000-APC
• Connector Type 2: E2000-APC
• Connector Polish: APC
• Cable Length: 5 meters
• Jacket Colour: Green
• Jacket Material: LSZH
• Insertion Loss (Typical): < 0.25 dB
• Return Loss (Typical): > 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, IEC 61754-15, TIA/EIA-568-C.3
• Cable Diameter: 3.0 mm (per fiber)

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard E2000-APC interfaces. Suitable for use with SFP, SFP+, and other optical transceivers operating at 1G, 10G, and 40G speeds.
