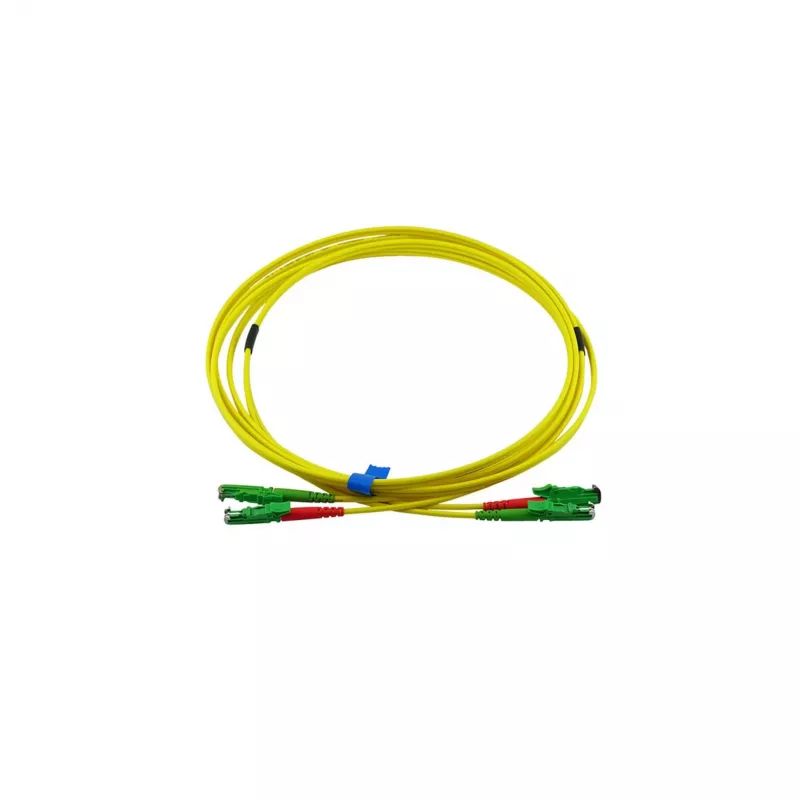

BlueOptics Duplex sklenené vlákno patch kábel, E2000-APC/E2000-APC zelený, 1 meter, Singlemode OS2 E9/125µm

The BlueOptics Duplex Fibre Optic Patch Cable is a high-performance single-mode patch cable designed for reliable and low-loss connections in data centers, telecommunications, FTTx, and LAN networks. Featuring E2000-APC connectors on both ends with green colour coding, this 1-metre cable ensures excellent signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the 3.0 mm diameter cable offers flexibility and durability.

Advantages

This patch cable delivers superior optical performance with APC polish for low back reflection, making it ideal for high-speed single-mode applications. The duplex configuration supports bidirectional communication, and the LSZH jacket reduces toxic fumes in case of fire. The 1-metre length is perfect for short patch panel or equipment connections.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTx (Fiber to the x) deployments
• Local Area Networks (LAN)
• Test and measurement setups

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Mode: Single Mode
• Fibre Class: OS2 (E9/125µm)
• Core/Cladding Diameter: 9/125 µm
• Connector A: E2000-APC
• Connector B: E2000-APC
• Polish Type: APC (Angled Physical Contact)
• Cable Configuration: Duplex
• Cable Length: 1 Meter
• Cable Colour: Green
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 3.0 mm
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard E2000-APC ports. For longer distances, consider BlueOptics patch cables in various lengths.
