BlueOptics Duplex optický patch kábel, LC/UPC na E2000/APC, Singlemode OS2, 2m, LSZH, žltý

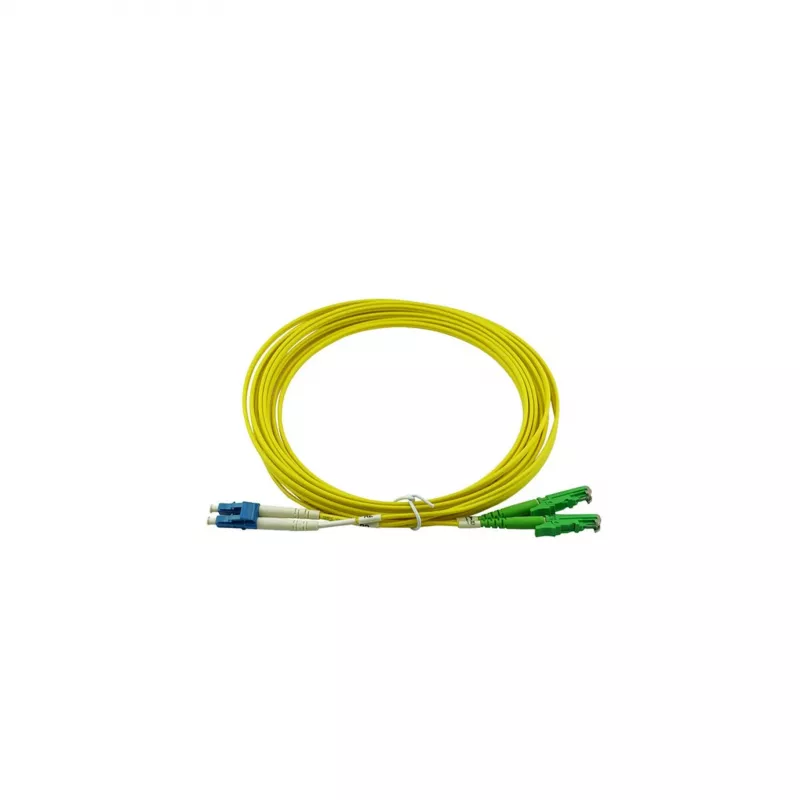

The BlueOptics SFP3138BU2MS is a high-quality duplex fiber optic patch cable designed for reliable singlemode connections. It features LC/UPC connectors on one end and E2000/APC connectors on the other, ensuring low insertion loss and high return loss for optimal signal integrity. The cable is constructed with LSZH (Low Smoke Zero Halogen) jacket material, making it suitable for indoor installations where safety is a priority. With a length of 2 meters, it is ideal for short-distance patching in data centers, telecom rooms, and enterprise networks.

Advantages

This patch cable offers excellent performance with insertion loss ≤0.2 dB and return loss ≥50 dB (LC/UPC) and ≥60 dB (E2000/APC). The duplex configuration supports bidirectional communication, and the LSZH jacket reduces toxic fumes in case of fire. The zirconia ceramic ferrules ensure durability and stable connections.

Suitable for

• Data center patching
• Telecommunications networks
• Enterprise LAN and SAN environments
• FTTx applications

Key specifications

• Fiber Mode: Singlemode OS2 (E9/125µm)
• Connector A: LC/UPC (Blue)
• Connector B: E2000/APC (Green)
• Cable Length: 2 meters
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤0.2 dB
• Return Loss (LC/UPC): ≥50 dB
• Return Loss (E2000/APC): ≥60 dB
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 61754, IEC 61755

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard LC and E2000 ports. Store in a clean, dry environment.
