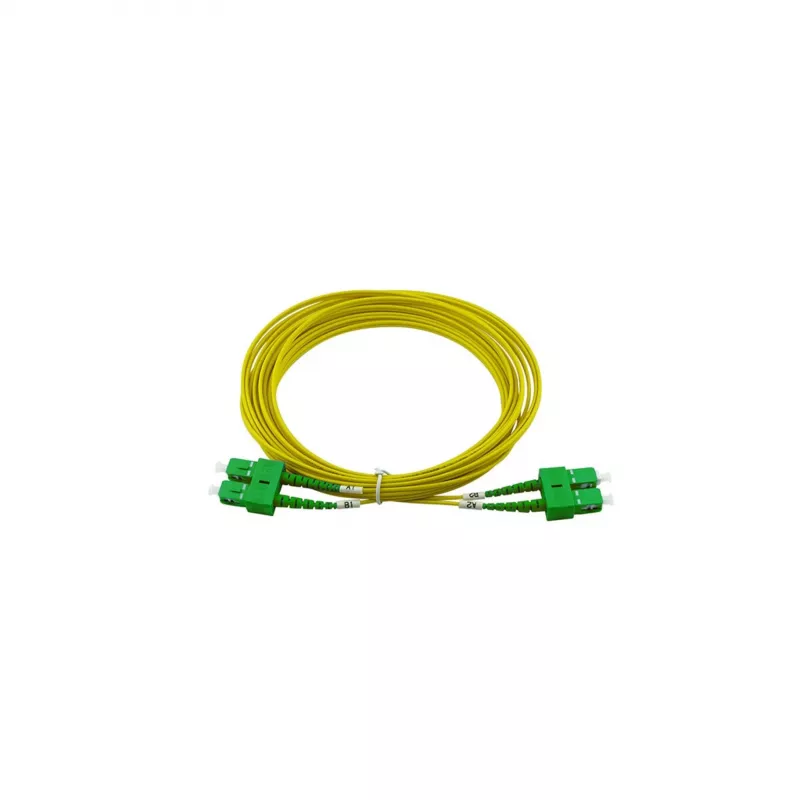

BlueOptics Duplex sklenené vlákno patch kábel SC-APC/SC-APC Singlemode 3 metre

The BlueOptics Duplex Fibre Optic Patch Cable SC-APC/SC-APC Singlemode 3 Metres is a high-performance fibre optic cable designed for reliable data transmission in singlemode networks. With OS2 fibre classification and duplex configuration, this cable ensures low insertion loss and high return loss, making it ideal for demanding telecommunications and data centre applications.

Advantages

This patch cable offers exceptional signal integrity with typical insertion loss of less than 0.3 dB and return loss greater than 60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, while the yellow colour ensures easy identification. Ceramic ferrules guarantee precise alignment and durability.

Suitable for

• Fibre optic network installations requiring singlemode OS2 performance
• Data centres, telecom rooms, and enterprise networks
• Connecting SC/APC terminated devices such as switches, routers, and patch panels
• Applications demanding low attenuation and high return loss

Key specifications

• Cable Type: Fibre Optic Patch Cable
• Fibre Type: Singlemode OS2
• Core/Cladding: 9/125 µm
• Connectors: SC/APC to SC/APC
• Polish: APC (Angled Physical Contact)
• Number of Fibres: Duplex (2 fibres)
• Length: 3 Metres
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Insertion Loss: < 0.3 dB typical
• Return Loss: > 60 dB typical
• Operating Wavelengths: 1310nm, 1550nm
• Attenuation: 0.35 dB/km @ 1310nm, 0.25 dB/km @ 1550nm
• Ferrule Material: Ceramic
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with all standard SC/APC interfaces. Store in a clean, dry environment when not in use.
