BlueOptics Duplex sklenené vlákno patch kábel SC-UPC/SC-APC Singlemode 1 meter

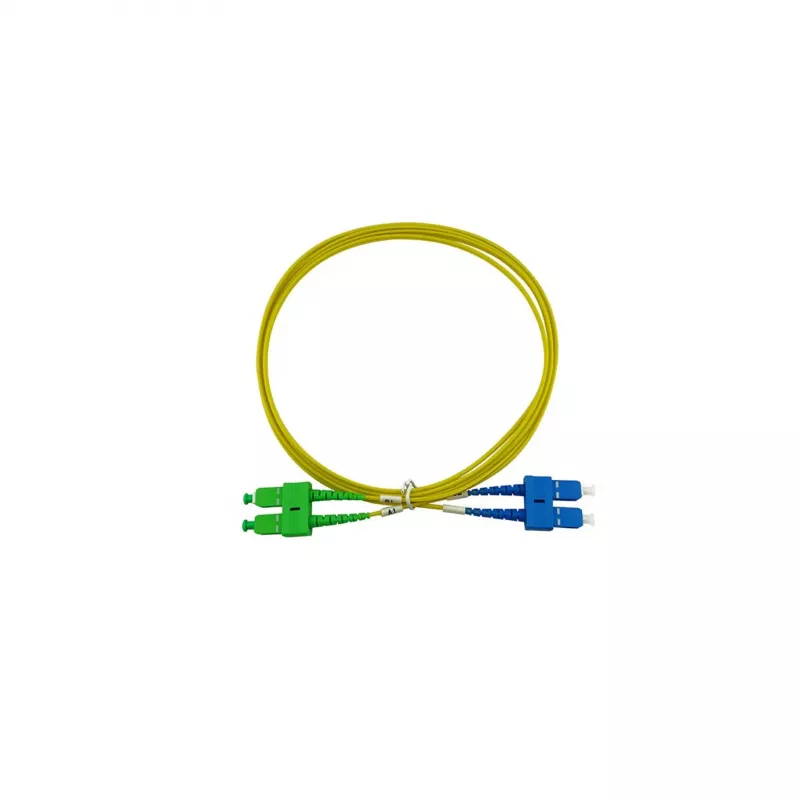

The BlueOptics SFP3232BU1MS is a high-quality duplex fibre optic patch cable designed for reliable singlemode connections. With SC-UPC to SC-APC connectors and a 1-metre length, this OS2-rated cable ensures low insertion loss and high return loss, making it ideal for FTTH, data centres, and telecommunications networks.

Advantages

This cable offers excellent performance with maximum insertion loss of <0.3 dB and return loss >60 dB (APC) / >50 dB (UPC). The LSZH jacket provides safety in enclosed spaces, while the yellow colour ensures easy identification. Duplex configuration supports bidirectional data transmission.

Suitable for

• Fibre optic network installations
• FTTH (Fibre to the Home) applications
• Data centre patching
• Telecommunications infrastructure

Key specifications

• Connector 1: SC-UPC
• Connector 2: SC-APC
• Fibre Mode: Singlemode OS2
• Core/Cladding: 9/125 µm
• Cable Length: 1 m
• Jacket Material: LSZH
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: <0.3 dB
• Return Loss: >60 dB (APC), >50 dB (UPC)
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SC ports and is suitable for indoor use.
