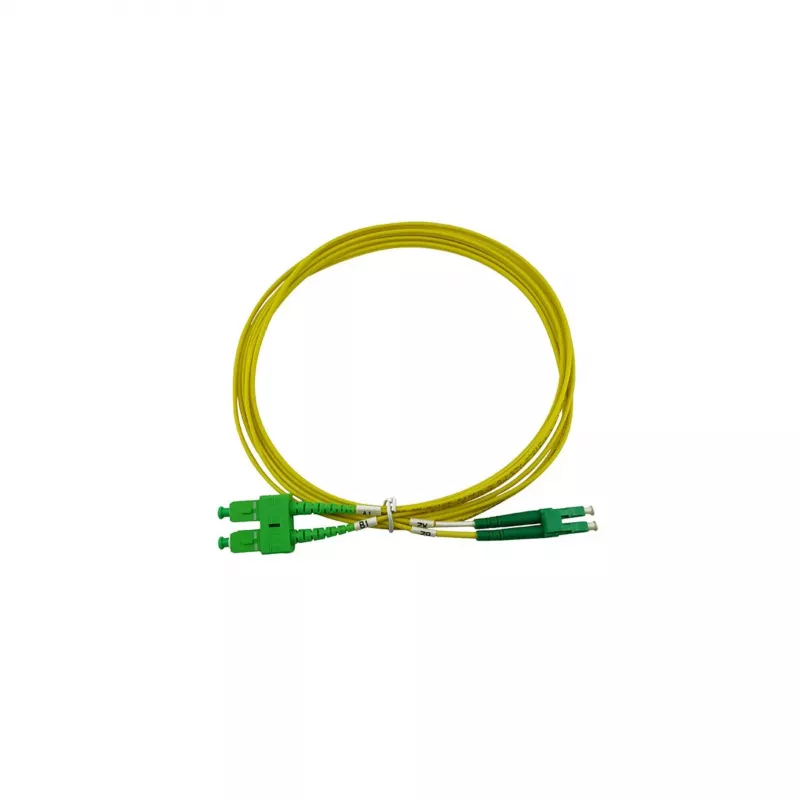

BlueOptics duplexné optické patch kábel LC-APC/SC-APC singlemode 0,5 metra

The BlueOptics Duplex Fibre Optic Patch Cable LC-APC/SC-APC Singlemode 0.5 Metre is a high-performance OS2 fibre optic cable designed for reliable data transmission in data centres, LAN, SAN, and telecommunications networks. With LC/APC to SC/APC connectors and a 0.5 metre length, this cable ensures low insertion loss and high return loss for optimal signal integrity.

Advantages

This patch cable offers exceptional performance with a maximum insertion loss of 0.25 dB and a minimum return loss of 60 dB, ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the 9/125 µm core/cladding diameter supports singlemode transmission over long distances. The durable zirconia ceramic ferrules guarantee reliable connectivity.

Suitable for

• Data centres requiring high-density fibre connections
• Local Area Networks (LAN) and Storage Area Networks (SAN)
• Telecommunications infrastructure
• FTTx and CATV networks

Key specifications

• Cable Type: Duplex Fibre Optic Patch Cable
• Fibre Type: Singlemode (OS2)
• Connector A: LC/APC
• Connector B: SC/APC
• Cable Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Colour: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss (Max): 0.25 dB
• Return Loss (Min): 60 dB
• Polarity: A/B (Cross-over)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is ideal for short-distance patching within racks or between patch panels. Pair with BlueOptics transceivers for guaranteed compatibility.
