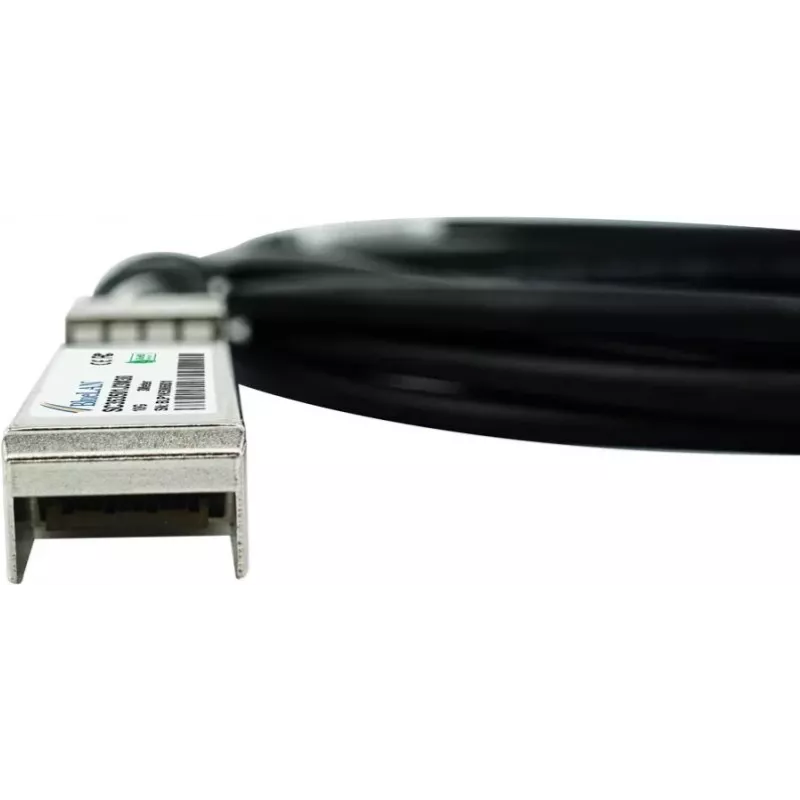

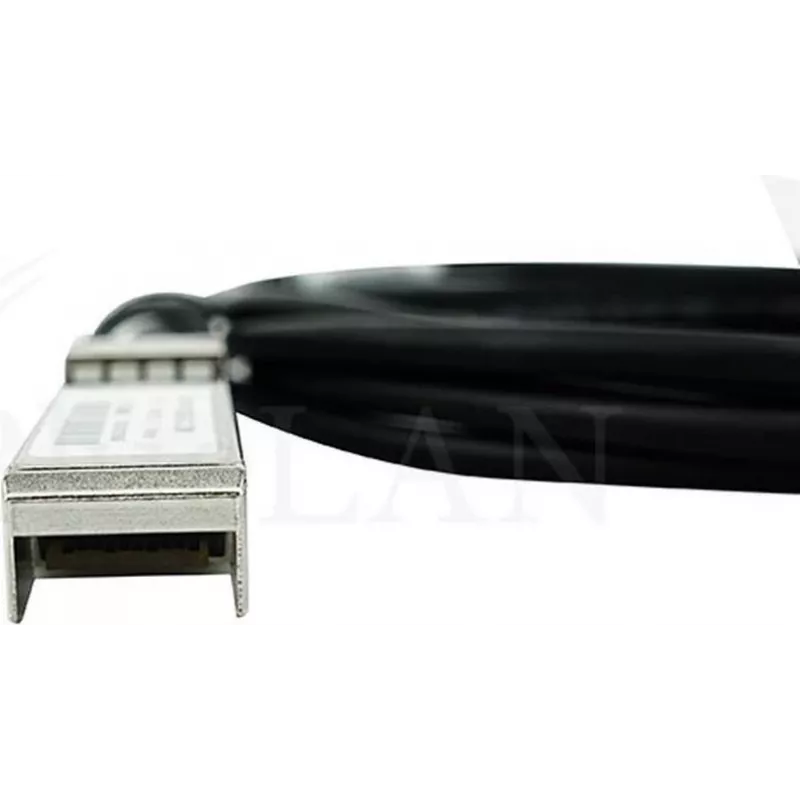

BlueOptics Hirschmann SFP-10-DAC-4m kompatibilný BlueLAN DAC SFP+ Direct Attach kábel, 5m, AWG24

The BlueOptics Hirschmann SFP-10-DAC-4m compatible BlueLAN DAC SFP+ Direct Attach Cable is a high-performance, passive twinax copper cable designed for 10 Gigabit Ethernet connections. With a length of 5 meters (16.4 ft) and AWG24 wire gauge, it provides a reliable and cost-effective solution for short-range network links in data centers and enterprise environments.

Advantages

This direct attach cable eliminates the need for separate transceivers and fiber optic cabling, reducing cost and complexity. It is hot-pluggable and supports 10GBASE-CR standard, ensuring seamless integration with compatible SFP+ ports. The passive design ensures low power consumption (<0.1W) and minimal latency.

Suitable for

• Data center top-of-rack to server connections
• Enterprise network switch to switch links
• High-performance computing clusters
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 10 Gbps
• Ethernet Standard: 10GBASE-CR
• Cable Type: Twinax Copper, Passive
• Connector Type: SFP+ to SFP+
• Wire Gauge: AWG24
• Cable Length: 5 meters (16.4 ft)
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with Hirschmann or compatible SFP+ ports. Ensure the cable is not bent beyond its minimum bend radius to maintain signal integrity.
