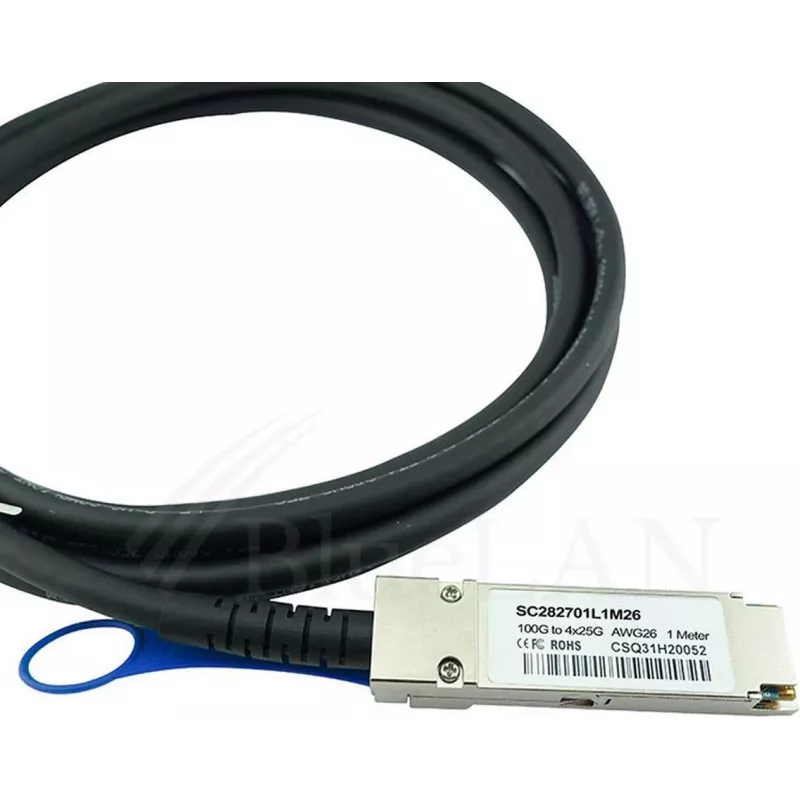

BLUEOPTICS kompatibilný Dell EMC DAC-QSFP-4SFP28-25G-1M BlueLAN pasívny 100GBASE-CR4 QSFP28 na 4x25GBASE-CR SFP28 Direct Attach breakout kábel, 1M, AWG26 (DAC-QSFP-4SFP28-25G-1M-BL)

The BLUEOPTICS Compatible Dell EMC DAC-QSFP-4SFP28-25G-1M is a high-performance passive direct attach breakout cable designed for demanding data center environments. This BlueLAN cable enables seamless connectivity from a 100G QSFP28 port to four 25G SFP28 ports, providing a cost-effective and reliable solution for network aggregation and high-speed interconnects.

Advantages

This breakout cable offers significant advantages over using separate transceivers and fiber optic cabling. It provides a low-power, low-latency, and highly reliable connection with minimal signal loss. The passive copper design ensures energy efficiency and long-term durability, while the breakout configuration allows for flexible deployment in top-of-rack or end-of-row architectures.

Suitable for

• Data center network aggregation
• High-performance computing clusters
• Enterprise network core and distribution layers
• Telecommunications infrastructure
• Any application requiring 100G to 4x25G connectivity

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Cable Type: Passive Copper
• Compatibility: Dell EMC
• Connector A: QSFP28
• Connector B: 4x SFP28
• Aggregate Data Rate: 100 Gbps
• Per Channel Data Rate: 25 Gbps
• Cable Length: 1 Meter (3.3 ft)
• Wire Gauge: AWG26
• Standard (QSFP28 end): 100GBASE-CR4
• Standard (SFP28 end): 25GBASE-CR
• Breakout Configuration: 1x 100G QSFP28 to 4x 25G SFP28
• Material: Copper
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports on your switches or servers support the respective standards. This cable is ideal for short-reach interconnects within a rack or between adjacent racks. Always handle with care to avoid damaging the connectors.
