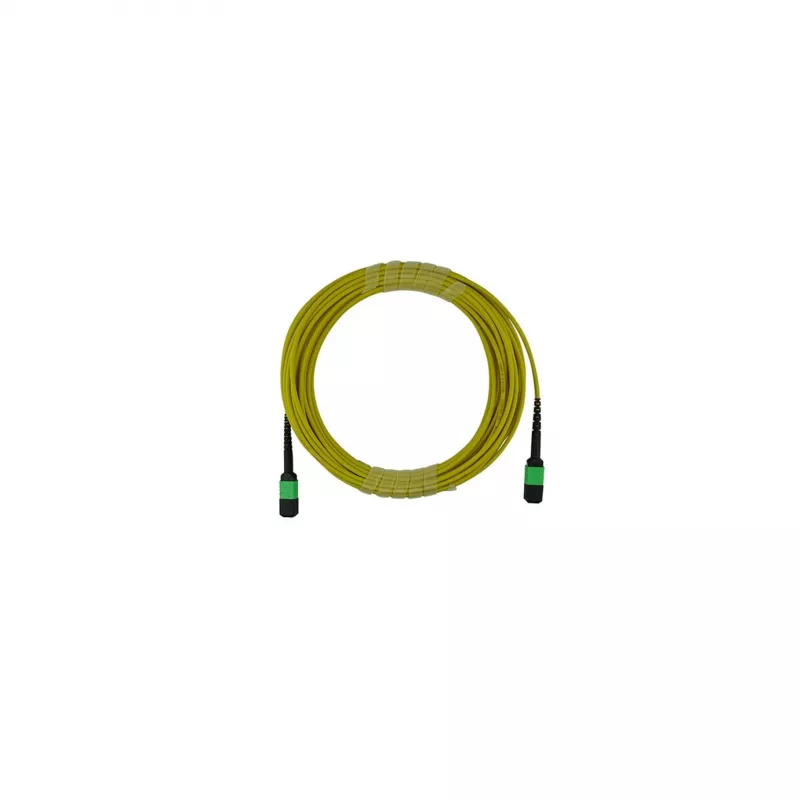

BlueOptics Kompatibilný s NVIDIA 980-9I55B-00N005 MPO/APC na MPO/APC optický trunk kábel, OS2, 5 m

The BlueOptics 980-9I55B-00N005 is a high-performance fibre optic trunk cable designed for compatibility with NVIDIA networking equipment. This MPO/APC to MPO/APC cable provides a reliable and low-loss connection for data centre and high-speed optical network applications.

Advantages

This trunk cable offers excellent signal integrity with low insertion loss and high return loss, ensuring optimal performance in demanding environments. The LSZH jacket provides safety in confined spaces, and the rugged construction ensures long-term durability.

Suitable for

• Data centre interconnects
• High-speed optical networks (e.g., 40G/100G/400G)
• Storage area networks (SAN)
• Telecommunications infrastructure

Key specifications

• Connector Type: MPO/APC (Male) to MPO/APC (Male)
• Cable Length: 5 metres
• Fiber Type: Singlemode OS2
• Fiber Count: 12 Fibers
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Aqua
• Polarity: Type B (Cross-over)
• Insertion Loss (Max): ≤ 0.35 dB
• Return Loss (Min): ≥ 60 dB
• Polishing Type: APC (Angled Physical Contact)
• Cable Diameter: 3.0 mm
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compatibility: NVIDIA 980-9I55B-00N005
• Standards Compliance: TIA/EIA-568-C.3, IEC-61754-7, RoHS, CE

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO/APC ports. This cable is ideal for high-density patching areas and should be handled with care to avoid damage to the connectors.
