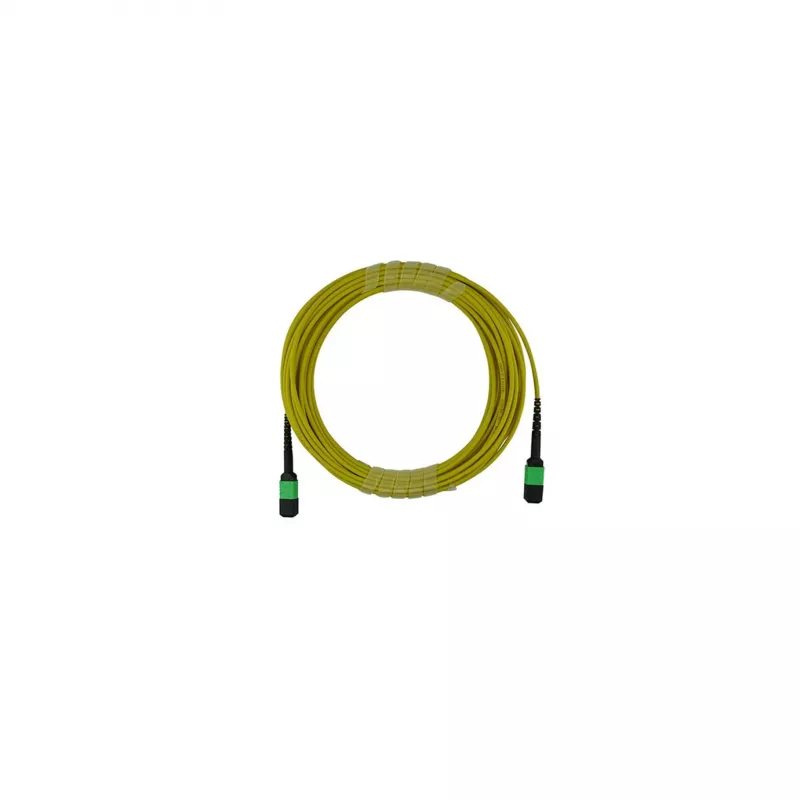

BlueOptics Kompatibilný s NVIDIA MFP7E30-N020 optický trunk kábel, MPO/APC na MPO/APC, Singlemode OS2, 20 m

The BlueOptics Compatible NVIDIA MFP7E30-N020 fibre optic trunk cable is a high-performance, pre-terminated MPO/APC to MPO/APC single-mode OS2 cable designed for demanding data center and high-speed network environments. Engineered to meet the exact specifications of the NVIDIA MFP7E30-N020, this cable ensures seamless integration and reliable performance for 400G/200G/100G Ethernet and InfiniBand applications.

Advantages

This trunk cable offers low insertion loss (max 0.35 dB per connector) and high return loss (min 60 dB), ensuring optimal signal integrity. The LSZH jacket provides safety in confined spaces, while the 8-fibre Type B polarity cross-over design supports parallel optics transceivers. Compatible with NVIDIA equipment, it delivers plug-and-play convenience without compromising performance.

Suitable for

• Data center interconnects
• High-speed Ethernet (400G/200G/100G)
• InfiniBand networks
• Telecommunications and enterprise networking

Key specifications

• Cable Type: Fibre Optic Trunk Cable
• Connector Type A: MPO/APC (Male)
• Connector Type B: MPO/APC (Male)
• Fibre Type: Single-Mode (OS2)
• Fibre Count: 8 Fibres
• Cable Length: 20 Metres
• Fibre Core/Cladding Diameter: 9/125 µm
• Polarity: Type B (Cross-over)
• Insertion Loss (Max.): 0.35 dB per connector
• Return Loss (Min.): 60 dB
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Compatibility: NVIDIA MFP7E30-N020
• Application: 400G/200G/100G Ethernet, InfiniBand, Data Center Interconnects
• Operating Wavelengths: 1310nm, 1550nm
• Connector Ferrule Material: Ceramic
• Compliance: RoHS, CE, TIA/EIA-568, IEC 61754-7

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MPO/APC ports. This cable is ideal for high-density patching in data centers where space and reliability are critical. Pair with BlueOptics transceivers for guaranteed compatibility.
