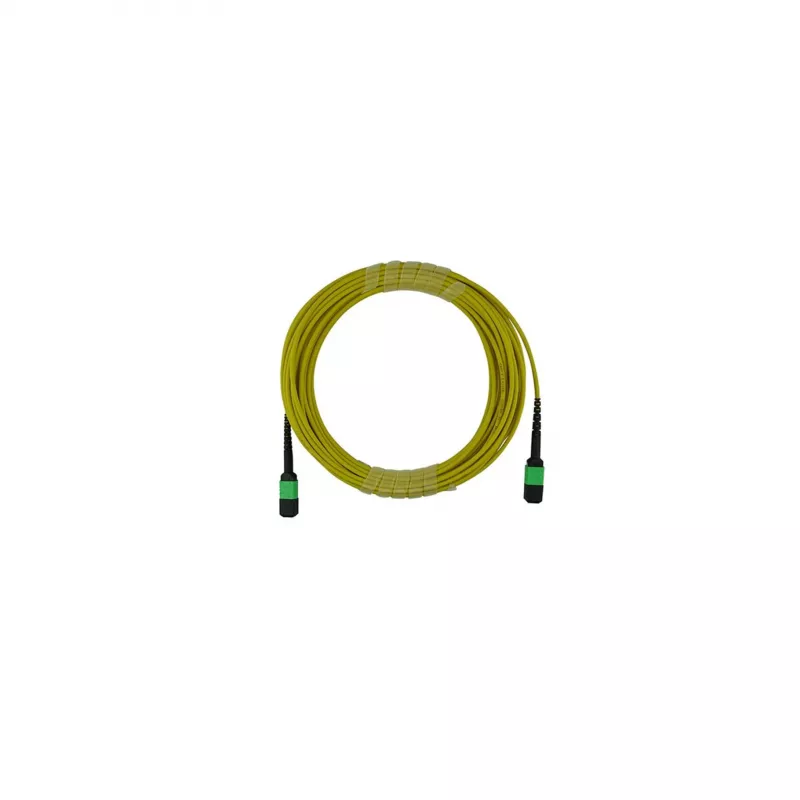

BlueOptics MPO trunk kábel singlemode 12 vlákien 3 m Type B

The BlueOptics MPO trunk cable is a high-performance singlemode fiber optic cable designed for data center and enterprise network applications. With 12 cores and a length of 3 meters, it provides reliable connectivity for high-speed data transmission.

Advantages

This cable features low insertion loss and high return loss, ensuring excellent signal integrity. The LSZH jacket provides safety in enclosed spaces, and the APC polish minimizes back reflection.

Suitable for

• Data center interconnects
• Storage area networks (SAN)
• Local area networks (LAN)
• 40G/100G/400G Ethernet applications

Key specifications

• Cable Type: MPO Trunk Cable
• Fiber Type: Singlemode OS2 (G.652.D)
• Fiber Count: 12 Fibers
• Connector Type: MPO/MTP (Female, Unpinned)
• Polarity: Type B (Cross-over)
• Polishing: APC
• Length: 3 meters
• Jacket Material: LSZH
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.35 dB
• Return Loss: ≥ 60 dB
• Operating Temperature: -20°C to +70°C

Recommendations

For optimal performance, pair this trunk cable with compatible MPO/MTP adapters and ensure proper polarity alignment.
