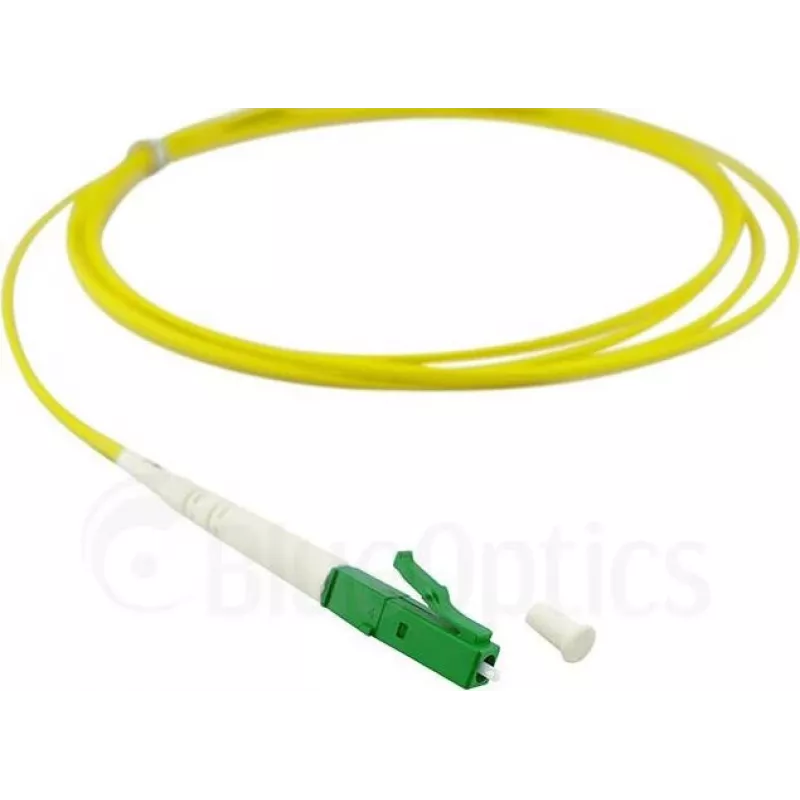

BlueOptics optický patch kábel Simplex LC-APC / LC-APC SM OS2 50,0m žltý

The BlueOptics SFP2121BU50MM is a high-quality fiber optic patch cord designed for reliable single-mode connections. With LC/APC connectors on both ends and a simplex design, this cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication networks. The LSZH jacket provides safety in confined spaces, and the yellow color aids easy identification.

Advantages

This patch cord offers exceptional performance with typical insertion loss ≤0.25 dB and return loss ≥65 dB. The APC polish minimizes back reflection, ensuring signal integrity. The 3.0 mm cable diameter and 30 mm minimum bend radius provide flexibility while maintaining durability. RoHS and CE compliant, it meets industry standards for quality and safety.

Suitable for

• Data centers and server rooms
• Telecommunication networks
• FTTH (Fiber to the Home) installations
• CATV systems
• Local Area Networks (LAN)

Key specifications

• Connector Type: LC/APC to LC/APC
• Fiber Type: Single-Mode (SM) OS2
• Fiber Count: Simplex (1 fiber)
• Cable Length: 50.0 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss: ≤ 0.25 dB (typical)
• Return Loss: ≥ 65 dB (typical)
• Polish Type: APC (Angled Physical Contact)
• Operating Wavelengths: 1310 nm, 1550 nm
• Cable Diameter: 3.0 mm
• Minimum Bend Radius: 30 mm
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3
• Durability: 500 mating cycles

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to maintain bend radius. This cable is compatible with standard LC/APC interfaces.
