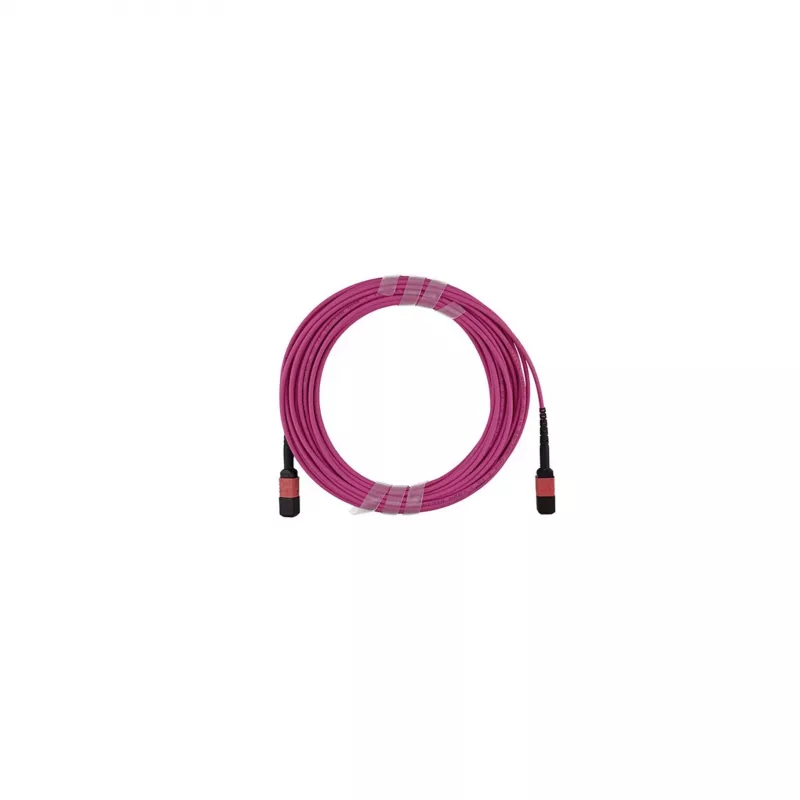

BlueOptics optický trunk kábel, MPO-UPC/MPO-UPC, 40 m, multimódový OM4, Type B, aqua

The BlueOptics fibre optic trunk cable is a high-performance, pre-terminated MPO trunk cable designed for data centre and enterprise network applications. With 12 fibres, OM4 multimode performance, and MPO-UPC connectors on both ends, this cable supports high-speed data transmission up to 100 Gbps over 40 metres. The Type B polarity ensures correct fibre alignment in structured cabling systems.

Advantages

This trunk cable offers easy and quick deployment, reducing installation time and cost. The LSZH jacket provides safety in confined spaces, while the aqua colour indicates OM4 performance. Low insertion loss and high return loss ensure reliable signal integrity.

Suitable for

• Data centre backbone cabling
• Enterprise network infrastructure
• High-speed 40G/100G Ethernet links
• Fibre channel storage networks

Key specifications

• Cable type: Fibre optic trunk cable
• Fibre type: Multimode OM4
• Core/cladding: 50/125 µm
• Connectors: MPO-UPC to MPO-UPC
• Length: 40 metres
• Number of fibres: 12
• Polarity: Type B
• Jacket colour: Aqua
• Jacket material: LSZH
• Data rate support: Up to 100 Gbps
• Wavelengths: 850 nm, 1300 nm
• Insertion loss: < 0.35 dB per connector
• Return loss: > 30 dB (UPC)
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 7.5 mm
• Standards: TIA/EIA-568-C.3, IEC 61754-7

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is ideal for high-density patching areas and should be used with compatible MPO adapters and cassettes.
