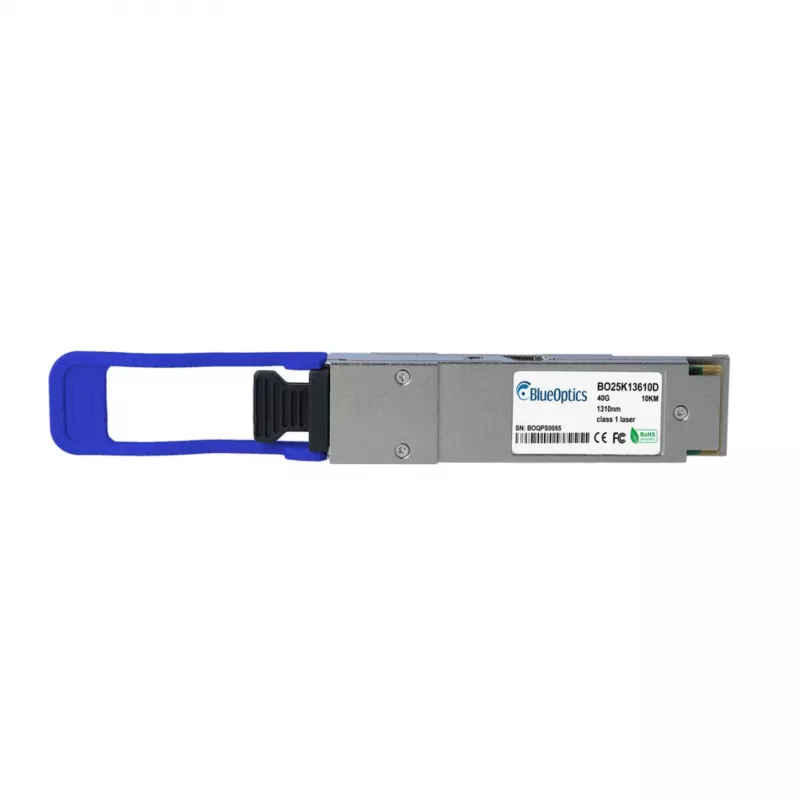

BlueOptics QSFP+ 40GBASE-LR4 transceiver Kompatibilný s Ruckus E40G-QSFP-LR4-A (10km, SMF, LC)

The BlueOptics BO25K13610D is a high-performance QSFP+ transceiver designed for 40 Gigabit Ethernet applications. It is fully compatible with Ruckus E40G-QSFP-LR4-A equipment and offers reliable connectivity over single-mode fiber at distances up to 10 km. This hot-pluggable module supports digital diagnostic monitoring (DDM) for real-time performance tracking.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility and performance. Low power consumption of max 3.5W helps reduce energy costs in data centers. Robust design ensures long-term reliability with MTBF exceeding industry standards.

Suitable for

• Data center interconnects
• Enterprise networking
• Service provider networks
• 40GBASE-LR4 compliant systems

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps (4x 10.3125 Gbps)
• Wavelength: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• Max Distance: 10 km over single-mode fiber
• Connector: LC duplex
• Power Consumption: Max 3.5W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3ba, SFF-8436, RoHS, CE, FCC

Recommendations

For optimal performance, use with OS2 single-mode fiber patch cables. Ensure proper handling and insertion to avoid damage to the module or equipment.
