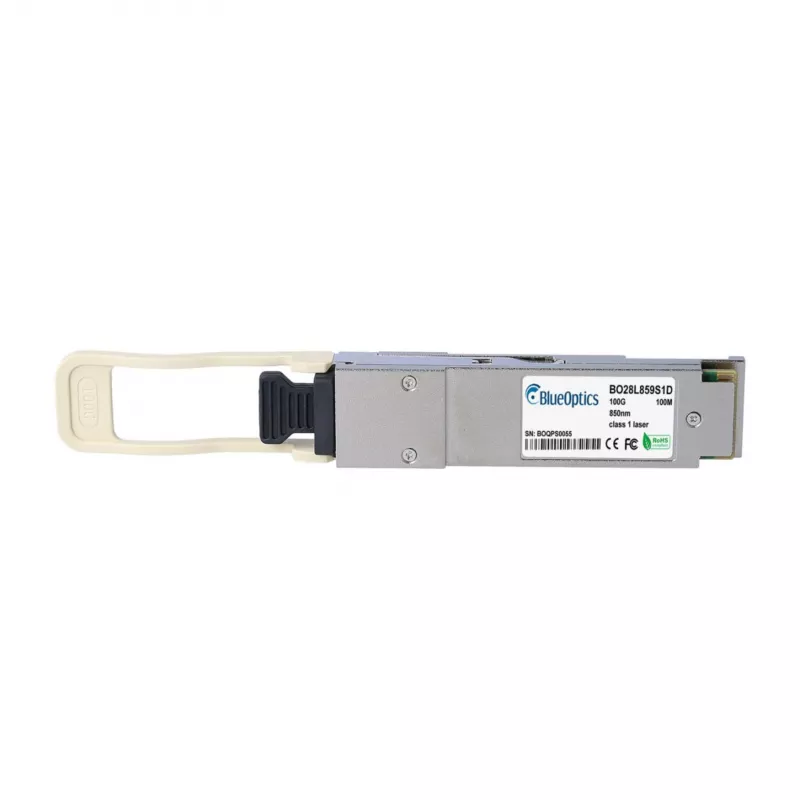

BlueOptics QSFP28 100GBASE-SR4 transceiver kompatibilný s Chelsio SM100G-SR

The BlueOptics QSFP28 100GBASE-SR4 transceiver is a high-performance, cost-effective optical module designed for 100 Gigabit Ethernet applications. It is fully compatible with Chelsio SM100G-SR network interfaces and complies with MSA standards, ensuring seamless integration into existing network infrastructures. This transceiver enables high-speed data transmission over multi-mode fiber, making it ideal for data center interconnects, high-performance computing, and enterprise networking.

Advantages

Optimized for 100GbE connectivity, this BlueOptics transceiver offers reliable performance with low power consumption (<3.5W) and hot-pluggable capability. It supports digital diagnostic monitoring (DDM) for real-time performance tracking. The MPO/MTP-12 connector simplifies cabling and reduces installation time. With a reach of up to 100m on OM4 fiber, it provides flexibility for short-range high-speed links.

Suitable for

• Data center interconnects (DCI)
• High-performance computing (HPC) clusters
• Enterprise network backbone links
• 100GBASE-SR4 compliant network equipment

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x25G lanes)
• Wavelength: 850 nm
• Fiber Type: Multi-mode (MMF)
• Connector: MPO/MTP-12 (female)
• Max Reach: 70m (OM3), 100m (OM4)
• Power Consumption: <3.5W
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3bm, SFF-8665, SFF-8636

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure proper MPO connector cleaning. This transceiver is a direct replacement for Chelsio SM100G-SR optics and is backed by BlueOptics quality assurance.
