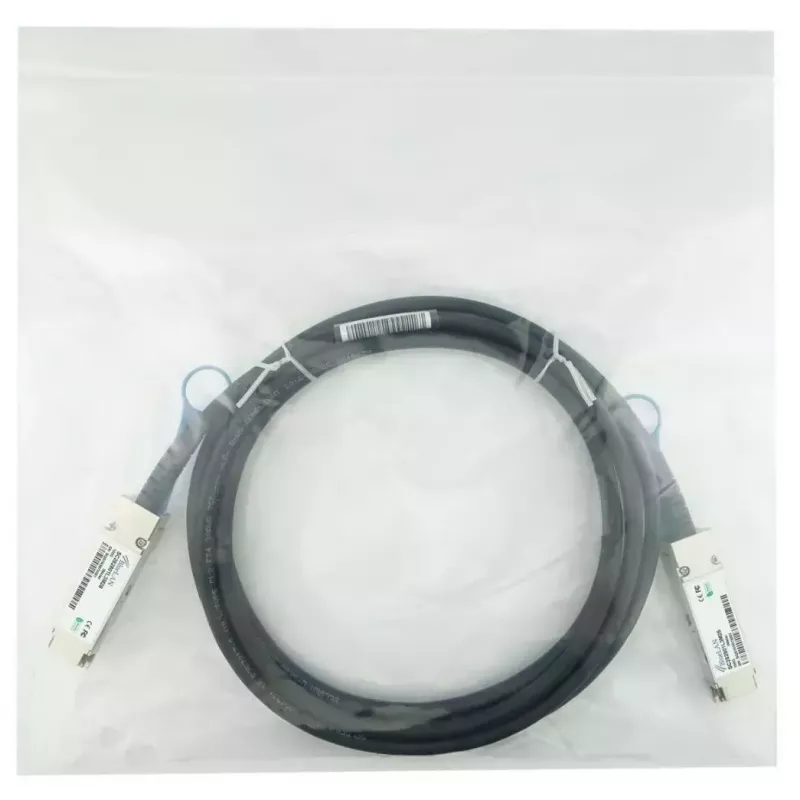

BlueOptics R9F77A-BL InfiniBand/optický kábel 1 m QSFP28 konektor samec/konektor samec

The BlueOptics R9F77A-BL InfiniBand/fibre optic cable is a 1 m QSFP28 Male-to-Male connection designed for short-range, high-speed links in data center and networking environments. It supports 100G Ethernet and InfiniBand applications, providing a direct attach connection between QSFP28 ports. The cable is intended for use where low latency, low power consumption and reliable electrical signal transfer are required over a one metre distance.

Advantages

This 1 m QSFP28 male/male cable offers a compact, passive direct attach solution for connecting switches, routers and storage systems that accept QSFP28 interfaces. The cable conforms to common MSA electrical and mechanical requirements for QSFP28 direct attach cables and uses 30 AWG twinax construction for consistent signal integrity. Compared with active modules, the passive design keeps power consumption and latency low while providing a cost-effective link for rack-to-rack or in-rack connections.

Suitable for

• 100G Ethernet connections between compatible QSFP28 ports
• InfiniBand links in server and storage environments
• Short-range direct attach connections inside racks or between adjacent racks
• High-density switch-to-switch or switch-to-server cabling

Key specifications

• Connector type: QSFP28 Male to QSFP28 Male
• Length: 1 metre
• Maximum data rate: up to 100 Gbps
• Cable type: passive twinax copper, 30 AWG
• Supported protocols: 100GBase-CR4 Ethernet, InfiniBand, FCoE and Fibre Channel (protocol-dependent)
• Application: short-distance direct attach for racks and adjacent racks

How to use

Install the cable by inserting each QSFP28 connector into the corresponding QSFP28 port until the latch engages. Ensure both connected devices support passive QSFP28 direct attach copper cables and the selected protocol. After installing, verify link status on both devices and check negotiated speed and protocol compatibility through the host interfaces or management software. Avoid sharp bends and maintain the minimum bend radius specified by the hardware vendor to preserve signal integrity.

Recommendations

Use this 1 m QSFP28 passive cable for short, high-bandwidth links where low latency and low power consumption are priorities. Confirm vendor compatibility for passive direct attach cables and test a sample in your environment if exact hardware support is required. Store the cable in a dry, dust-free area and avoid excessive mechanical stress to maximise service life.
