BlueOptics SFP28 Active Optical Cable (AOC) 5m 25GBASE-SR Kompatibilný s Ruckus SFP28-AOC-5M

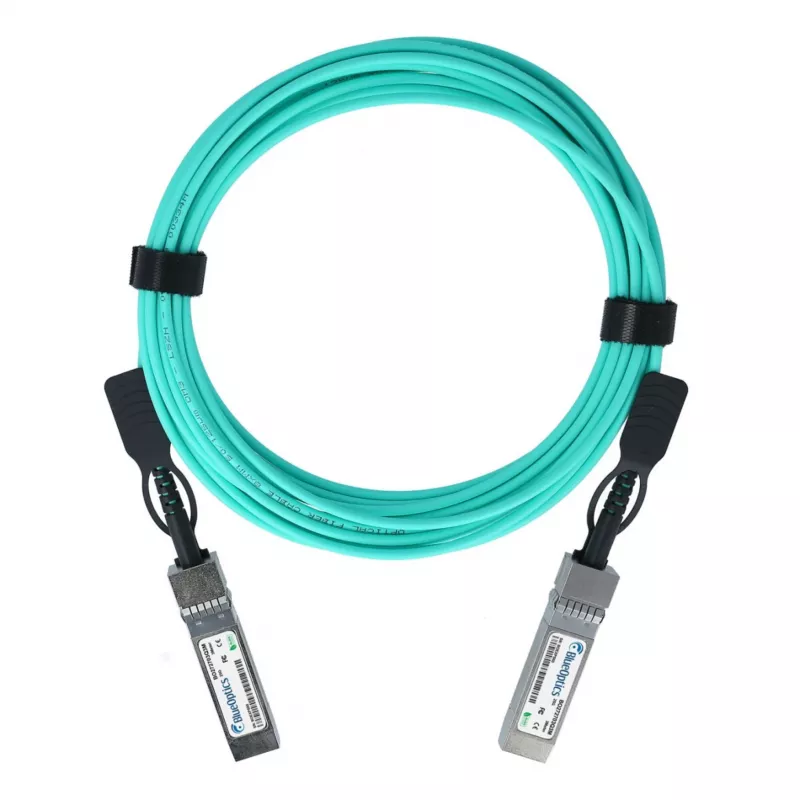

The BlueOptics SFP28 Active Optical Cable (AOC) is a high-performance, cost-effective solution for 25 Gigabit Ethernet connections in data centers and enterprise networks. Designed as a compatible replacement for the Ruckus SFP28-AOC-5M, this cable integrates SFP28 transceivers at both ends with a pre-terminated multi-mode fiber optic cable, ensuring reliable and low-latency data transmission over distances up to 5 meters.

Advantages

This Active Optical Cable offers significant advantages over traditional copper cabling, including lighter weight, smaller bend radius, and immunity to electromagnetic interference. The hot-pluggable SFP28 connectors enable easy installation and maintenance, while the built-in Digital Diagnostics Monitoring (DDM) provides real-time performance data. With low power consumption of less than 1.0W per end, it helps reduce energy costs in high-density environments.

Suitable for

• Data center interconnects between switches, servers, and storage devices
• High-performance computing (HPC) clusters
• Enterprise network upgrades to 25GbE
• Ruckus networking equipment requiring SFP28-AOC-5M compatible optics

Key specifications

• Product Type: Active Optical Cable (AOC)
• Form Factor: SFP28 to SFP28
• Data Rate: 25 Gbps
• Protocol: 25 Gigabit Ethernet (25GbE)
• Standard: 25GBASE-SR
• Cable Length: 5 meters
• Fiber Type: Multi-mode (OM3/OM4)
• Wavelength: 850 nm
• Connector Type: SFP28 to SFP28
• Hot-Pluggable: Yes
• Digital Diagnostics Monitoring (DDM): Yes
• Power Consumption: < 1.0 W per end
• Operating Temperature: 0°C to 70°C
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Compliance: RoHS, CE, FCC
• Voltage Supply: 3.3V
• Transceiver Technology: VCSEL
• Media: Fiber Optic

Recommendations

For optimal performance, ensure your network equipment supports SFP28 modules and 25GBASE-SR standards. This cable is ideal for short-reach interconnects within racks or between adjacent racks. Always handle fiber optic cables with care to avoid damage.
