BlueOptics SFP8181BU1MK InfiniBand optický kábel 1 m LC žltý

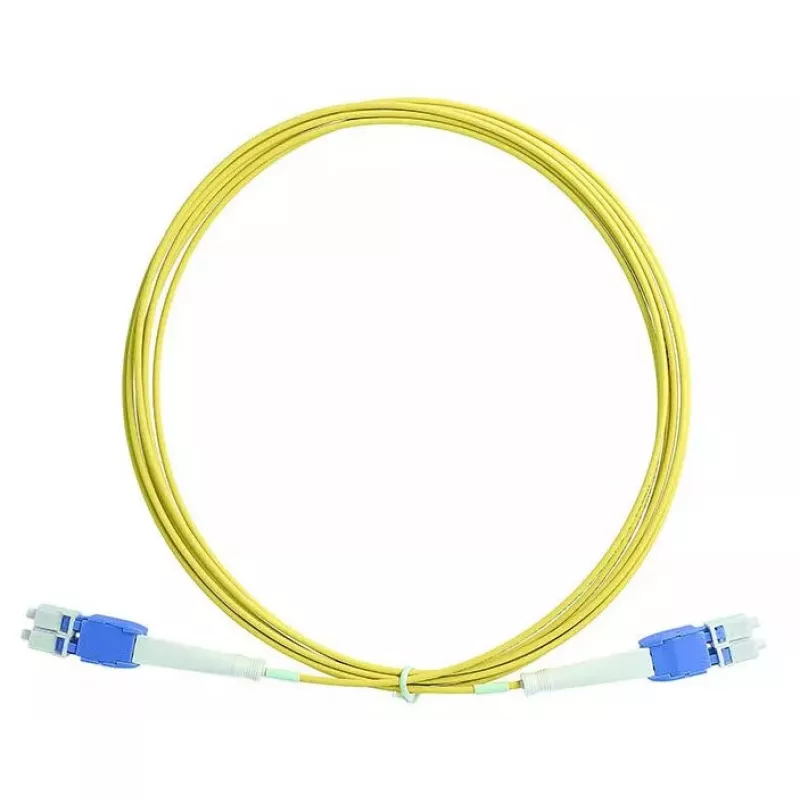

The BlueOptics SFP8181BU1MK InfiniBand fibre optic cable is a 1 m single-mode patch cable with LC connectors designed for high-speed network links. It uses G.657.A1 fibre with a 125 µm core diameter, providing reliable optical transmission and compatibility with InfiniBand equipment and transceivers. The cable's yellow jacket and LC termination make it suitable for standard data centre and networking environments where space-efficient small-form connectors are required.

Advantages

This 1 m BlueOptics fibre optic cable offers low insertion loss and stable optical performance thanks to the G.657.A1 fibre type and precise LC connector terminations. The compact LC duplex interface supports high-density port arrangements, while the single-mode construction favours long-reach and low-dispersion connections. The cable's standardized dimensions and connector type ensure broad compatibility with InfiniBand transceivers and network switches.

Suitable for

Key specifications

How to use

Inspect both LC connectors and the transceiver ports for dust or damage before installation. Gently align the LC connectors with the InfiniBand transceiver ports and insert until a secure latch click is felt. Route the cable to avoid sharp bends and maintain the recommended minimum bend radius for G.657.A1 fibre. For removal, depress the LC latch and pull straight out to avoid stressing the fibre ends.

Recommendations

Store unused cable ends with protective dust caps and perform routine optical cleaning when installing or reconnecting. For optimal performance in data centre installations, label both ends and use cable management to minimise bend radius and mechanical strain.
