BlueOptics Synology QSFP-100G-AOC-7M kompatibilný aktívny optický kábel QSFP28 7m

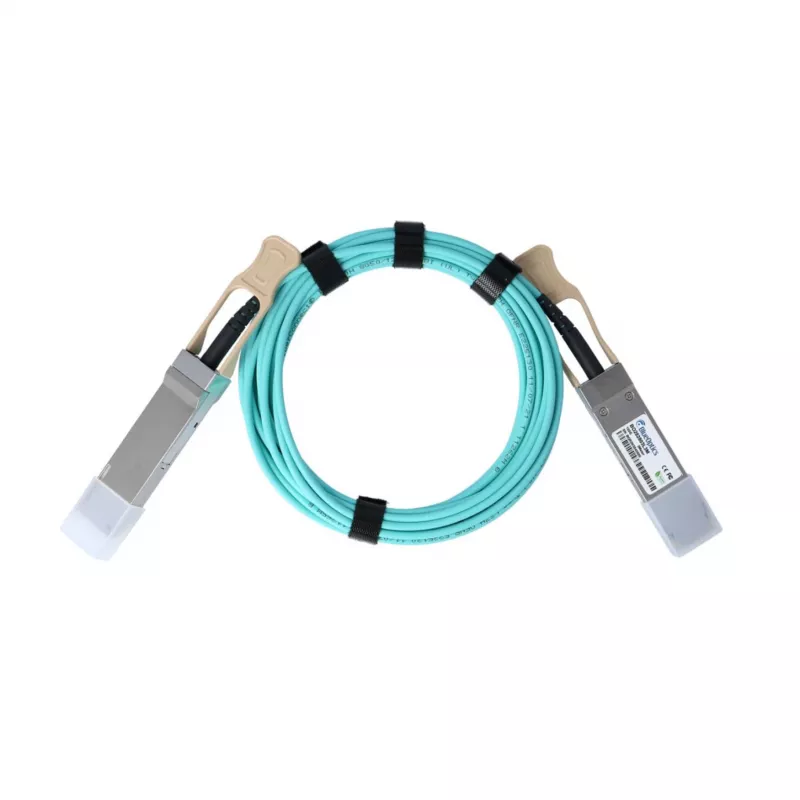

The BlueOptics BO282803L7M is a high-performance Active Optical Cable (AOC) designed for 100 Gigabit Ethernet connectivity. It is fully compatible with Synology QSFP-100G-AOC-7M and provides a reliable, low-power solution for data center and enterprise networking applications. With a length of 7 meters, this QSFP28 to QSFP28 cable ensures high-speed data transmission over multi-mode fiber.

Advantages

This Active Optical Cable offers significant advantages over traditional copper cables, including longer reach, lighter weight, and immunity to electromagnetic interference. It consumes only 2.5W maximum power, making it an energy-efficient choice for high-density environments. The hot-pluggable design allows for easy installation and maintenance without network downtime.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking and server connectivity
• Synology NAS systems with QSFP28 ports

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Data Rate: 100 Gigabit Ethernet (100GbE)
• Connector Type: QSFP28 to QSFP28
• Cable Length: 7 meters
• Fiber Type: Multi-mode Fiber (MMF)
• Wavelength: 850 nm
• Channels: 4x 25Gbps
• Power Consumption: Max 2.5W
• Voltage: 3.3V
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Cable Jacket Material: LSZH (Low Smoke Zero Halogen)
• Protocol Support: Ethernet, InfiniBand EDR/HDR

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 ports. This cable is ideal for short-reach, high-bandwidth applications within racks or between adjacent racks. Always handle the cable with care to avoid damaging the optical connectors.
