BlueOptics TP-Link QSFP-AOC-2M kompatibilný aktívny optický kábel QSFP+ 40Gbps 2m

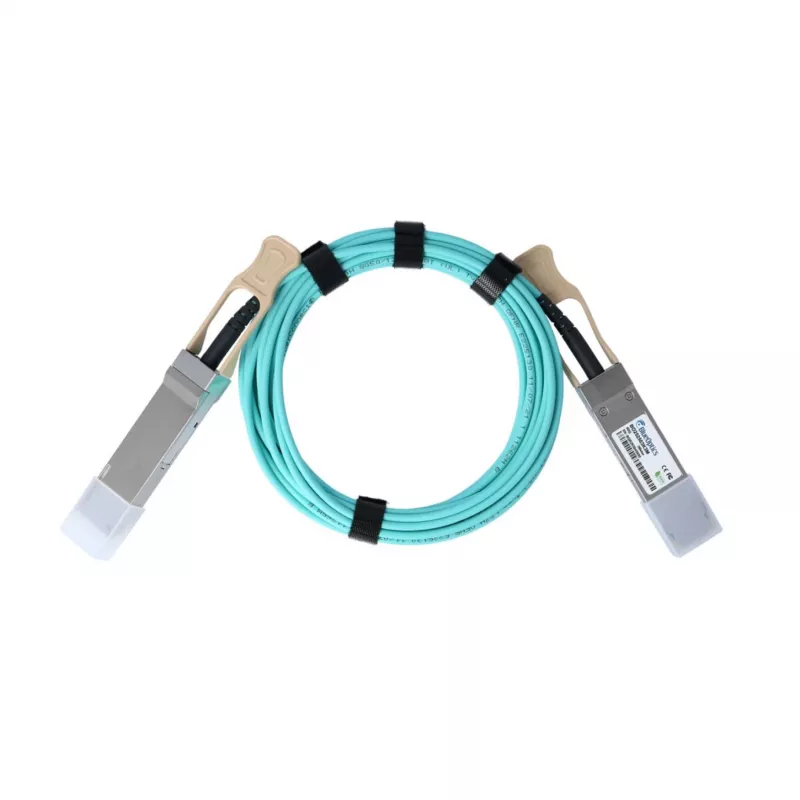

The BlueOptics BO252503K2M is a high-performance Active Optical Cable (AOC) designed for 40 Gigabit Ethernet connectivity. It is fully compatible with TP-Link QSFP-AOC-2M and MSA compliant, ensuring seamless integration into existing network infrastructures. This 2-meter cable features QSFP+ connectors on both ends, delivering reliable, high-speed data transmission for data centers, high-performance computing, and enterprise networks.

Advantages

With low power consumption under 1.5W per end and hot-pluggable design, this AOC reduces energy costs and simplifies installation. The LSZH jacket material ensures safety in enclosed spaces, while the 850nm multimode fiber supports 4 independent full-duplex channels for efficient data transfer.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking and server rooms
• TP-Link switches and routers with QSFP+ ports

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Length: 2 meters (6.56 ft)
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Power Consumption: < 1.5W per end
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC, MSA
• Jacket Material: LSZH

Recommendations

For optimal performance, pair this cable with compatible TP-Link QSFP+ modules or switches. Ensure proper handling to avoid damage to the optical connectors. This cable is ideal for short-range, high-bandwidth applications within racks or between adjacent racks.
