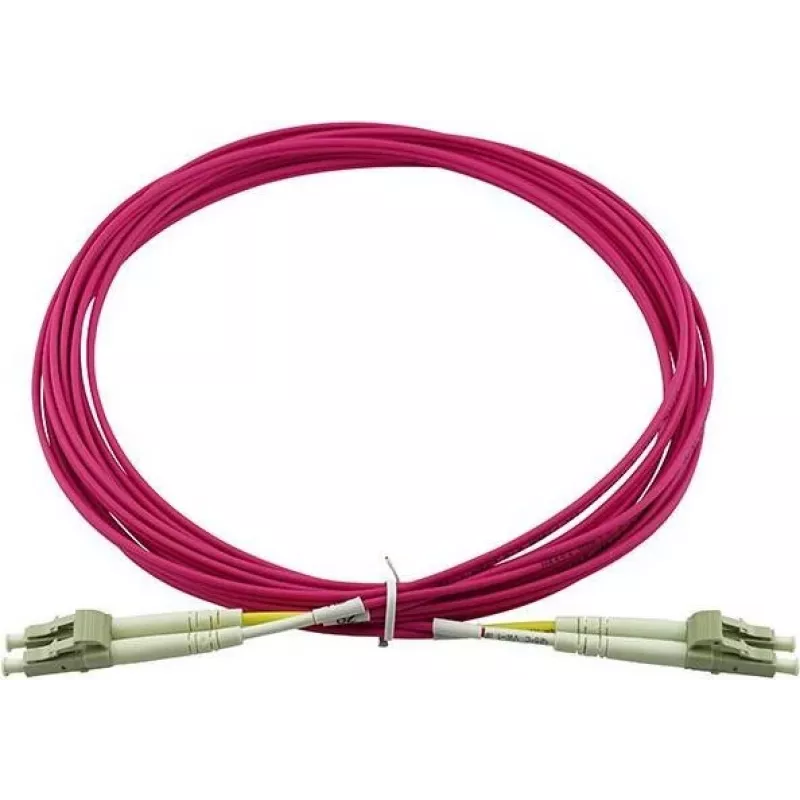

BlueOptics Ubiquiti UACC-OFC-M2-LULU-1M LC-LC multimódový OM4 patch kábel 1 meter

For high-density fiber patching where headroom matters, this BlueOptics OM4 patch cable pairs laser-optimized 50/125 µm multi-mode fiber with LC duplex connectors to deliver reliable 10/40/100G Ethernet links over short reaches. Unlike conventional OM3 assemblies, the OM4 grade extends the effective modal bandwidth to 4700 MHz·km at 850 nm, making it the practical choice for modern data centers and enterprise backbones that must support 40GBASE-SR4 and 100GBASE-SR4 without re-cabling.

Highlights

• Laser-optimized OM4 multi-mode fiber, 50/125 µm core/cladding
• LC duplex to LC duplex connectors with ceramic ferrules
• 1 meter length, ideal for patching between adjacent ports
• Aqua LSZH jacket for low smoke and halogen-free safety
• Insertion loss ≤ 0.3 dB, return loss ≥ 20 dB per connector
• Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, RoHS

In daily use

The 1-meter length keeps rack interiors tidy, while the duplex clip allows quick polarity changes without tools. The LSZH jacket emits minimal smoke and no halogen gases in the event of fire, making it suitable for plenum-adjacent areas and enclosed cabinets. Each connector is factory polished and tested to ensure consistent performance, reducing the need for field re-termination. Bend-insensitive construction tolerates tight routing, with a minimum bend radius of 7.5 mm, so you can dress the cable along rack rails without signal degradation.

Full specifications

• Cable type: Fiber optic patch cable, duplex
• Fiber type: Multi-mode OM4
• Connector A: LC duplex
• Connector B: LC duplex
• Length: 1 meter
• Core/cladding diameter: 50/125 µm
• Jacket color: Aqua
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Maximum attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Minimum modal bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Maximum insertion loss: 0.3 dB
• Minimum return loss: 20 dB
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, RoHS
• Minimum bend radius: 7.5 mm

Final note

BlueOptics OM4 patch cables are individually tested for insertion loss and return loss, ensuring every link meets the demands of high-speed Ethernet, Fibre Channel, and InfiniBand applications. Whether you're upgrading a single rack or building out a new pod, this 1-meter LC-LC cable delivers the performance and reliability your infrastructure expects.
