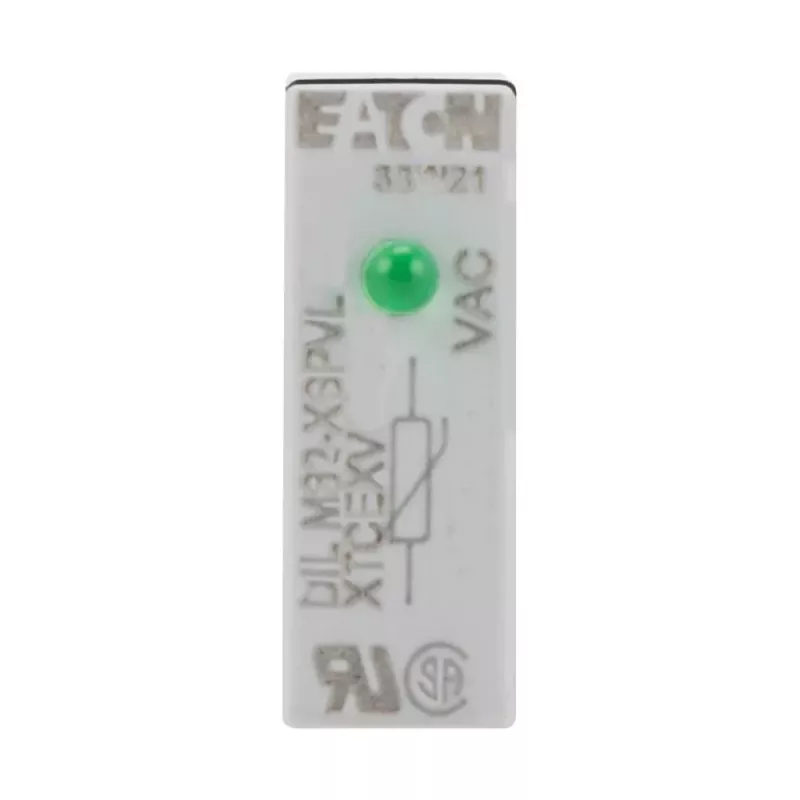

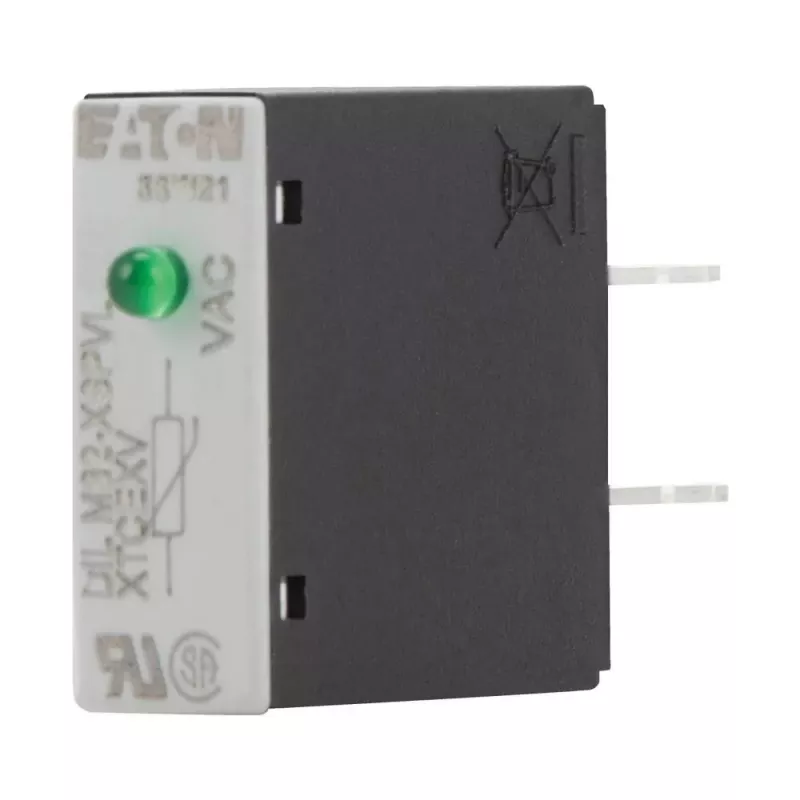

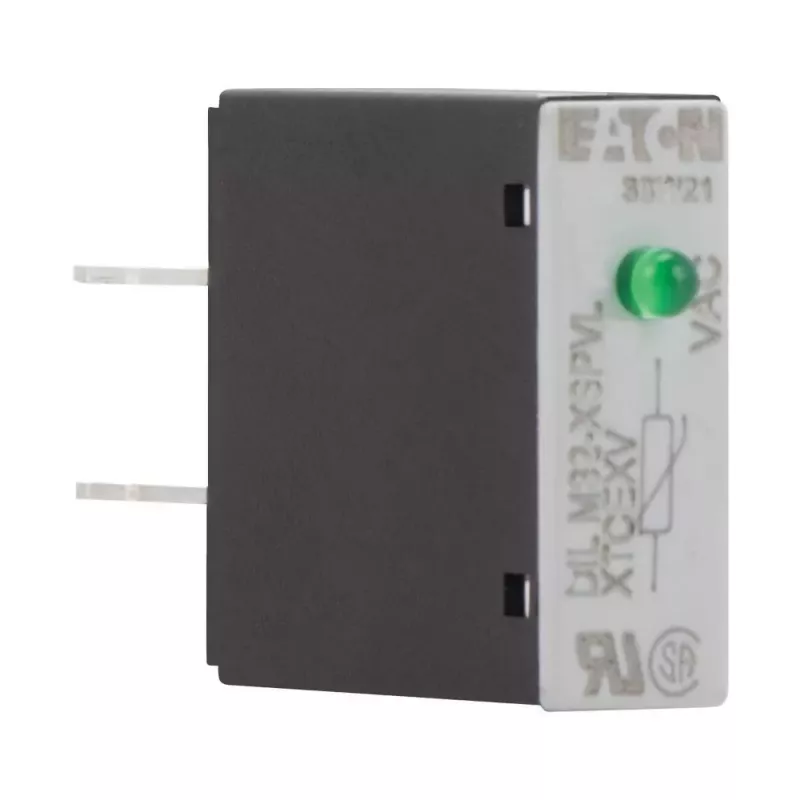

Eaton 281223 varistorový obmedzovač napätia s LED pre stýkače DILM17-32, 240V AC

Electrical panel builders and maintenance technicians use the Eaton 281223 varistor suppressor module to protect DILM17, DILM25, and DILM32 contactors from voltage spikes. The module plugs directly into the contactor, providing overvoltage suppression and arc quenching for 240V AC coil circuits. An integrated LED gives immediate visual confirmation of suppressor status.

Key specifications

• Suppressor type: Varistor
• Operating voltage: 240V AC (230–240V AC)
• Compatible contactors: Eaton DILM17, DILM25, DILM32
• Integrated LED indicator
• Plug-in mounting
• Rated frequency: 50/60 Hz
• Ambient operating temperature: -25°C to +60°C
• Storage temperature: -40°C to +80°C
• Degree of protection: IP20
• Connection type: Plug-in

Why choose it

This suppressor extends contactor life by limiting voltage transients and reducing contact arcing. The LED indicator allows quick troubleshooting without interrupting the circuit. Its direct plug-in design eliminates wiring and reduces installation time.

Ideal use cases

• Motor control panels with AC-operated DILM contactors
• Industrial automation systems requiring surge protection
• Retrofit projects where visual status indication is needed

Good to know

The module is designed for use with Eaton DILM series contactors and meets IEC/EN 60947-4-1 requirements. It operates on 50/60 Hz supplies and is suitable for ambient temperatures from -25°C to +60°C.
