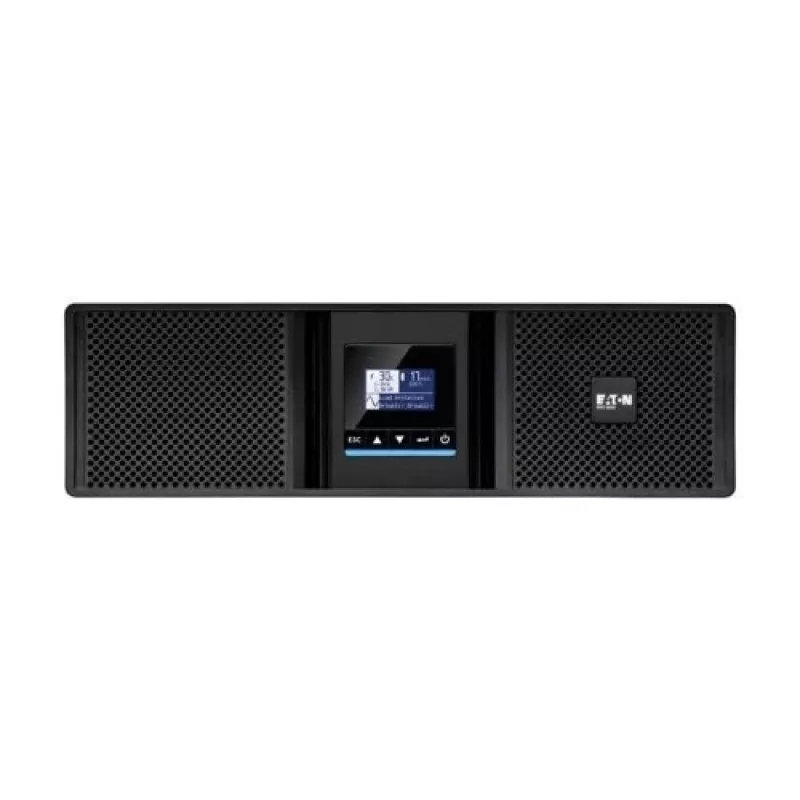

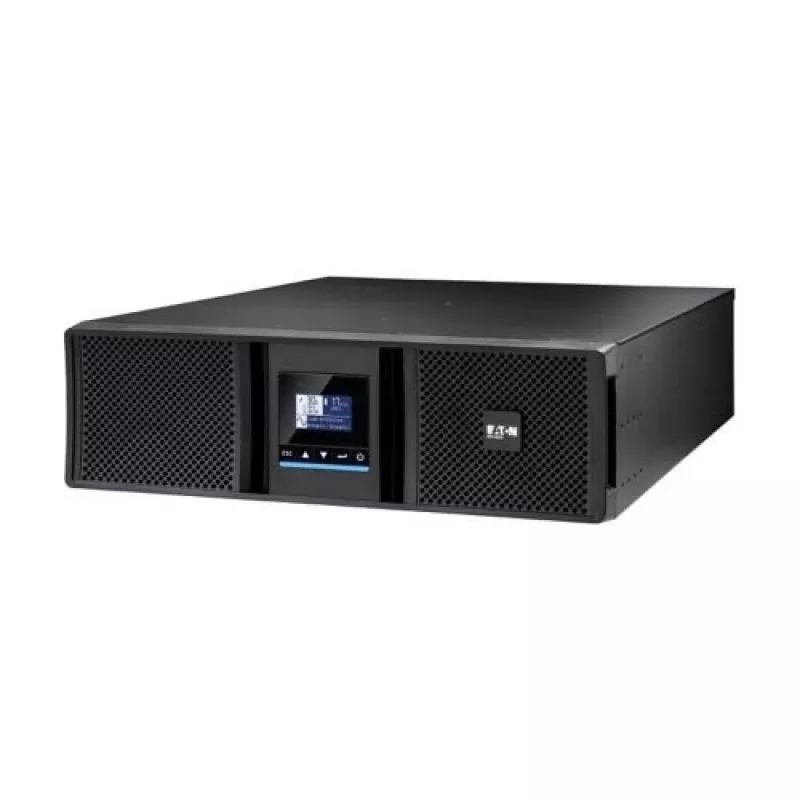

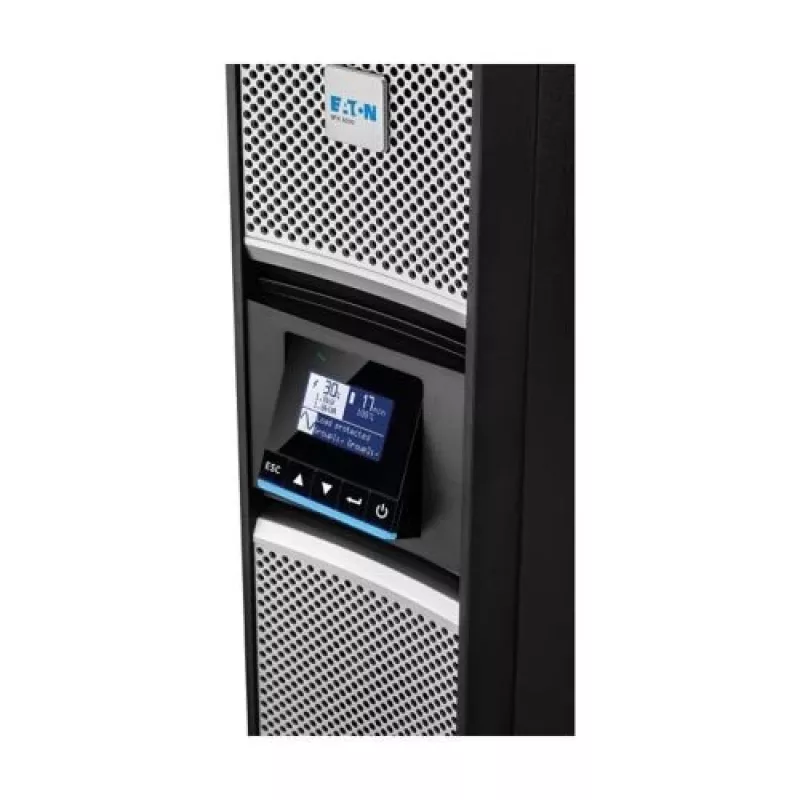

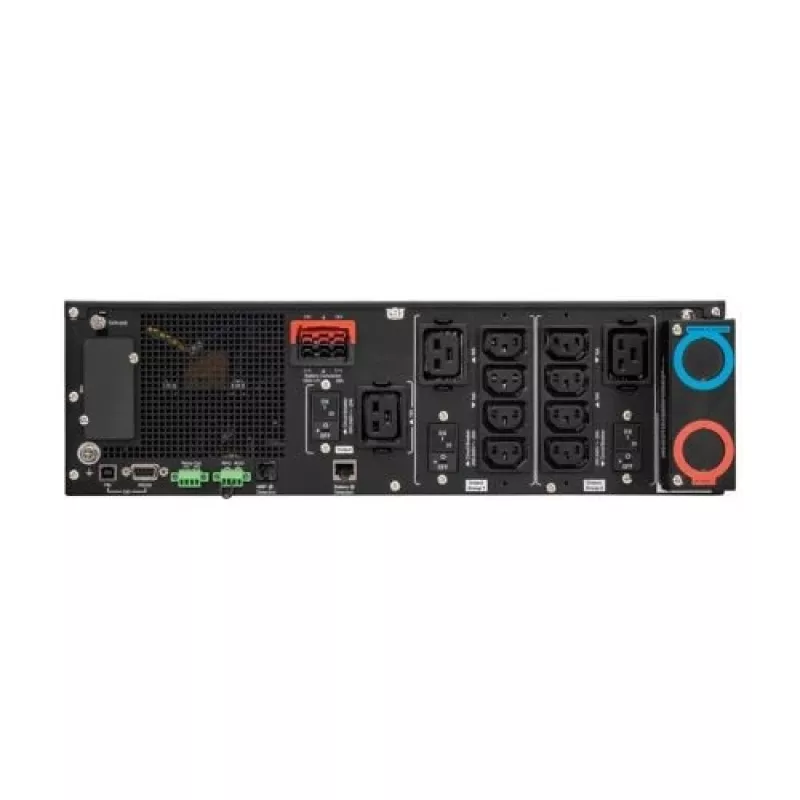

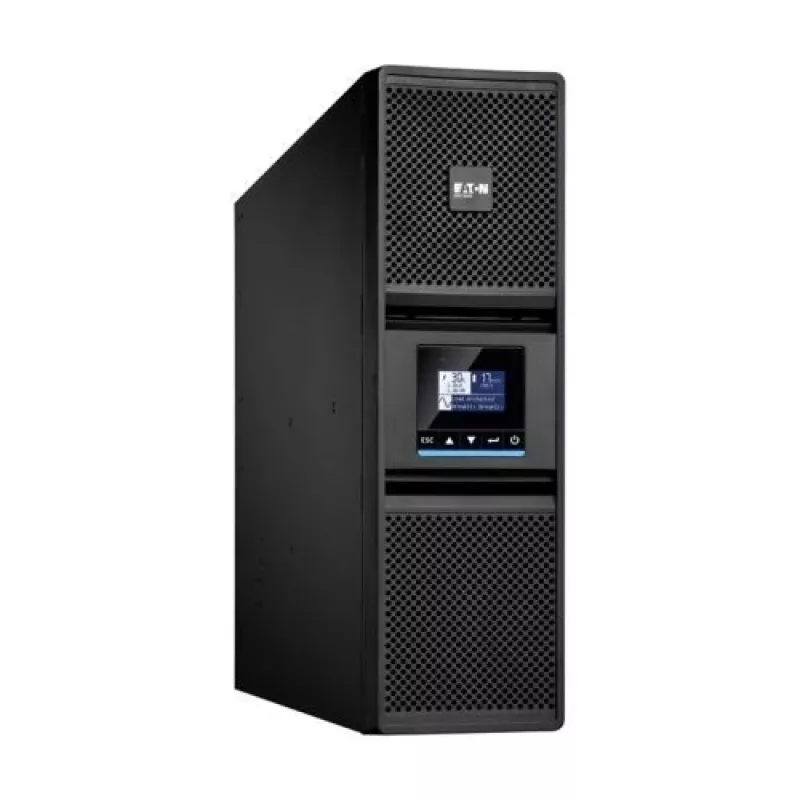

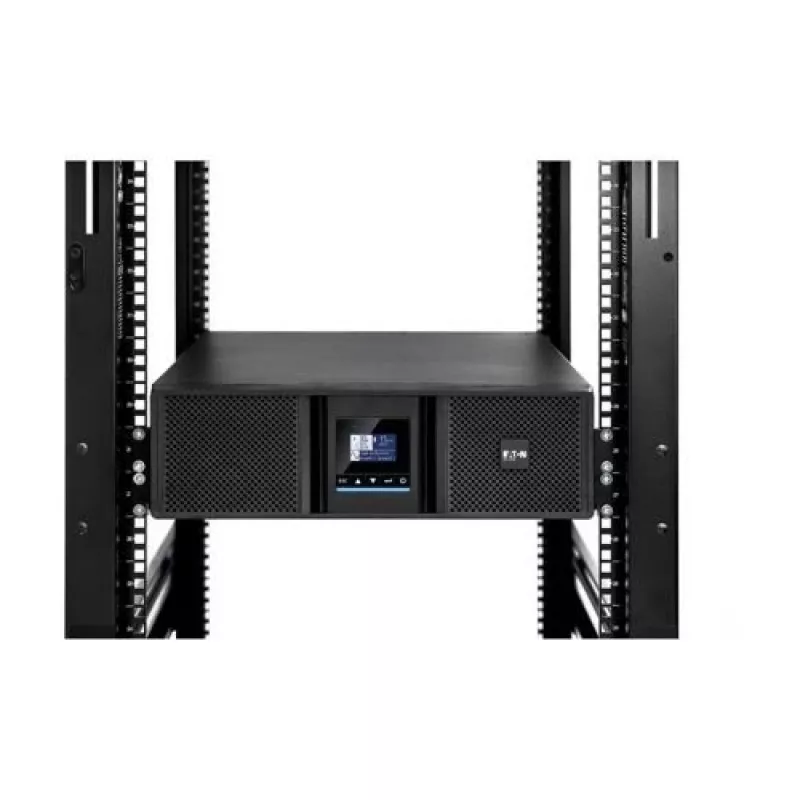

Eaton 9SX5KIRT3UG2 UPS dvojitá konverzia 5 kVA 5000 W čierna

The Eaton 9SX5KIRT3UG2 is a 5 kVA / 5000 W double-conversion UPS designed to provide continuous, high-quality power to sensitive electronic equipment. Using sealed lead acid battery technology in a compact desktop/tower form factor, this UPS delivers online, voltage-regulated output and galvanic isolation between input and output to protect servers, network devices and storage systems from power disturbances, frequency variations and harmonic distortion.

Advantages

Double-conversion topology provides consistent sine-wave output and zero transfer time, isolating connected equipment from input power anomalies. Sealed lead acid batteries offer reliable backup power and predictable runtime profiles while keeping maintenance requirements low. The compact tower/desktop design saves rack and floor space and the unit’s rated output of 5000 W supports demanding loads. Black finish and sturdy enclosure suit data center, server room and office environments where unobtrusive, robust protection is required.

Suitable for

• Small to medium data centers and server rooms
• Critical networking equipment and core switches
• Storage arrays and backup systems
• Workstations and sensitive laboratory or medical devices
• Telecommunications and control cabinets

Key specifications

• Output power: 5000 W
• Output power capacity: 5 kVA
• Topology: Double-conversion (online) UPS
• Battery type: Sealed lead acid
• Form factor: Desktop / Tower
• Product colour: Black
• Weight: 43.1 kg

How to use

Install the UPS on a stable, level surface or within a compatible cabinet following local electrical codes. Connect the UPS input to a dedicated AC supply with appropriate overcurrent protection and connect critical loads to the UPS output sockets or hardwired output panel as required. Charge the internal batteries fully before assuming critical load operation to ensure rated runtime. Use the UPS management interface or supported network management card (if installed) to configure shutdown parameters, alarms and performance monitoring. Perform periodic visual inspections of the enclosure, connections and battery status LEDs to confirm normal operation.

Recommendations

Place the UPS in a ventilated environment away from direct heat sources, liquids and excessive dust. Schedule regular battery runtime tests and replace batteries according to manufacturer guidelines and measured capacity decline. For installations with higher runtime requirements, consider external battery packs or consult a qualified technician for a compatible battery extension and maintenance plan.
