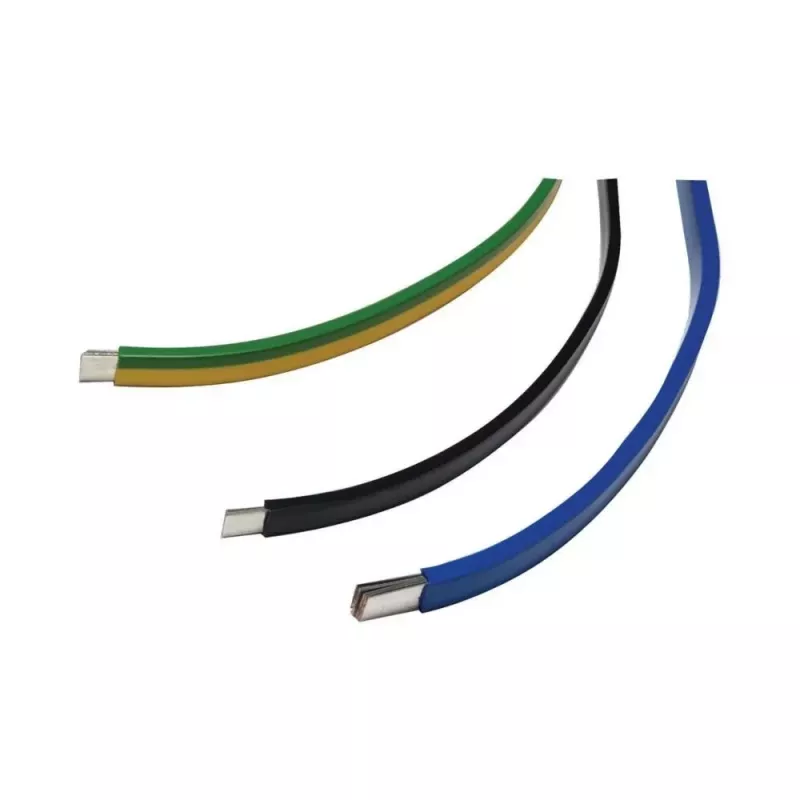

Eaton CU-BAND flexibilný medený vodič zbernice 250A pocínovaný 6x16x0,8mm 081310

For high-current power distribution where rigid busbars fall short, the Eaton CU-BAND flexible copper busbar (part 081310) delivers 250 A capacity in a compact, bendable form. Its laminated tinned copper construction absorbs vibration, eases alignment, and simplifies connections in switchgear, control panels, and battery systems.

Highlights

• Flexible laminated design: 6 thin copper lamellae (0.8 mm each) stacked for high conductivity and easy bending.
• Tinned surface: corrosion-resistant tin plating ensures long-term reliable contacts.
• Rated for 250 A continuous current, with a total cross-section of 76.8 mm².
• Overall dimensions: 16 mm wide, 4.8 mm thick, suitable for screw connections.
• Eaton quality: precision manufactured for consistent performance in demanding electrical installations.

In daily use

Installers appreciate the CU-BAND's flexibility when connecting busbar sections, breakers, or battery terminals. The tinned copper surface provides low contact resistance and resists oxidation, while the laminated structure allows the bar to be shaped to fit tight spaces without compromising current capacity. It is ideal for applications where vibration or thermal expansion would stress a solid bar.

Full specifications

• Product type: Flexible copper busbar
• Material: Copper, tinned
• Current carrying capacity: 250 A
• Number of lamellae: 6
• Lamella width: 16 mm
• Lamella thickness: 0.8 mm
• Total cross-sectional area: 76.8 mm²
• Overall width: 16 mm
• Overall thickness: 4.8 mm
• Connection method: Suitable for screw connections
• Model series: CU-BAND
• Eaton part number: 081310

Final note

Choose the Eaton CU-BAND 081310 for a reliable, flexible high-current link that simplifies installation and withstands challenging environments.
