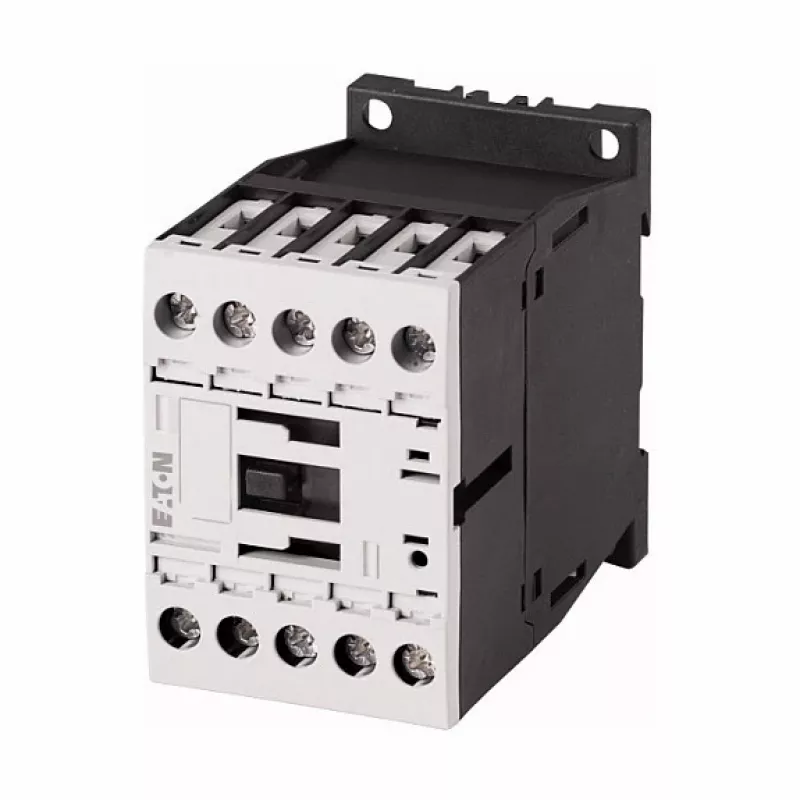

Eaton DILA-40 pomocný stýkač, 24 V DC, 4 NO, skrutkové svorky

Auxiliary contactor with four normally open contacts, engineered to reliably multiply a single 24 V DC control signal into four independent circuits. Its compact footprint and screw terminal connections make it a practical choice for space-constrained control cabinets.

Advantages

With four NO contacts, the DILA-40 eliminates the need for multiple interposing relays, simplifying wiring and reducing component count. The DC coil draws only 2.5 W in holding mode, minimising heat generation and lowering energy costs. Built for longevity, it achieves a mechanical life of 10 million operations and an electrical life of 1 million cycles under AC-15 load. IP20 terminal protection guards against accidental contact, while the 690 V insulation rating and 6 kV impulse withstand voltage ensure safe operation in industrial environments.

Suitable for

• Industrial automation systems requiring multiple interlocking and signalling contacts
• Switching auxiliary circuits in motor control centres and switchgear
• Extending the output capabilities of PLCs, timers, and sensors
• Controlling larger contactors and contactor assemblies

Key specifications

• Product type: Auxiliary contactor
• Control voltage: 24 V DC
• Number of contacts: 4 NO / 0 NC
• Rated operational current: 22 A (AC-1, 400 V), 4 A (AC-15, 230 V), 1 A (DC-13, 24 V)
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Connection method: Screw terminals
• Mounting: DIN rail or screw mounting
• Degree of protection: IP20 (terminals)
• Ambient operating temperature: -25 to +60 °C
• Coil power consumption: 2.5 W (holding)
• Mechanical life: 10 million operations
• Electrical life: 1 million operations (AC-15)
• Standards: IEC/EN 60947-5-1

Recommendations

For reliable signal multiplication in control circuits, pair the DILA-40 with Eaton's DILM series contactors and use appropriate 24 V DC power supplies to ensure stable coil voltage.
