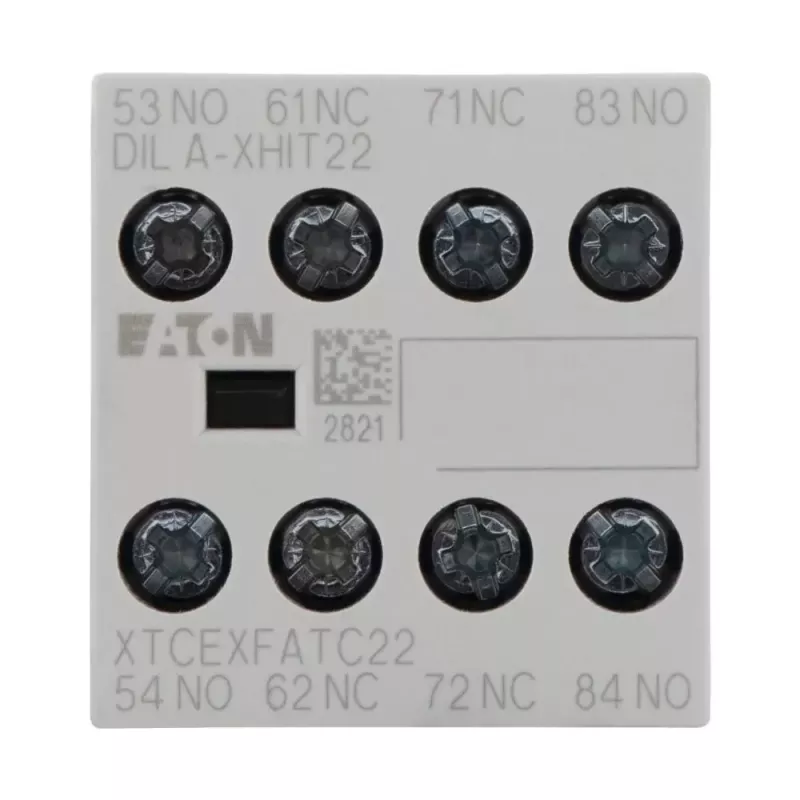

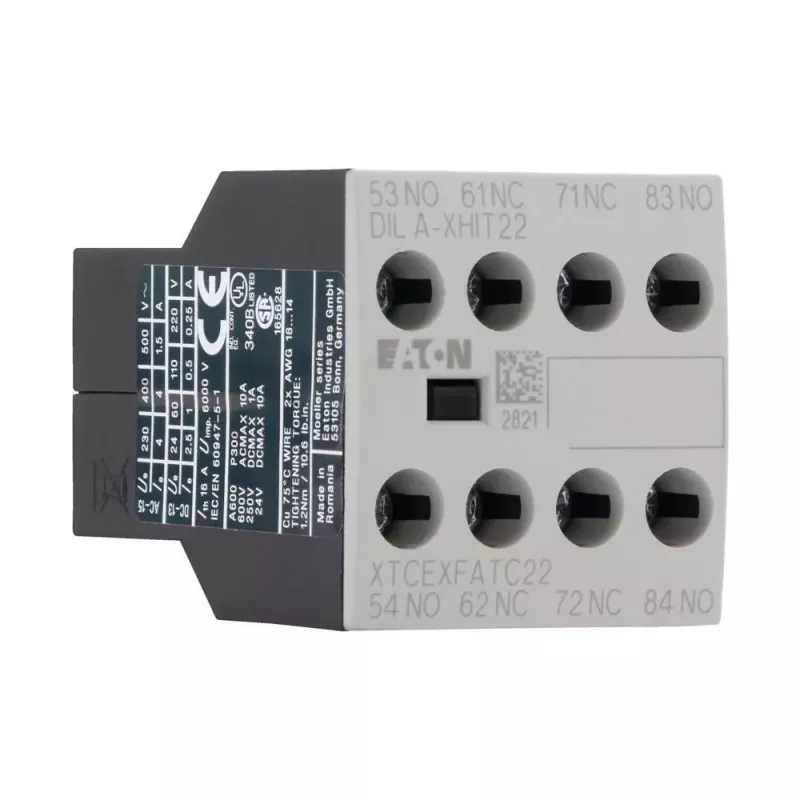

Eaton DILA-XHIT22 blok pomocných kontaktov, 2NO+2NC, čelná montáž, skrutkové svorky, čierna/biela 101044

Eaton's DILA-XHIT22 auxiliary contact block stands out with its 2 normally open and 2 normally closed contacts in a single compact unit, enabling flexible control and signaling directly on the contactor. Front mounting and screw terminals simplify installation and wiring in industrial control panels.

Highlights

• Contact configuration: 2 NO + 2 NC
• Front mounting for easy access
• Screw terminals for secure connections
• Compatible with Eaton DILM contactors, DILMP motor protective circuit breakers, and DILMF contactors
• Operating temperature range: -25 to 60 °C

In daily use

The DILA-XHIT22 is designed for reliable switching of auxiliary circuits in motor control applications. Its compact dimensions (45 mm x 125 mm x 68 mm) and black/white colour scheme integrate seamlessly into standard Eaton control gear. The block is rated for insulation voltage up to 690 V and impulse withstand voltage of 6 kV, ensuring safe operation in industrial environments.

Full specifications

• Product type: Auxiliary contact block
• Contact configuration: 2 normally open (NO) + 2 normally closed (NC)
• Mounting type: Front mounting
• Terminal type: Screw terminals
• Compatibility: Eaton DILM contactors, DILMP motor protective circuit breakers, DILMF contactors
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (DC-13, 24 V): 3 A
• Operating temperature range: -25 to 60 °C
• Storage temperature range: -40 to 80 °C
• Degree of protection (front): IP40
• Degree of protection (terminals): IP20
• Colour: Black / White
• Terminal capacity (solid): 1 x (0.75 - 2.5) mm² / 2 x (0.75 - 2.5) mm²
• Terminal capacity (flexible): 1 x (0.75 - 2.5) mm² / 2 x (0.75 - 2.5) mm²
• Mechanical lifespan: > 10 million operations
• Pollution degree: 3

Final note

For reliable auxiliary switching in Eaton motor control systems, the DILA-XHIT22 delivers proven performance and easy integration.
