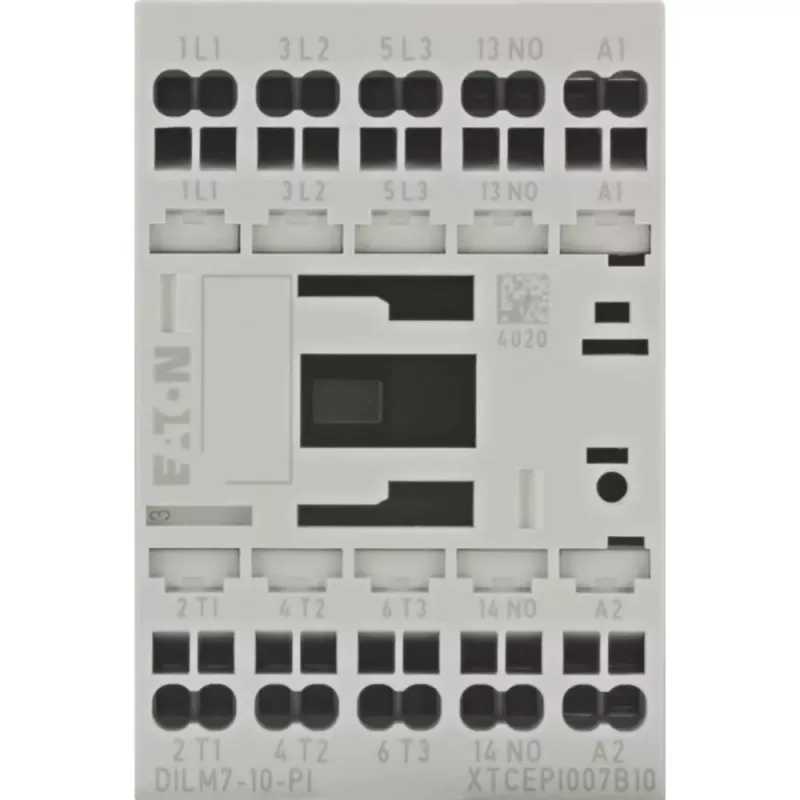

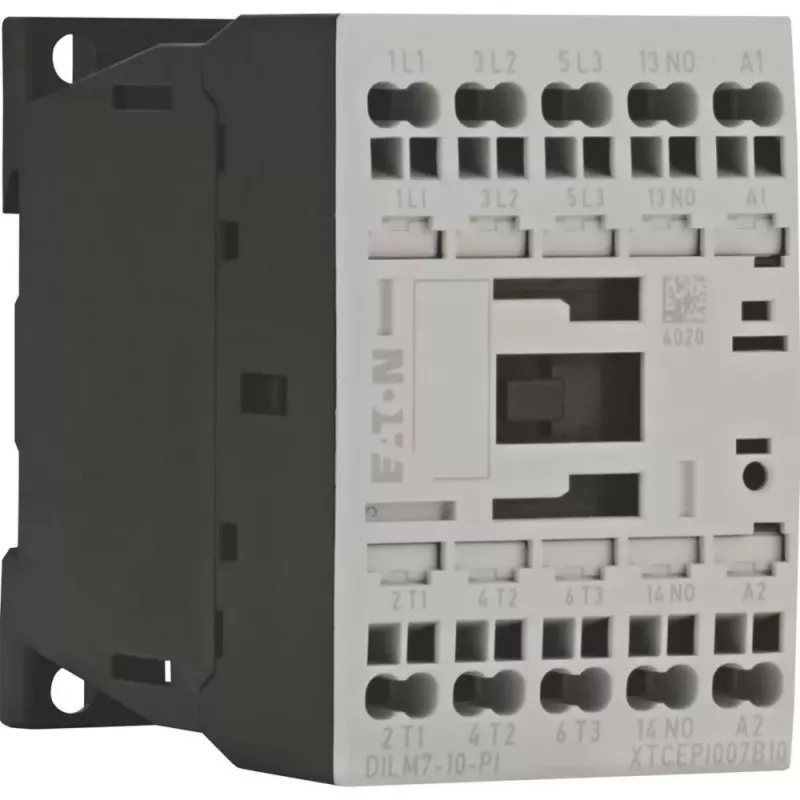

EATON DILM7-19921910(230V50HZ,240V60HZ)-PI výkonový stýkač (199219)

Industrial motor control demands a contactor that can handle frequent switching without failure. The EATON DILM7-19921910(230V50HZ,240V60HZ)-PI Power Contactor provides reliable switching for motors up to 3 kW at 400 V AC, with a coil rated for 230 V 50 Hz and 240 V 60 Hz control circuits.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need a compact 3-pole contactor for motor starting, heating loads, or lighting control in industrial environments.

Main features

• 3-pole power contactor, 7 A AC-3 rated operational current at 400 V
• Coil voltage 230 V 50 Hz / 240 V 60 Hz
• 1 normally open auxiliary contact
• Screw terminals for secure wiring
• DIN rail or screw mounting
• IP20 protection degree

Specifications

• Rated operational current AC-3 (400 V): 7 A
• Rated operational current AC-1 (400 V): 22 A
• Rated operational power AC-3 (400 V): 3 kW
• Rated operational voltage Ue: 690 V AC
• Control circuit voltage: 230 V AC (50 Hz), 240 V AC (60 Hz)
• Auxiliary contacts: 1 NO
• Mounting: DIN rail / screw
• Protection degree: IP20
• Ambient operating temperature: -25 to +60 °C
• Terminal type: screw terminals
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations

Tips

Ensure the control circuit voltage matches your supply frequency: 230 V at 50 Hz or 240 V at 60 Hz. For motor loads, verify the AC-3 rating against the motor's full-load current.
