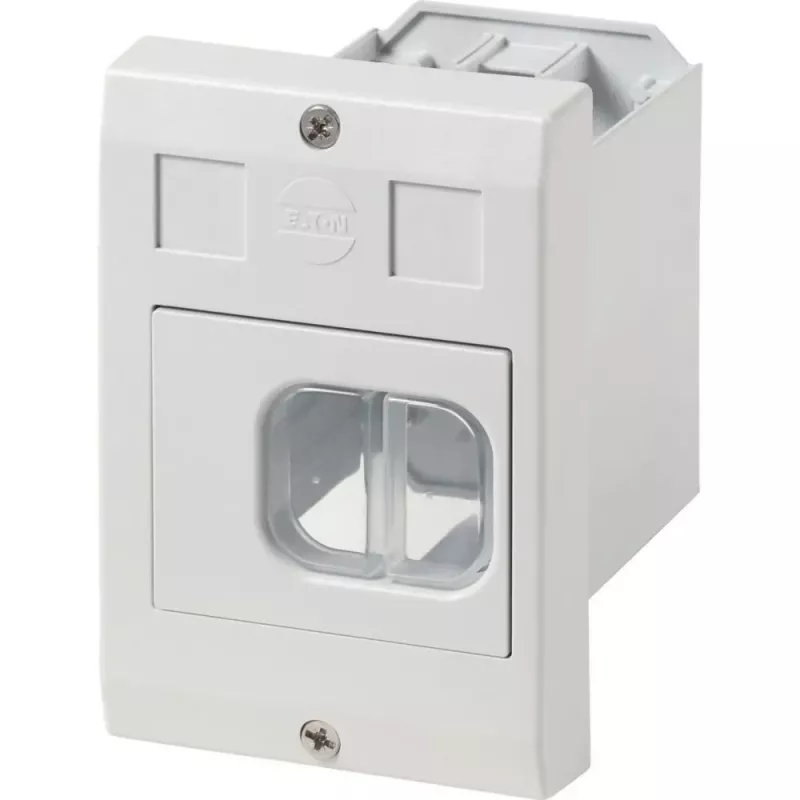

Eaton E-PKZ01-G prázdne puzdro s otočným vypínačom a membránovými priechodkami, sivá 281634

The Eaton E-PKZ01-G is a surface-mount empty enclosure specifically designed to house one PKZ01 motor-protective circuit-breaker. Its integrated rotary switch and four membrane cable glands make it a practical solution for industrial control applications where quick installation and reliable operation are required.

Highlights

• Compatible with Eaton PKZ01 motor-protective circuit-breakers
• Integrated rotary switch for direct control
• Four membrane cable entries (2 top, 2 bottom) for flexible wiring
• Grey polycarbonate housing, impact-resistant (IK08)
• IP65 protection, suitable for demanding environments

In daily use

This enclosure simplifies the installation of motor protection in industrial settings. The pre-installed rotary switch allows on/off control without additional wiring, while the membrane glands provide strain relief and maintain the IP65 seal. Its compact size and surface-mount design fit easily into control panels or directly on machinery.

Full specifications

• Colour: Grey (RAL 7035)
• Material: Polycarbonate
• Mounting type: Surface mount
• Degree of protection: IP65
• Impact resistance: IK08
• Operating temperature range: -25 to +70 °C
• Halogen-free: Yes
• UV resistance: Yes

Final note

The E-PKZ01-G combines protection and control in a single, easy-to-install enclosure, making it a reliable choice for motor circuit protection.
