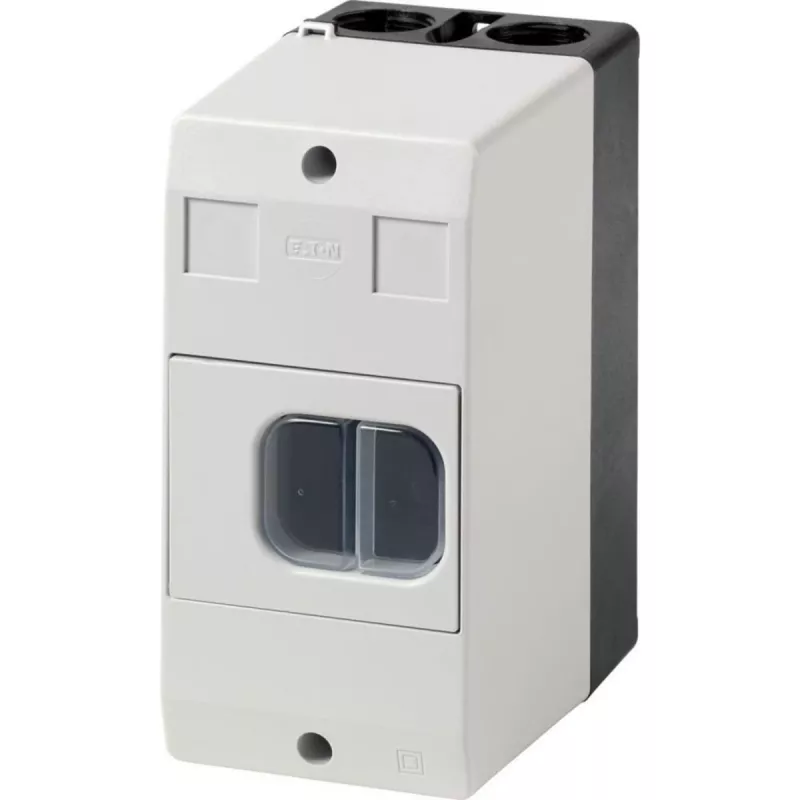

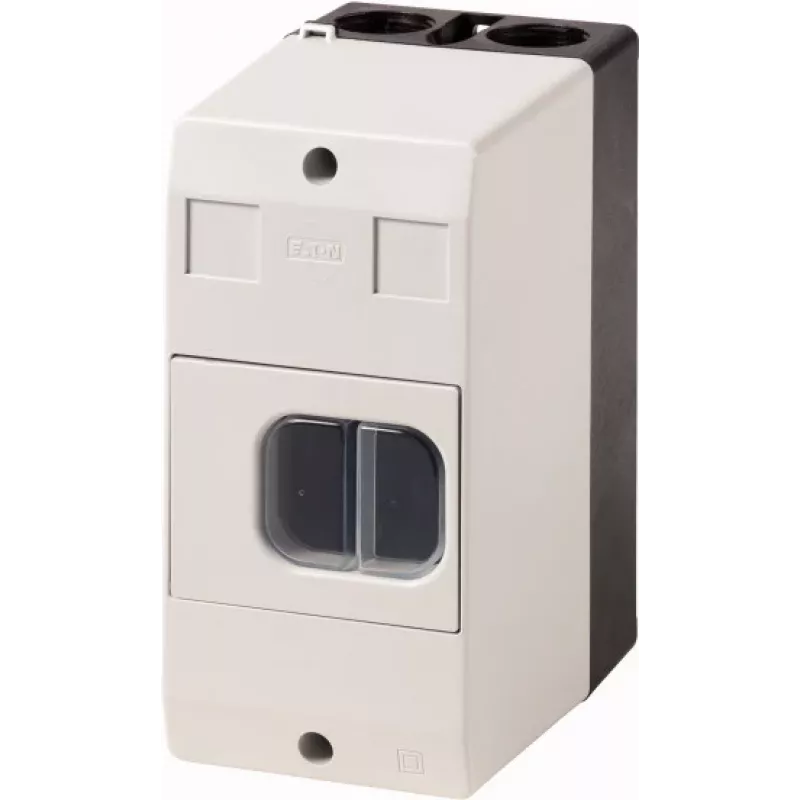

EATON izolačné puzdro PKZM01 CI-PKZ01-G povrchová montáž s ovládacou membránou IP65 281404

Insulated enclosure for motor protective circuit breakers with integrated operating membrane, providing IP65 protection for surface mounting.

Advantages

Thermoplastic enclosure with halogen-free material, UV resistance, and impact resistance IK07. Integrated operating membrane allows operation of the installed breaker without opening the enclosure.

Suitable for

• Motor protective circuit breakers PKZM01, PKE12, PKE32
• Surface mounting applications
• Main switch function

Key specifications

• Material: Thermoplastic (insulating material)
• Color: Grey (RAL 7035)
• Ingress protection: IP65
• Impact resistance: IK07
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Flammability rating: UL94 V-0
• Halogen-free: Yes
• UV resistance: Yes
• Cable entries: top 2 x M25/M32, bottom 2 x M25/M32, side 1 x M25/M32
• Number of modules: 1

Recommendations

Ideal for protecting motor protective circuit breakers in harsh environments requiring IP65 protection and easy operation.
