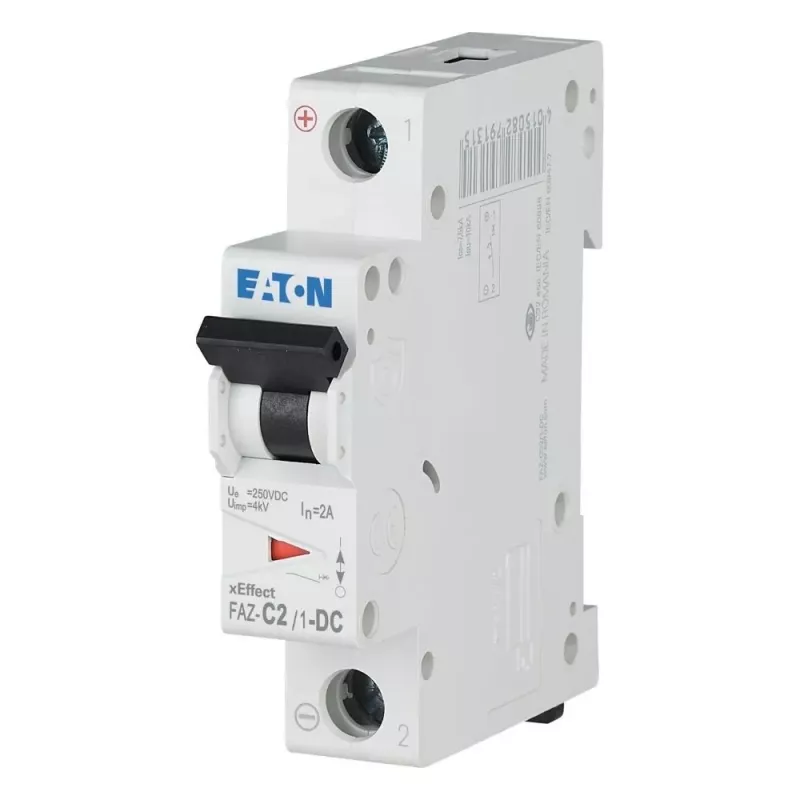

Eaton FAZ-C2/1-DC Istič, 1-pólový, 2 A, charakteristika C, 220 V DC, 10 kA 279122

Protect DC circuits in industrial control panels and solar applications with the Eaton FAZ-C2/1-DC miniature circuit breaker. This 1-pole MCB is rated for 2 A with C-characteristic tripping, making it suitable for loads with moderate inrush currents such as control transformers and DC motors.

Key specifications

• Number of poles: 1
• Rated current: 2 A
• Tripping characteristic: C
• Rated voltage: 220 V DC
• Breaking capacity: 10 kA at 220 V DC
• Mounting: DIN rail (35 mm)
• Module width: 1 module (17.5 mm)
• Terminal capacity: 1–25 mm² (solid), 1–16 mm² (stranded)
• Operating temperature: -25 °C to +75 °C
• Electrical life: >10,000 switching cycles
• Mechanical life: >20,000 switching cycles

Why choose it

The FAZ-C2/1-DC offers reliable protection for DC circuits with its high breaking capacity and compact single-module design. Screw terminals ensure secure connections, and the wide operating temperature range suits demanding environments.

Ideal use cases

• Protection of DC control circuits in industrial machinery
• Solar PV installations (DC side)
• Battery systems and DC power supplies

Good to know

Complies with EN 60947-2 and IEC 60947-2. The breaker is designed for DIN rail mounting and occupies only 17.5 mm of rail space.
