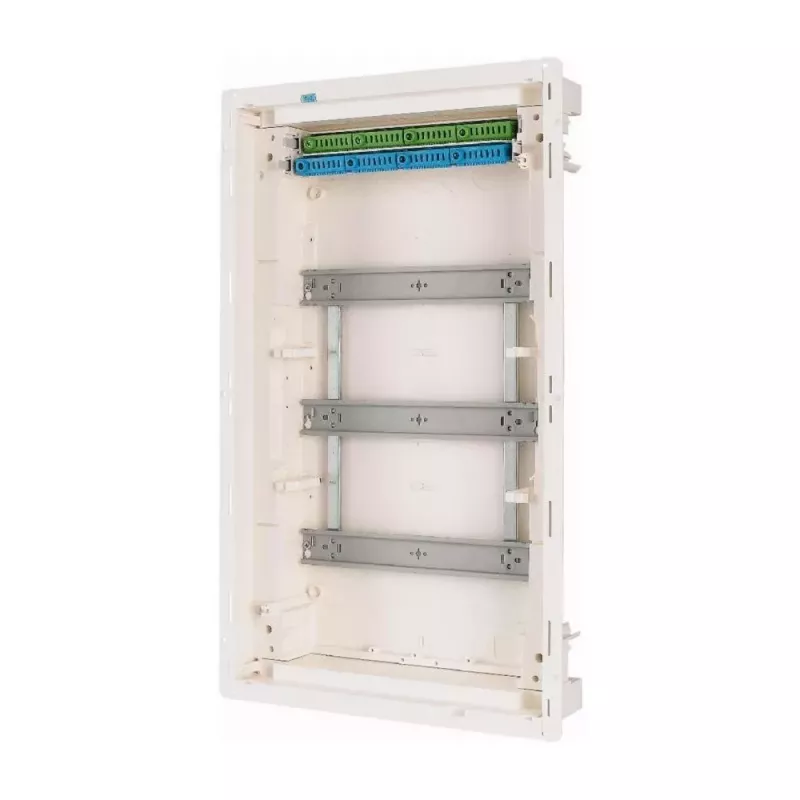

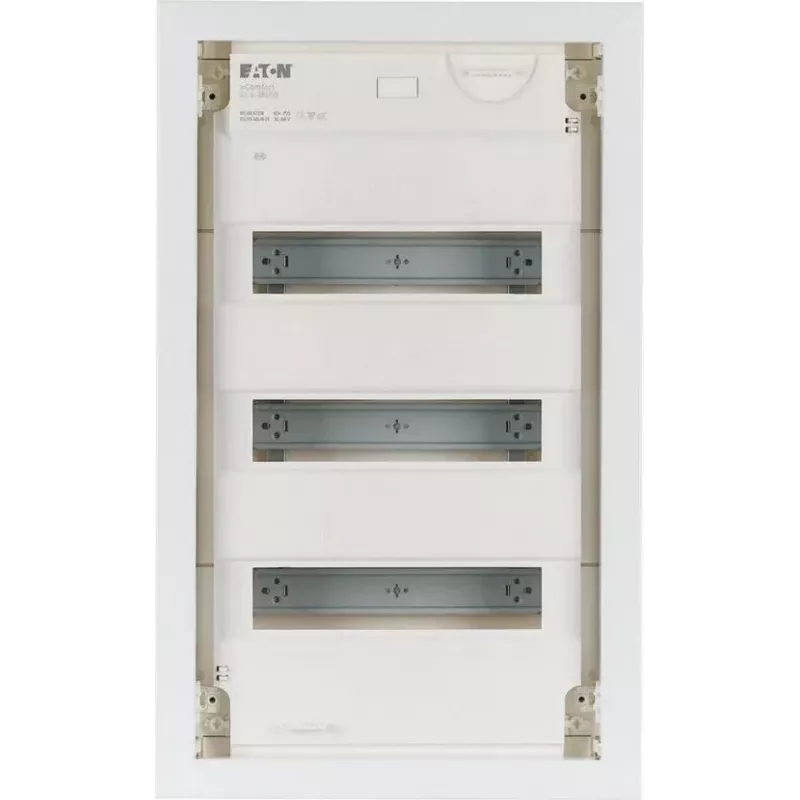

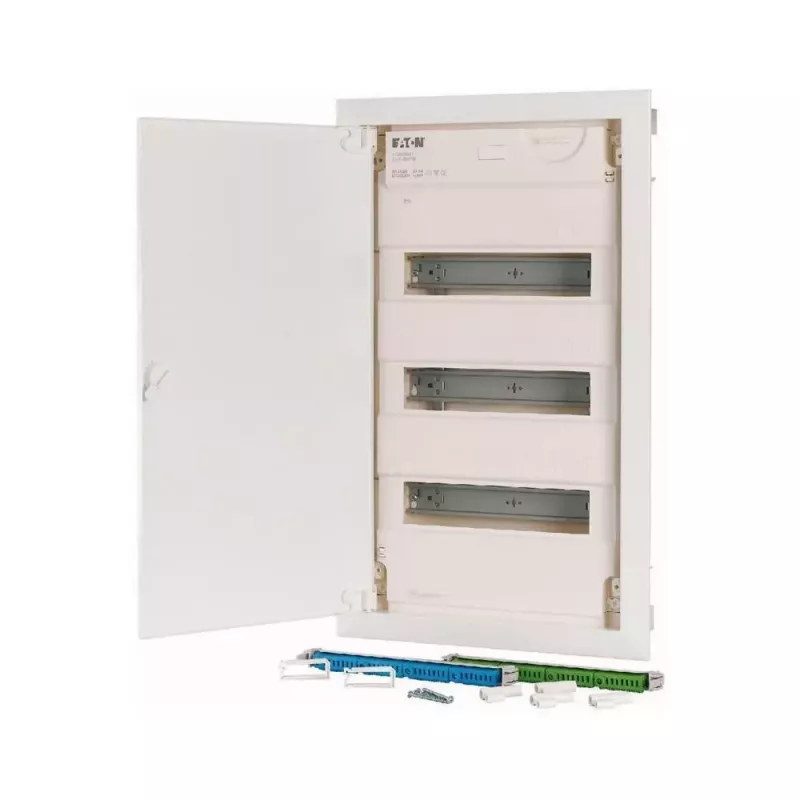

Eaton KLV-36HWP-F nástenný rozvádzač, 3 rady, 36 modulov, priehľadné dvere, biely 178810

Electricians and installers use the Eaton KLV-36HWP-F in residential and commercial buildings to house and protect modular electrical devices such as circuit breakers, residual current devices, and other DIN rail components. This surface-mounted small distribution board provides a structured and safe enclosure for electrical installations.

Key specifications

• Mounting type: surface-mounted
• Number of rows: 3
• Number of modules: 36 (12 per row)
• Protection class: IP30
• Material: plastic
• Colour: white (RAL 9010)
• Door type: transparent
• Rated voltage: 400 V AC
• Rated current: 63 A
• Glow-wire test: 650 °C
• N/PE terminals included
• Standards: IEC/EN 60670-24, IEC/EN 62208, DIN VDE 0603-1

Why choose it

The transparent door allows quick visual inspection of installed devices without opening the enclosure. The three-row layout offers ample space for up to 36 modules, suitable for comprehensive circuit arrangements. The white plastic housing blends with interior walls and is easy to clean.

Ideal use cases

• Residential electrical distribution
• Commercial small distribution boards
• Indoor surface-mounted installations

Good to know

The enclosure meets relevant IEC and DIN VDE standards for small distribution boards, ensuring compatibility and safety in electrical installations. N and PE terminals are integrated for convenient wiring.
