Eaton M22-D-G-X1-K10-BVP tlačidlo s plastovým predným krúžkom, zelené, 1 NO 110937

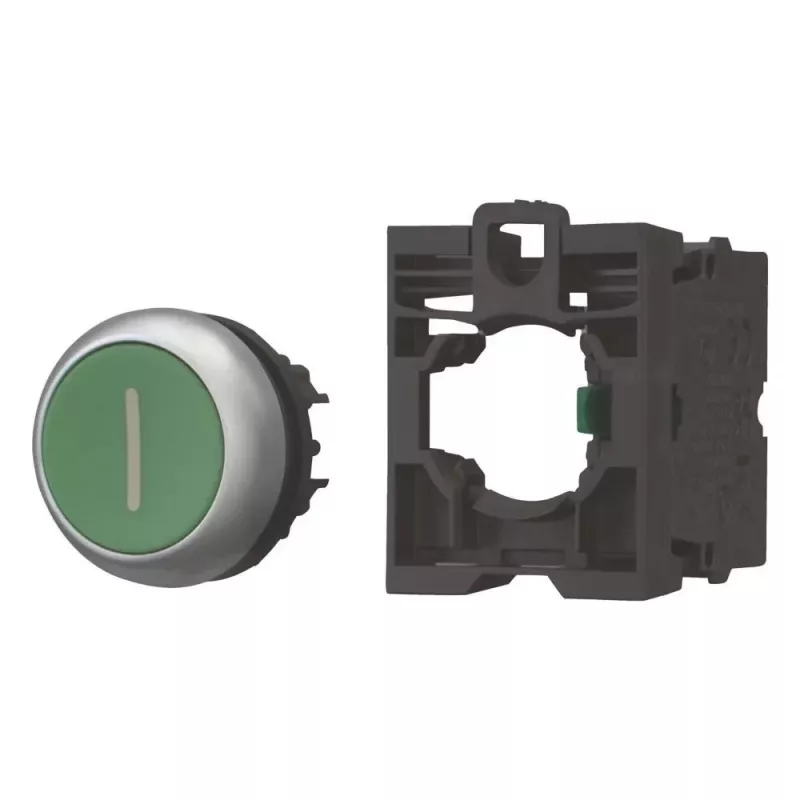

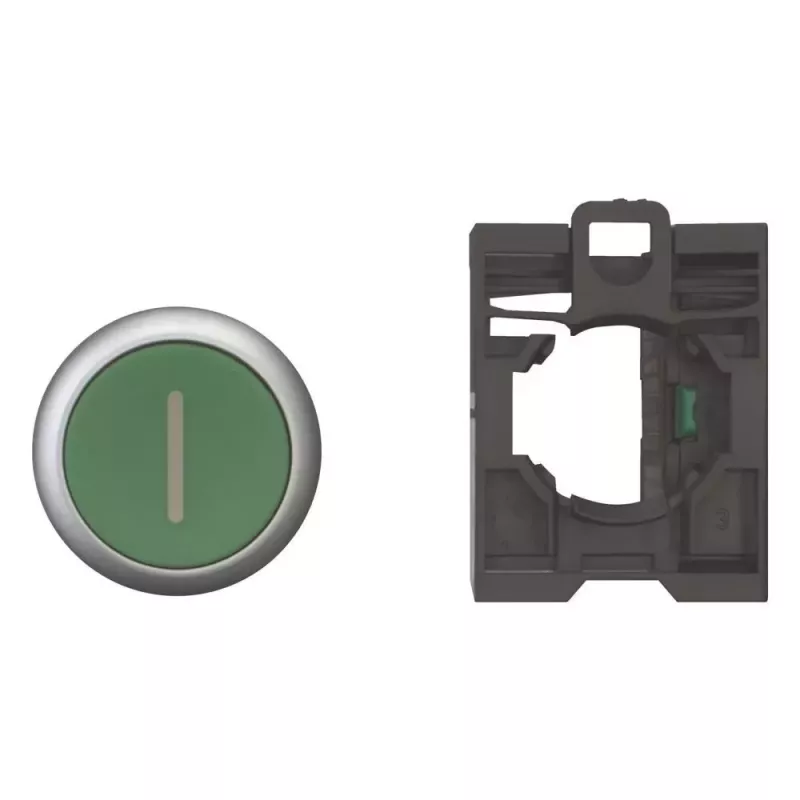

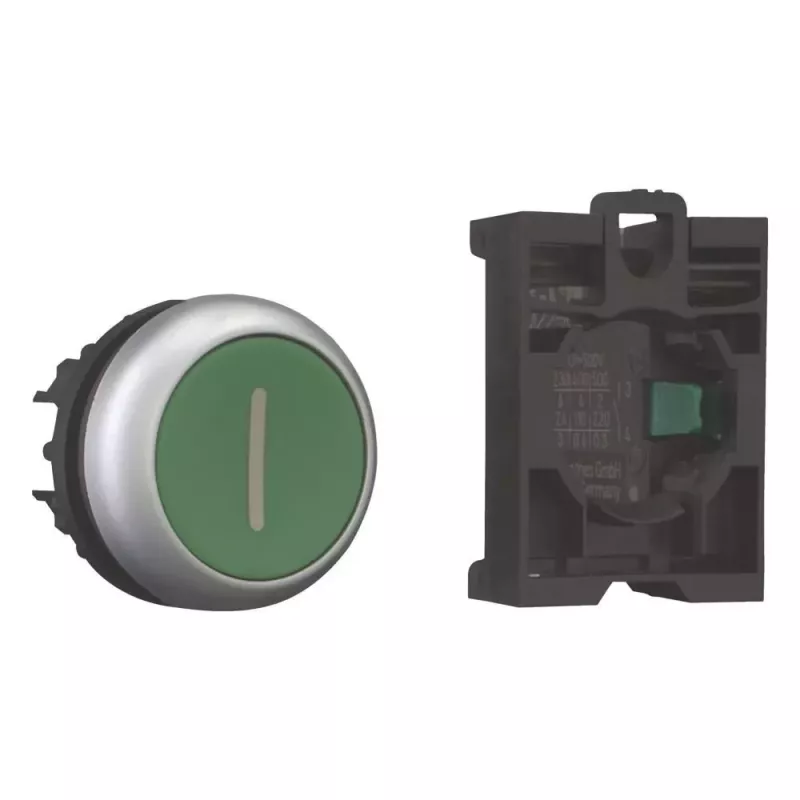

The Eaton M22-D-G-X1-K10-BVP is a complete pushbutton unit from the M22 series, combining a flush green actuator, a black plastic front ring, and a contact block with one normally open contact. Unlike modular pushbuttons that require separate ordering of actuator, adapter, and contact block, this unit arrives ready to install in a 22.5 mm mounting hole.

Highlights

• Flush green actuator with momentary (spring-return) operation
• Black plastic front ring for a clean, modern appearance
• One normally open (NO) contact configuration
• Front protection rating IP66, IP67, IP69K
• NEMA 4X, 13 rated for demanding environments
• Mechanical life exceeding 5 million operations

In daily use

This pushbutton is suited for control panels, machine tools, and industrial equipment where a reliable, non-illuminated momentary signal is required. The flush actuator reduces accidental operation, while the screw terminals provide secure wiring. The plastic front ring is corrosion-resistant and easy to clean.

Full specifications

• Product type: Pushbutton
• Actuator type: Flush
• Actuator colour: Green
• Operation type: Momentary (spring-return)
• Contact configuration: 1 Normally Open (NO)
• Front ring material: Plastic (black)
• Mounting diameter: 22.5 mm
• Series: M22
• Illumination: Non-illuminated
• Terminal type: Screw terminals
• Rated operational voltage (Ue): Max. 500V AC/DC
• Rated operational current (Ie): Max. 6A (AC-15, DC-13)
• Mechanical life: > 5 million operations
• Operating temperature: -25°C to +70°C
• Standards: IEC/EN 60947, UL, CSA
• Number of actuators: 1
• Housing material (contact block): Plastic
• Component type: Complete unit (actuator + adapter + contact block)

Final note

For reliable control in harsh industrial environments, the Eaton M22-D-G-X1-K10-BVP offers a complete, ready-to-install solution with proven performance.
