Eaton SL7-BL24-B LED prvok signálneho stĺpa, modré blikajúce svetlo, 24 V AC/DC, 70 mm 171439

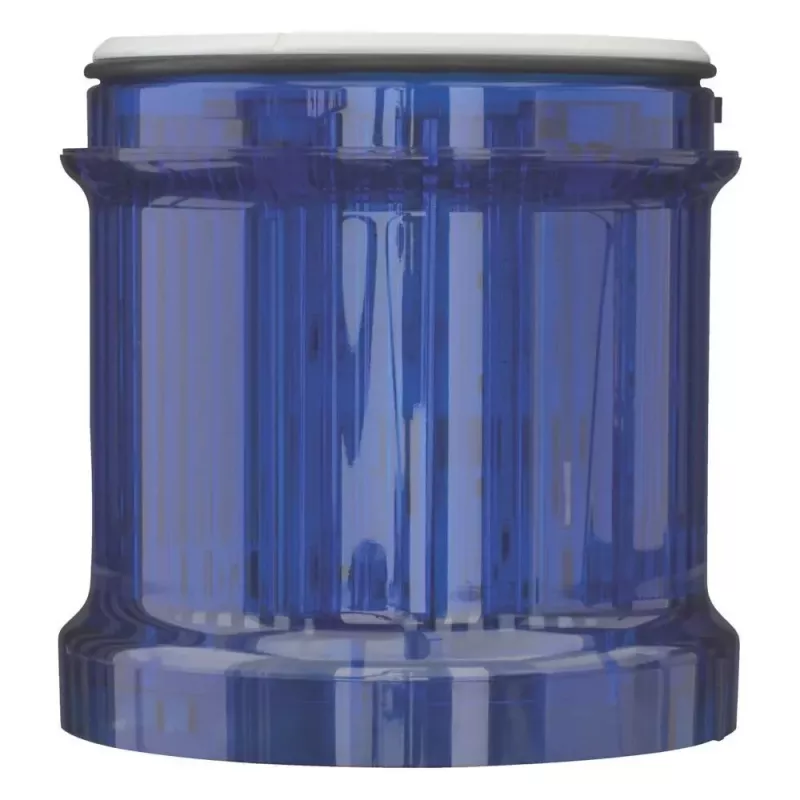

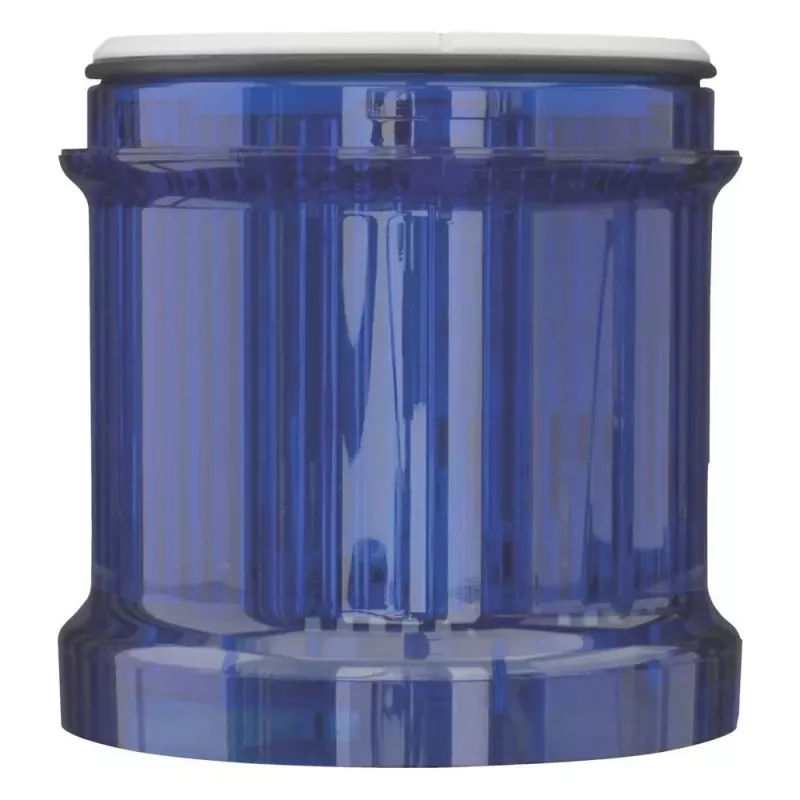

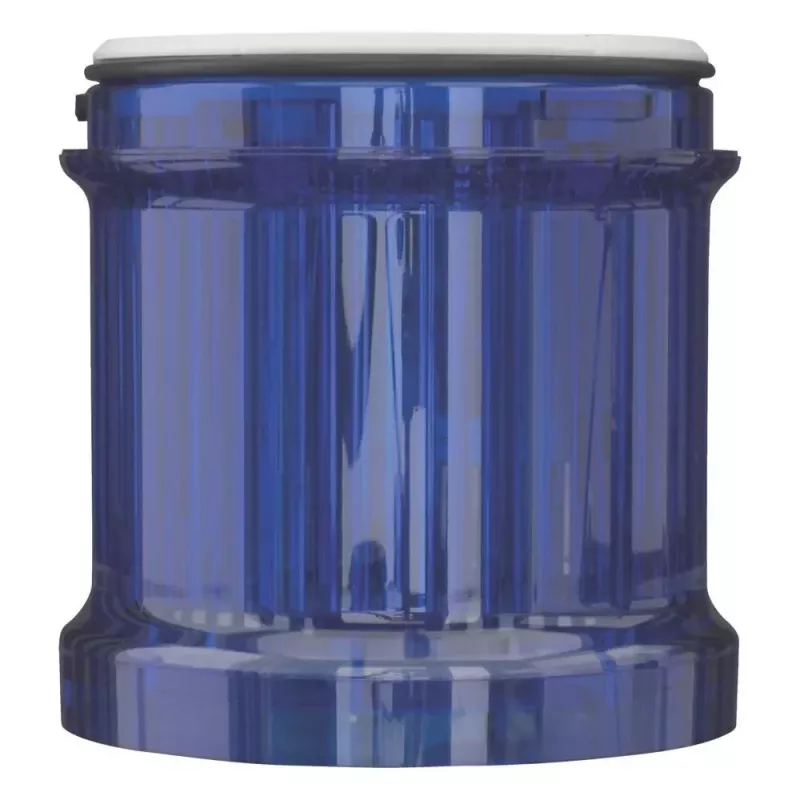

The Eaton SL7-BL24-B is a modular signal tower element that provides a blue flashing light for industrial status indication. Unlike fixed signal towers, this element can be stacked with other SL7 modules to create a custom visual signaling solution. Its LED light source offers long life and low maintenance compared to traditional bulbs.

Highlights

• LED light source with a life expectancy of over 50,000 hours
• Blue flashing light with a flash frequency of approximately 1 Hz
• Operating voltage of 24 V AC/DC with low current consumption of 50 mA
• Modular design allows stacking with other SL7 elements
• Compact 70 mm diameter housing made of polycarbonate

In daily use

This signal element is suitable for machine status indication, process monitoring, and safety alerts in industrial environments. Its plug-in connection simplifies installation and maintenance. The element operates reliably in temperatures from -30°C to +60°C, making it suitable for demanding conditions.

Full specifications

• Product Type: Signal Tower Element
• Series: SL7
• Light Source: LED
• Light Function: Flashing Light
• Light Color: Blue
• Operating Voltage: 24 V AC/DC
• Current Consumption: 50 mA
• Flash Frequency: Approx. 1 Hz (60 flashes/min)
• Diameter: 70 mm
• Housing Material: Polycarbonate (PC)
• Operating Temperature: -30°C to +60°C
• Storage Temperature: -40°C to +70°C
• Mounting Type: Modular, Stackable
• Connection Type: Plug-in

Final note

The SL7 series offers flexibility in building custom signal towers with various light functions and colors.
