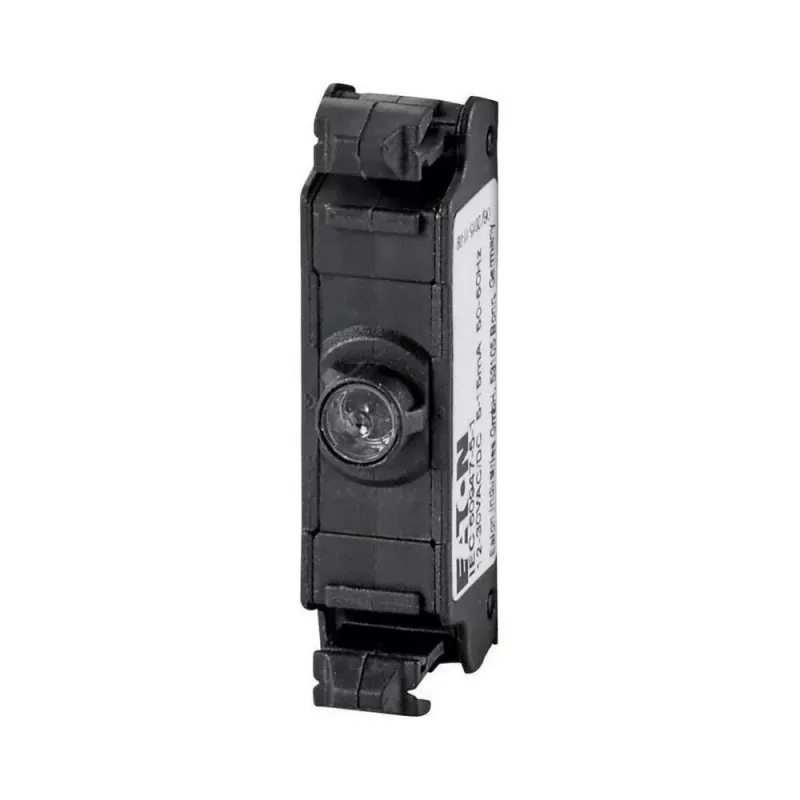

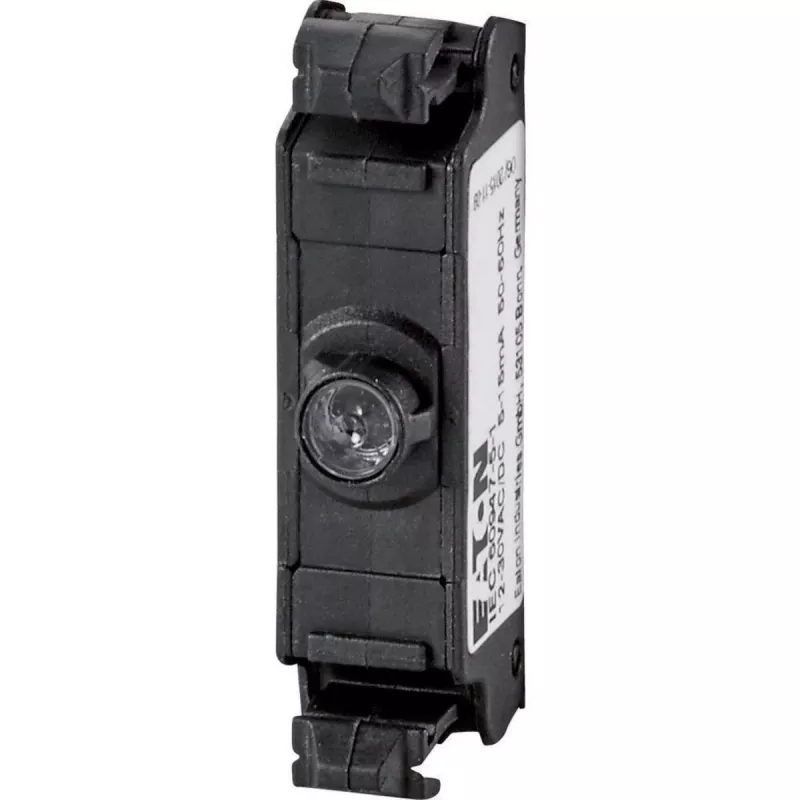

Eaton M22-FLED-G LED prvok, plochý, zelený, 24V AC/DC 180797

Control panel indicators often fail under continuous operation, leading to downtime and maintenance calls. The Eaton M22-FLED-G solves this with a long-life LED element that provides clear green status indication in industrial control circuits.

Who is it for

Panel builders and maintenance engineers who need a reliable, low-maintenance indicator for 22 mm control panels. It suits machine builders, conveyor systems, and process control cabinets where a green signal confirms normal operation.

Main features

• Flat lens design sits flush with the panel front, reducing accidental damage.
• Green LED light source with a lifespan over 100,000 hours, eliminating frequent bulb changes.
• Dual voltage 24V AC/DC input simplifies inventory across different control voltages.
• Screw terminals ensure secure wiring in high-vibration environments.
• Base mounting compatible with Eaton Moeller M22 series accessories.

Specifications

• Light colour: Green
• Light source: LED
• Lens design: Flat
• Operating voltage: 24V AC/DC
• Connection type: Screw terminals
• Mounting type: Base mounting
• Series compatibility: Eaton Moeller M22
• Rated insulation voltage (Ui): 300V AC
• Rated impulse withstand voltage (Uimp): 4 kV
• Degree of protection (terminals): IP20
• Ambient operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Lifespan: >100,000 hours
• Power consumption: < 0.5W

Tips

Pair with an M22 series lens cap and holder for a complete indicator assembly. For 230V circuits, use a separate transformer or choose a different voltage variant.
