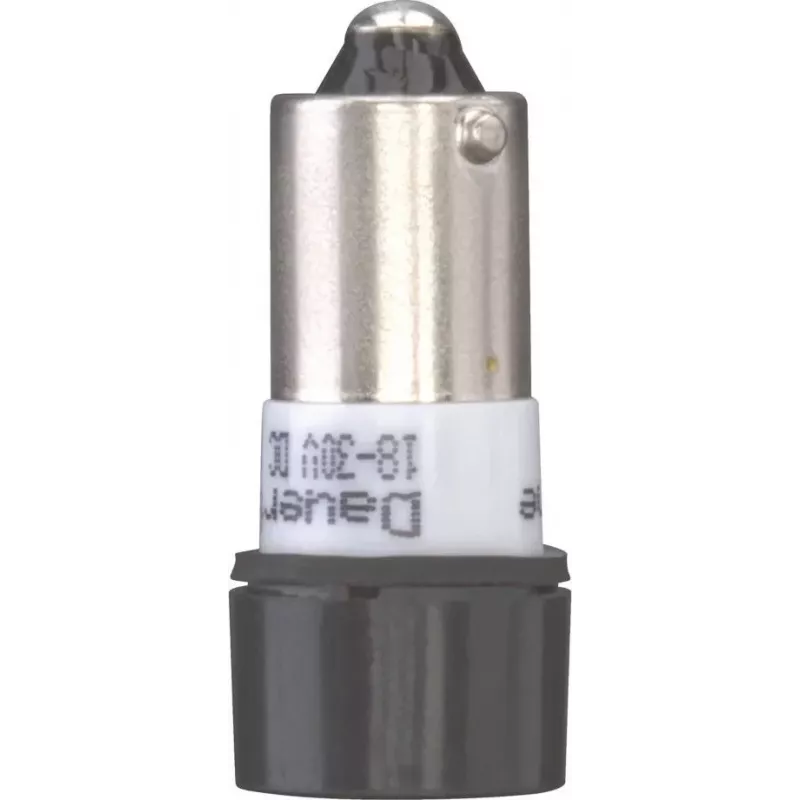

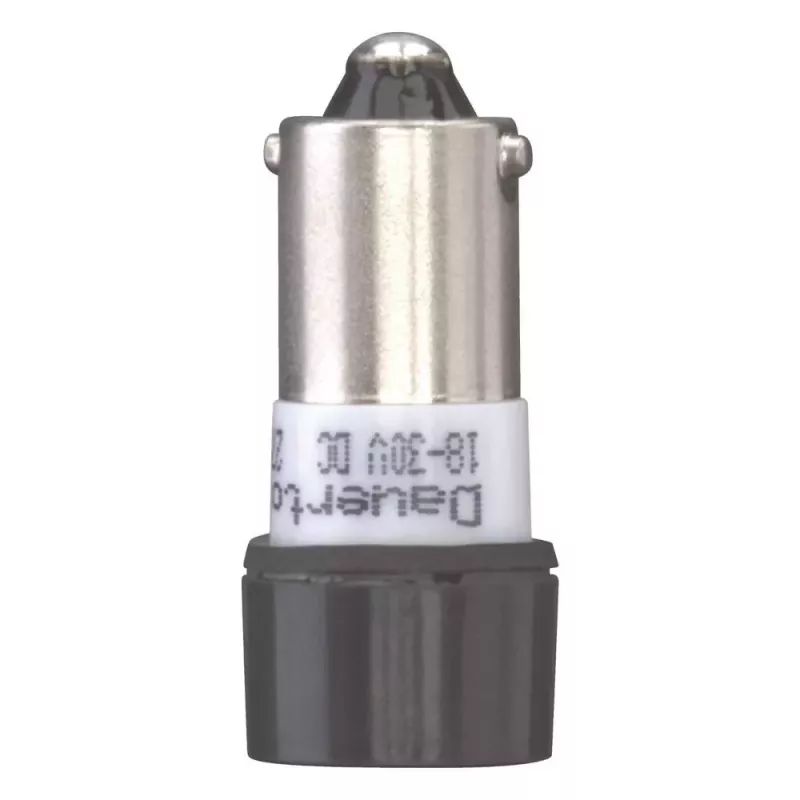

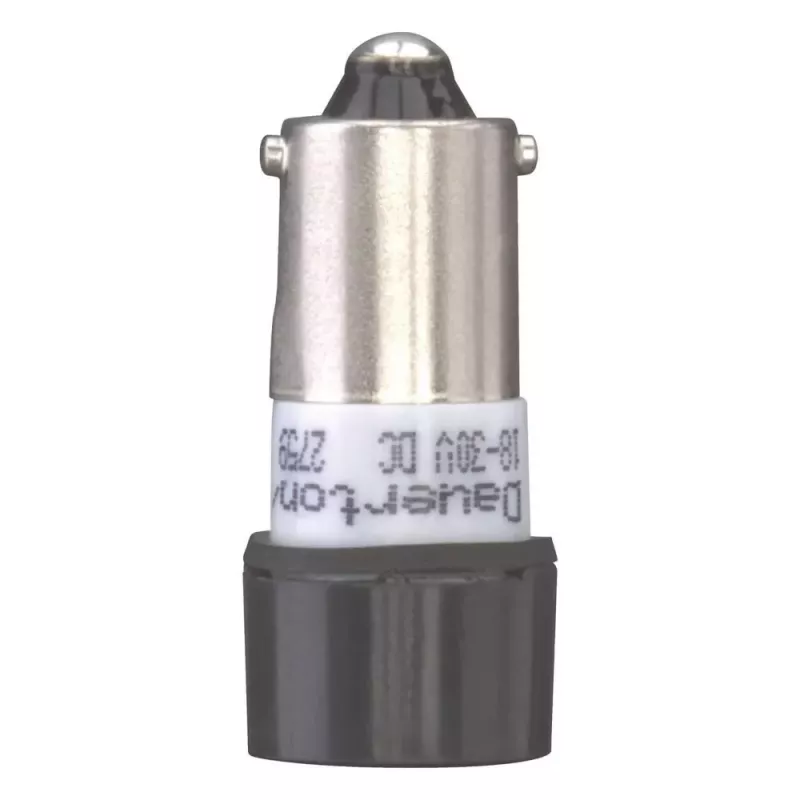

Eaton M22-XAM akustický signalizačný prvok, 18-30 V AC/DC, 83 dB, čierna/strieborná

Audible signal element from the Eaton M22 series, delivering a continuous tone at 2300 Hz with a sound pressure level of 83 dB. Designed for control and signalling applications, it operates on 18-30 V AC/DC and consumes 30 mA.

Advantages

Compact 22.5 mm mounting diameter fits standard panel cut-outs. Front protection rating IP66 ensures reliable operation in demanding environments. Screw terminals provide secure and simple wiring.

Suitable for

• Industrial control panels
• Machine status indication
• Alarm and warning systems

Key specifications

• Operating voltage: 18-30 V AC/DC
• Current consumption: 30 mA
• Sound pressure level: 83 dB
• Tone frequency: 2300 Hz
• Mounting diameter: 22.5 mm
• Connection: screw terminals
• Colour: black / silver

Recommendations

Verify panel cut-out dimensions before installation. For outdoor use, ensure proper sealing of the rear enclosure.
