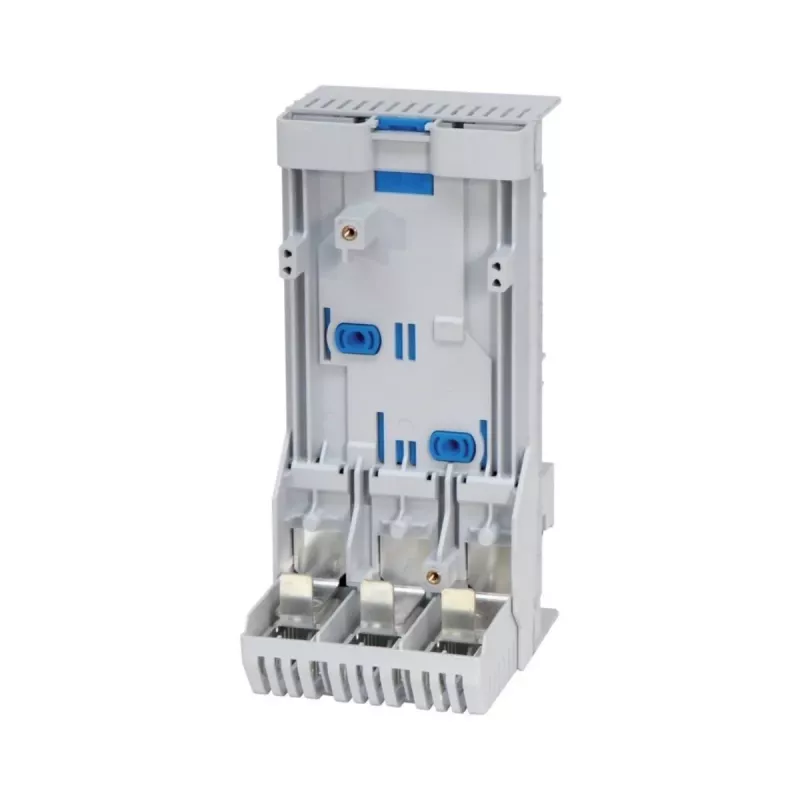

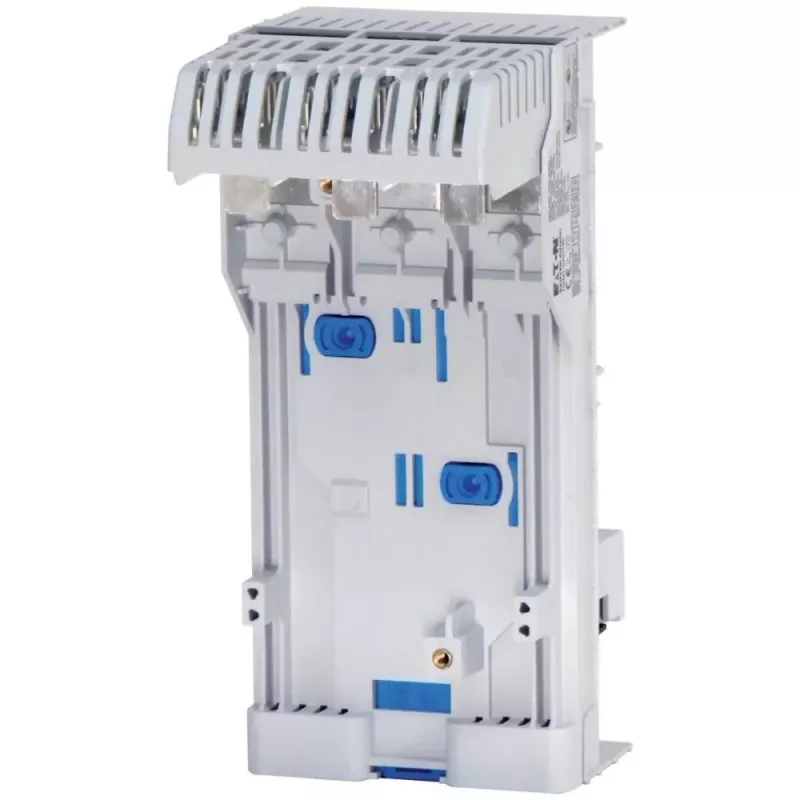

Eaton NZM1-XAD160 adaptér zbernice, 160 A, 690 V, 60 mm systém 104554

Busbar adapter for Eaton NZM1 circuit breakers, rated up to 160 A and 690 V AC. Clips directly onto 60 mm busbar systems for fast, screwless installation.

Advantages

Tool-free clip-on mounting saves time in panel building. Self-extinguishing thermoplastic housing and copper contacts ensure durability in industrial power distribution.

Suitable for

• Industrial switchgear and control panels
• Power distribution systems with 60 mm busbars
• Eaton NZM1 series circuit breakers up to 160 A

Key specifications

• Rated current: 160 A
• Rated operational voltage: 690 V AC
• Busbar system: 60 mm, thickness 5 or 10 mm
• Connection: clip-on to busbar, screw terminal for device
• Operating temperature: -25°C to +70°C

Recommendations

Verify busbar dimensions and breaker compatibility before ordering. For single-pole connections, one adapter per pole is required.
