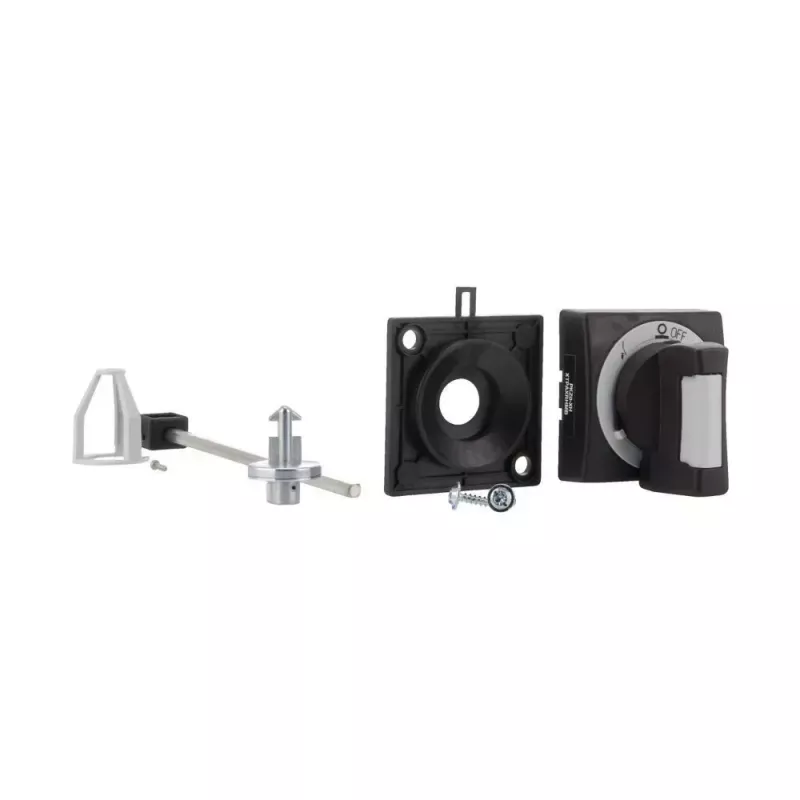

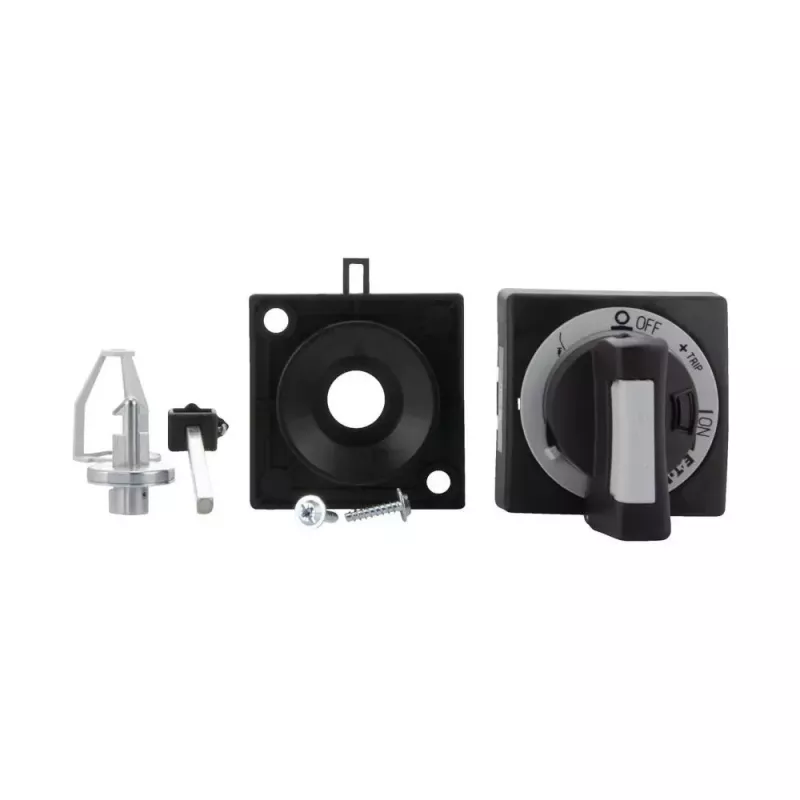

Eaton PKZ0-XH dverová otočná rukoväť, uzamykateľná, 64 x 64 x 54 mm, čierna 106132

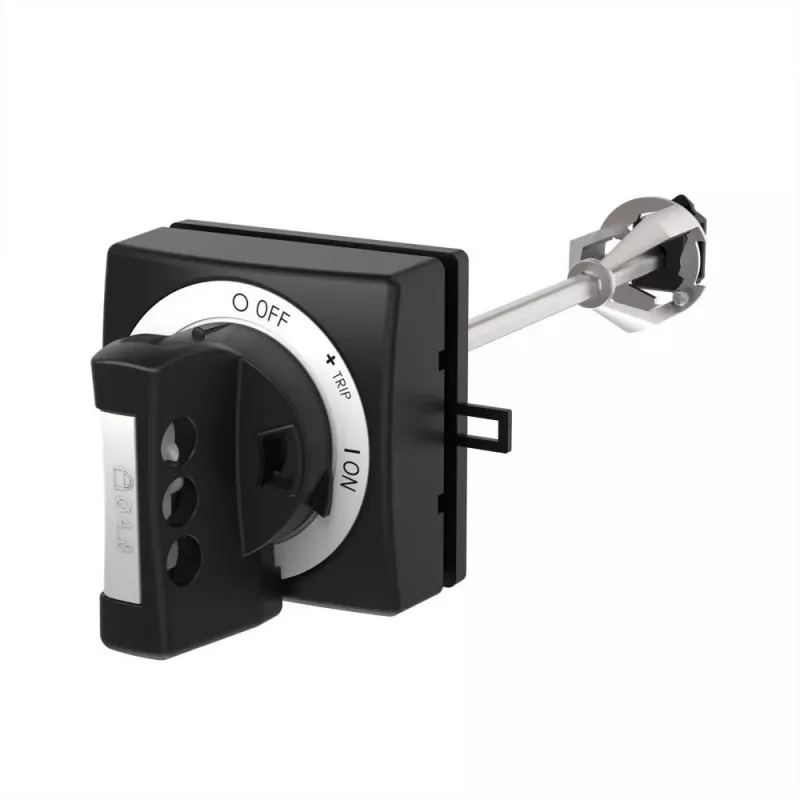

IP65 front protection meets padlockable OFF-position locking in this Eaton door coupling handle for PKZ0 motor-protective circuit breakers. The rotary handle mounts through a 64 x 64 mm front cutout and extends 54 mm behind the door, with space for up to three padlocks (shackle diameter max. 8 mm) to secure the OFF position.

Overview

The Eaton PKZ0-XH is a door coupling handle designed for use with Eaton PKZ0 motor-protective circuit breakers. It allows operation of the breaker from outside an enclosure while providing a lockable OFF position for maintenance safety. The handle is made of insulating plastic and is black.

What stands out

• Padlockable OFF position: up to 3 padlocks with max. 8 mm shackle diameter
• Front protection degree IP65, rear IP20
• Compact front plate: 64 x 64 mm, mounting depth 54 mm
• Compatible with Eaton PKZ0 motor-protective circuit breakers

Technical details

• Product type: door coupling handle
• Compatibility: Eaton PKZ0 motor-protective circuit breakers
• Lockability: yes, padlockable
• Number of padlocks: max. 3
• Padlock shackle diameter: max. 8 mm
• Colour: black
• Mounting type: door mounting
• Degree of protection (front): IP65
• Degree of protection (rear): IP20
• Handle type: rotary handle
• Front plate dimensions (W x H): 64 x 64 mm
• Mounting depth (behind door): 54 mm
• Material: insulating material (plastic)
• Function: main switch, emergency stop (when used with appropriate breaker)
• Operating position lockable: OFF position
• Standards: IEC/EN 60947
• Operating temperature: -25°C to +50°C

Our verdict

A robust, padlockable door coupling handle that brings safe isolation to Eaton PKZ0 breakers in industrial enclosures.
