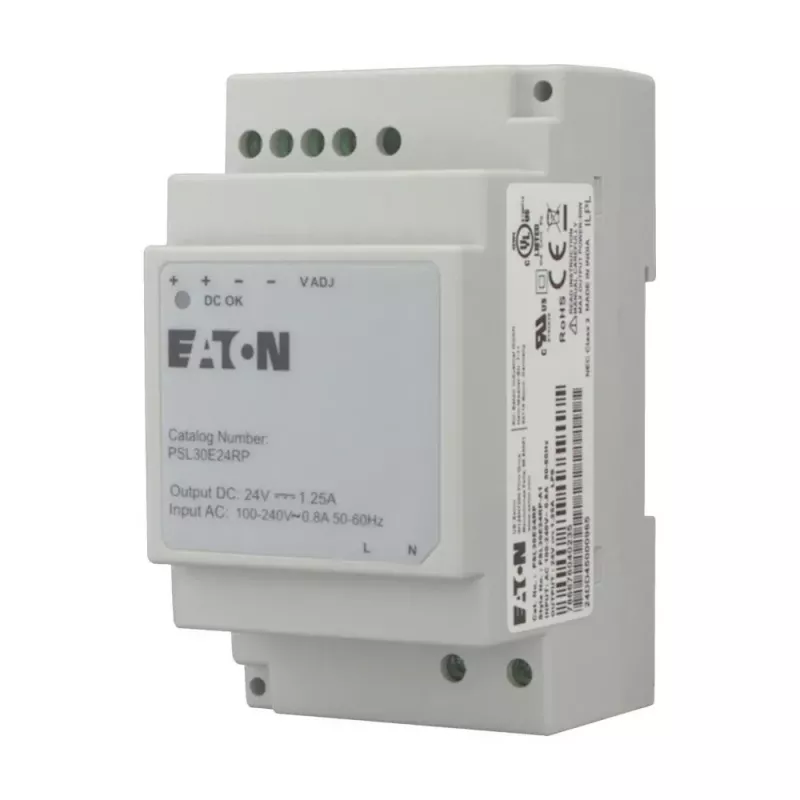

Eaton PSL30E24RP jednofázový spínaný napájací zdroj 30W 24V DC DIN lišta EP-401403

The Eaton PSL30E24RP is a single-phase DIN rail power supply that delivers a stable 24 V DC output from a universal AC input. Its wide input voltage range and high efficiency make it suitable for industrial control panels and automation systems where space is limited.

Highlights

• Output: 30 W at 24 V DC, 1.25 A
• Input: 85–264 V AC, 47–63 Hz, single-phase
• DIN rail mounting (TS-35/7.5 or TS-35/15)
• Efficiency >85% at 230 V AC full load
• Protections: overload, short circuit (hiccup mode), overvoltage
• Operating temperature: -25°C to +70°C
• Ripple and noise: <100 mVpp
• Approvals: CE, UL 508, cUL, TUV, RoHS

In daily use

With screw terminals for input and output, free air convection cooling, and a compact DIN rail form factor, the PSL30E24RP integrates quickly into existing installations. It is rated IP20 and intended for use inside enclosures.

Full specifications

• Power output: 30 W
• Output voltage: 24 V DC
• Output current: 1.25 A
• Input voltage range: 85–264 V AC
• Input frequency: 47–63 Hz
• Number of phases: single-phase
• Mounting type: DIN rail (TS-35/7.5 or TS-35/15)
• Efficiency: >85% at 230 V AC full load
• Protection class: IP20
• Operating temperature: -25°C to +70°C
• Overload protection: yes (105–150% of rated current)
• Short circuit protection: yes (hiccup mode)
• Overvoltage protection: yes (29–33 V)
• Input connection: screw terminals
• Output connection: screw terminals
• Cooling method: free air convection
• Approvals: CE, UL 508, cUL, TUV, RoHS
• Ripple and noise: <100 mVpp

Final note

The PSL30E24RP provides reliable 24 V DC power for industrial applications, with a wide input range and robust protection features.
