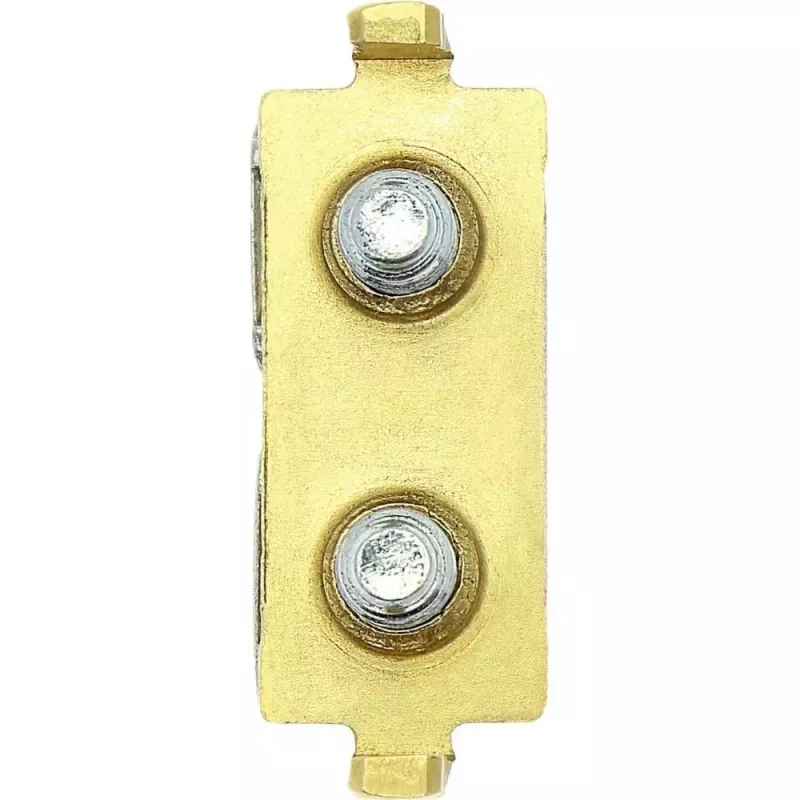

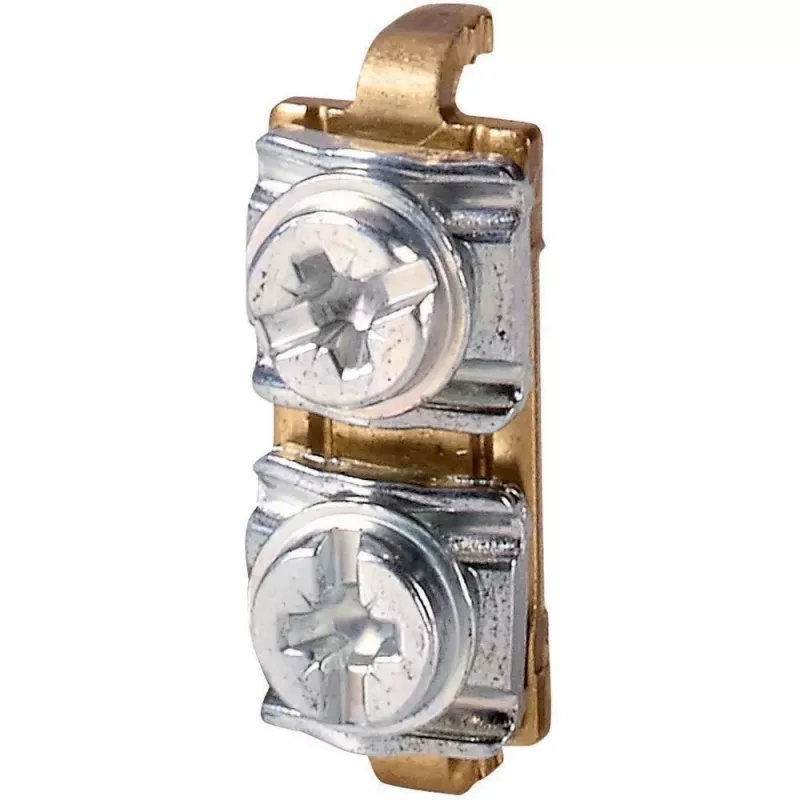

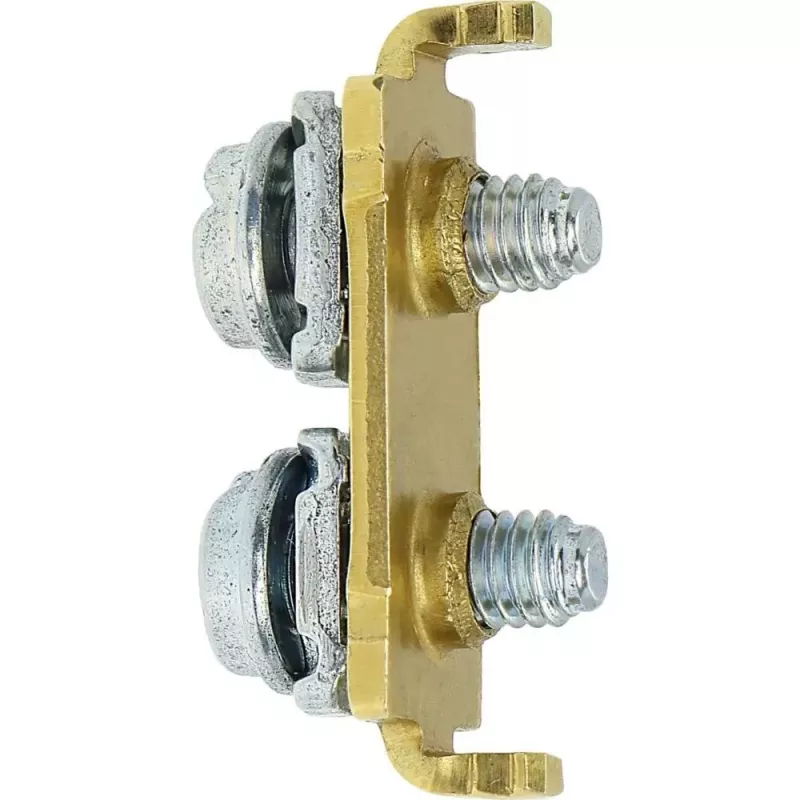

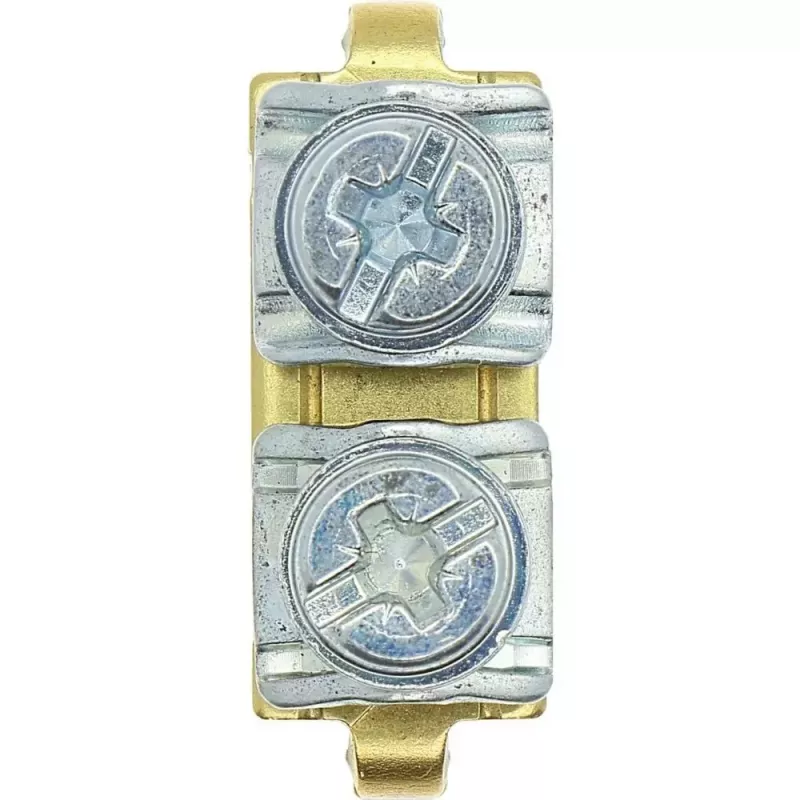

Eaton xPole CI svorka neutrálneho vodiča K-CI-K1/2 (207451)

The Eaton K-CI-K1/2 neutral terminal block stands out as a dedicated neutral distribution solution for xPole CI distribution boards, offering a high current rating of 100 A and 16 connection points. Unlike generic terminal blocks, this unit is engineered specifically for seamless integration into CI enclosures, ensuring reliable neutral conductor management in residential and commercial electrical installations.

Highlights

• Supports 16 conductors: 2 large (2.5–16 mm²) and 14 small (1.5–4 mm²)
• Rated for 100 A and 400 V AC, suitable for demanding AC applications
• Blue polyamide housing provides clear identification and durability
• Integrated mounting into xPole CI distribution boards for a tidy, space-saving setup

In daily use

Installed within an xPole CI distribution board, this neutral terminal block centralizes all neutral connections, reducing wiring complexity and improving safety. Its screw terminals ensure secure, maintenance-free connections, while the robust brass conductors and polyamide insulation withstand the rigors of continuous operation.

Full specifications

• Product type: Neutral terminal block
• Brand series: Eaton xPole CI
• Compatibility: xPole CI distribution boards
• Number of connections: 16
• Large conductor cross-section: 2 x (2.5 - 16 mm²)
• Small conductor cross-section: 14 x (1.5 - 4 mm²)
• Connection method: Screw terminal
• Rated current (In): 100 A
• Rated voltage (Un): 400 V AC
• Number of poles: 1 (neutral)
• Mounting type: Integrated into CI enclosure
• Colour: Blue
• Insulation material: Polyamide (PA)
• Conductor material: Brass
• Application: Neutral conductor distribution
• Suitable for: AC applications

Final note

Designed for electricians and panel builders, the K-CI-K1/2 ensures a professional and code-compliant neutral distribution point within Eaton's xPole CI system.
