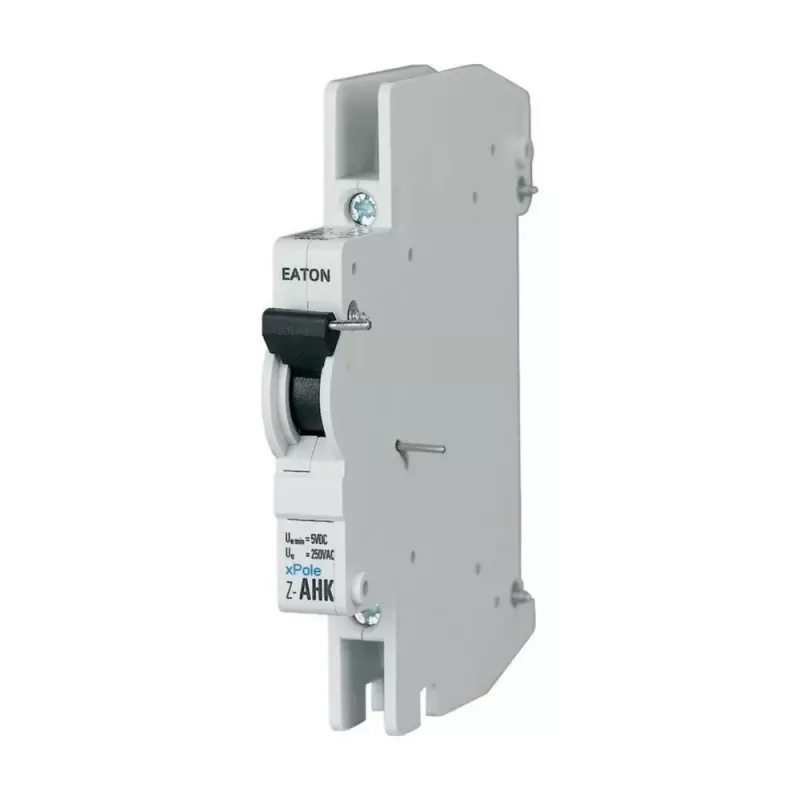

Eaton Z-AHK pomocný kontakt 248433

Auxiliary contact for Eaton xPole series circuit breakers, providing one normally open and one normally closed contact for status signaling and control. Side-mounted on the right side of compatible devices, it offers reliable switching in industrial and commercial applications.

Advantages

Compact 0.5 module width design saves space in distribution boards. Screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm², ensuring secure connections. Rated for AC-15 and DC-13 loads, suitable for a wide range of control circuits.

Suitable for

• Status indication of Eaton xPole circuit breakers (PLHT, PFL, PKN, PFR, Z-P)
• Control and signaling circuits in industrial installations
• Building automation and energy management systems

Key specifications

• Contact configuration: 1 NO + 1 NC
• Rated operational current (AC-15, 230 V): 6 A
• Rated operational current (AC-15, 400 V): 3 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Terminal type: screw terminals
• Wire cross-section: 0.75 - 2.5 mm² (solid and stranded)
• Degree of protection: IP40 (device), IP20 (terminals)
• Operating temperature: -25 to +50 °C
• Standards: IEC/EN 60947-5-1

Recommendations

Mount on the right side of compatible Eaton xPole circuit breakers. Verify contact ratings against the connected load to ensure reliable operation.
