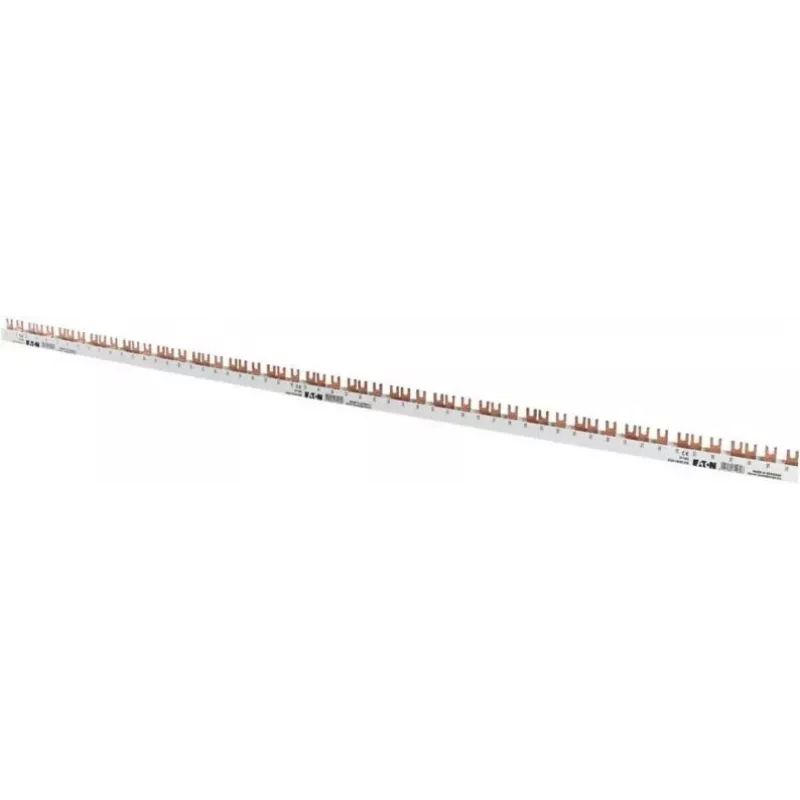

Eaton Z-GV-16/1P-1TE kolíková zbernica 1000 mm 271061

Modular installations often face the challenge of distributing power across multiple DIN rail devices without messy wiring. The Eaton Z-GV-16/1P-1TE pin busbar solves this by providing a clean, fully insulated 1-pole connection for up to 56 modules, ensuring reliable power distribution in distribution boards.

Who is it for

Electricians and panel builders who need a fast, safe, and tidy way to connect miniature circuit breakers (MCBs), residual current devices (RCDs), and other modular devices in residential or commercial electrical installations.

Main features

• 1-pole pin-type busbar with 16 mm² copper conductor, rated for 80 A.
• 1000 mm length supports up to 56 modules (1 TE pitch).
• Fully insulated for touch protection and reduced risk of short circuits.
• Compatible with Eaton xPole series and similar DIN rail mounted devices.
• Grey housing blends with standard distribution equipment.

Specifications

• Number of poles: 1
• Conductor cross-section: 16 mm²
• Length: 1000 mm
• Rated current: 80 A
• Rated voltage: 230/400 V AC
• Module pitch: 1 TE (17.5 mm)
• Conductor material: Copper
• Insulation: Fully insulated
• Number of modules: 56
• Connection method: Pin
• Mounting: For DIN rail mounted devices
• Colour: Grey
• Series: Z-GV
• Operating temperature: -25 to 50 °C

Tips

When installing, ensure the busbar is aligned with the device terminals and cut to the required length using appropriate tools. Always verify that the total load does not exceed the rated current of 80 A.
